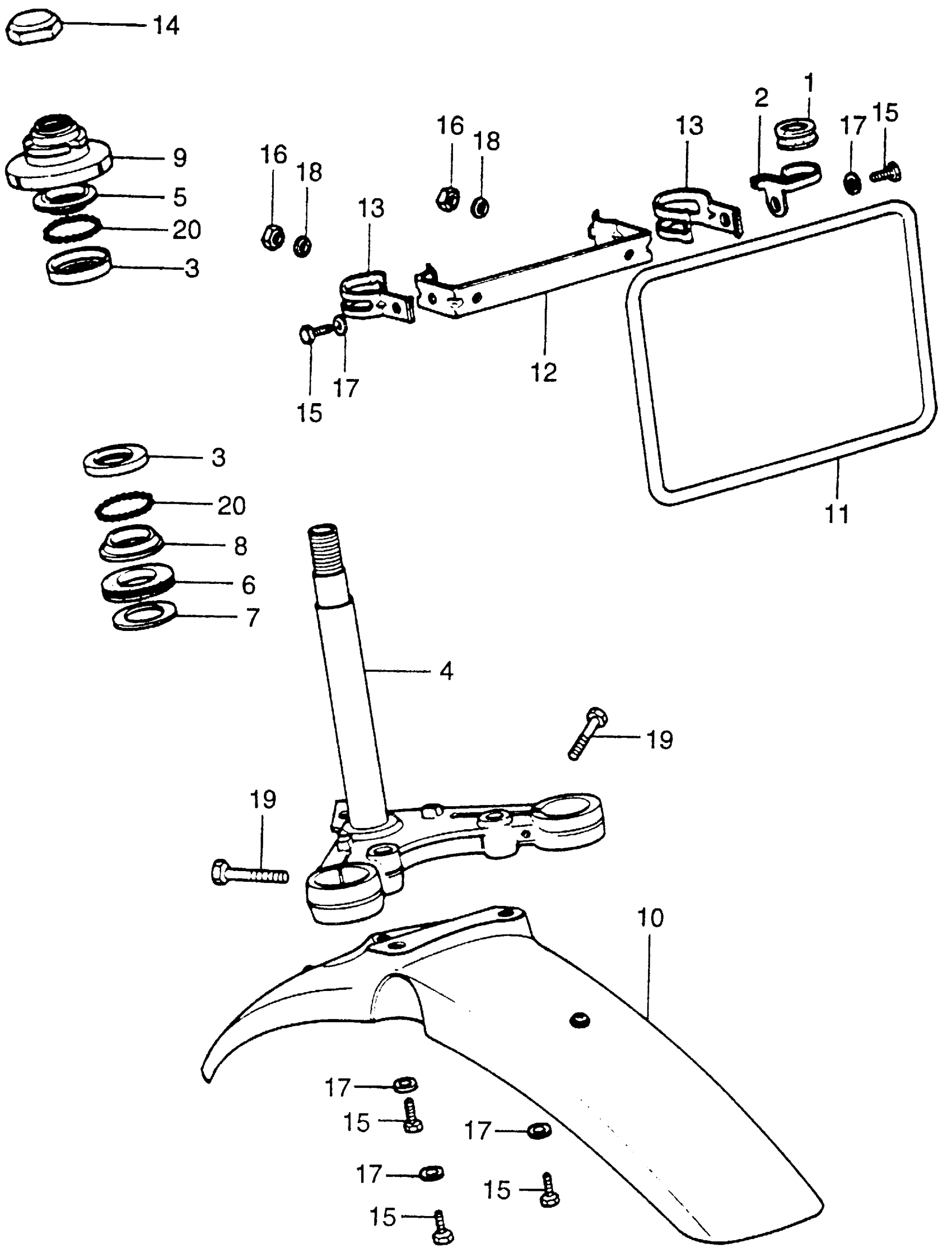

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-329-000

$2.80

2

CLIP A, FR. BRAKE CABLE (NOT AVAILABLE)

45467-116-671

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.13

3

RACE, STEERING TOP BALL

50301-041-010

$11.13

3

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.13

4

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-116-671B

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$9.96

5

RACE, STEERING CONE (UPPER)

53211-028-010

$9.96

5

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$9.96

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.36

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER)

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$9.63

9

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$15.11

9

THREAD, STEERING HEAD TOP

53220-098-670

$15.11

9

THREAD, STEERING HEAD TOP This part replaces 53220-115-000.

53220-098-670

$15.11

10

FENDER, FR. *NH36MS* (LAVA GRAY METALLIC SPECIAL) (NOT AVAILABLE)

61100-116-670QN

Unavailable

11

PLATE, FR. NUMBER *NH1* (BLACK) (NOT AVAILABLE)

64113-116-670B

Unavailable

12

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

64114-116-670B

Unavailable

13

STAY, FR. NUMBER STEERING *NH1* (BLACK) (NOT AVAILABLE)

64115-116-670B

Unavailable

14

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$6.54

14

NUT, STEERING STEM

90304-159-000

$6.54

14

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$6.54

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM)

94001-06200-0S

$1.19

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM)

94101-06800

Unavailable

18

WASHER, SPRING (6MM)

94111-06000

$0.86

19

BOLT, HEX. (8X32) (NOT AVAILABLE) This part replaces 95300-08032.

95300-08032-00

Unavailable

19

BOLT, HEX. (8X32) (NOT AVAILABLE)

95300-08032-00

Unavailable

20

BALL, STEEL (#6) (3/16)

96211-06000

$0.46
