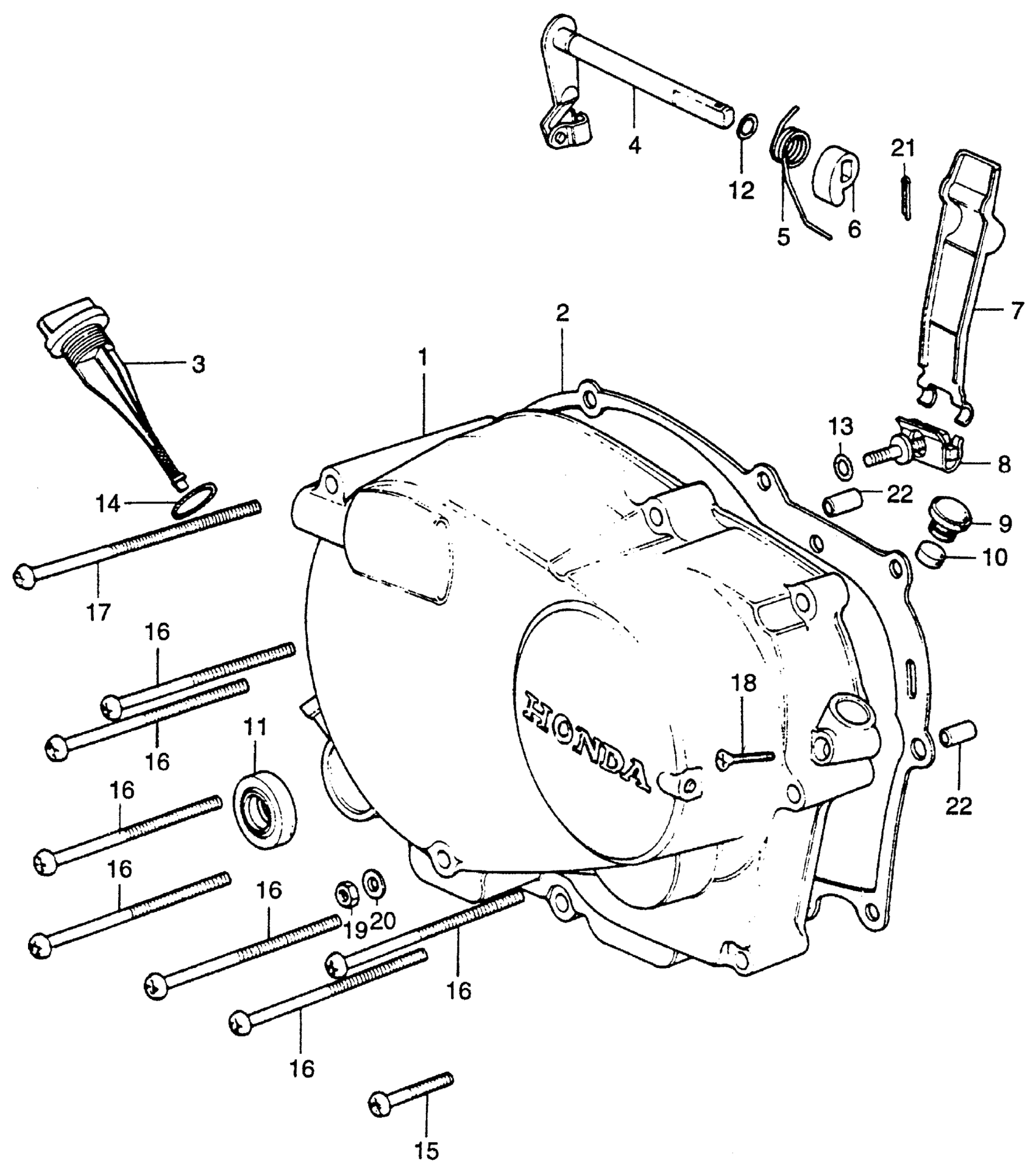

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-116-000

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11393-115-020.

11393-115-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11393-115-306

Unavailable

3

DIPSTICK, OIL This part replaces 15650-086-000.

15650-KA9-680

$7.78

4

LEVER, CLUTCH

22710-115-030

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-107-000

Unavailable

6

CAM, CLUTCH LIFTER

22821-116-000

$7.75

7

LEVER, CLUTCH ADJUSTING (NOT AVAILABLE)

22830-116-000

Unavailable

8

SCREW, CLUTCH ADJUSTING

22831-107-000

Unavailable

9

PLUG A, RUBBER

90801-116-020

Unavailable

9

PLUG A, RUBBER This part replaces 90801-116-030.

90801-116-020

Unavailable

10

PLUG B, RUBBER (NOT AVAILABLE)

90802-116-000

Unavailable

11

OIL SEAL (16X28X7) This part replaces 91204-259-000.

91204-259-003

$5.60

11

OIL SEAL (16X28X7)

91204-259-003

$5.60

12

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

12

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

12

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

13

O-RING (6X2.2)

91301-704-000

$2.92

14

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

14

O-RING (18X3)

91307-035-000

$2.92

15

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

15

SCREW, PAN (6X35)

93500-06035-0A

$1.49

16

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

16

SCREW, PAN (6X80)

93500-06080-0A

$1.49

17

SCREW, PAN (6X90) (SOURCE: VINTAGE PARTS INC.)

93500-06090

Unavailable

18

SCREW, OVAL (5X25)

93700-05025-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

PIN, COTTER (2.0X15)

94201-20150

$1.49

22

PIN A, DOWEL (8X14)

94301-08140

$2.25
