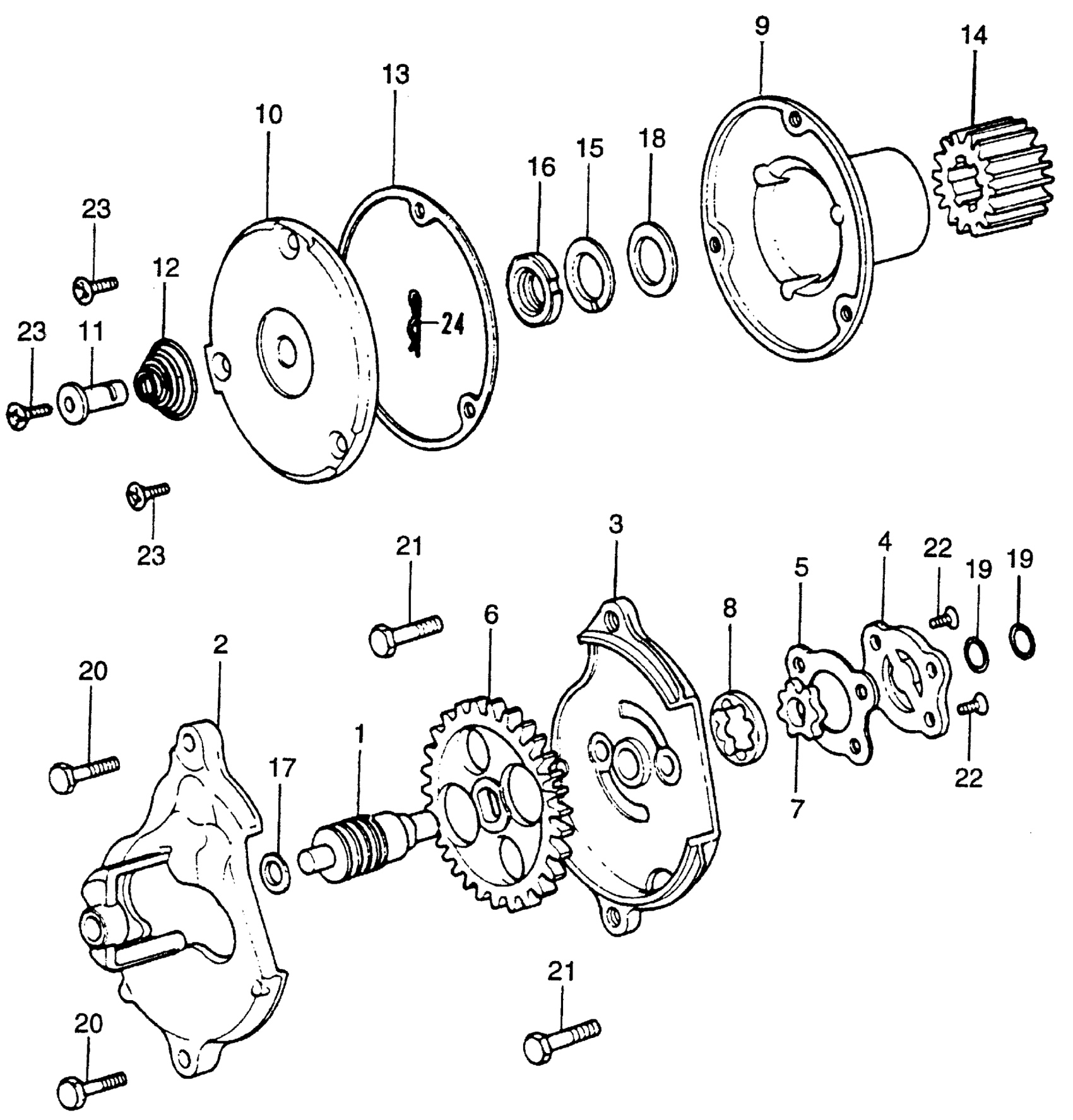

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 OIL FILTER ROTOR + OIL PUMP Diagram

GEAR, TACHOMETER

12421-115-000

Unavailable

COVER, OIL PUMP GEAR (NOT AVAILABLE)

15106-115-000

Unavailable

BODY, OIL PUMP (NOT AVAILABLE) This part replaces 15111-115-020.

15111-149-000

Unavailable

BODY, OIL PUMP (NOT AVAILABLE)

15111-149-000

Unavailable

PLATE, OIL PUMP

15116-107-020

Unavailable

GASKET, OIL PUMP

15126-107-020

$1.70

GEAR, OIL PUMP DRIVE (NOT AVAILABLE)

15131-116-000

Unavailable

ROTOR, OIL PUMP (INNER)

15331-115-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15332-115-000

Unavailable

ROTOR, OIL FILTER (NOT AVAILABLE)

15430-116-000

Unavailable

CAP, OIL FILTER ROTOR

15436-107-000

$39.51

THROUGH, OIL

15441-KCS-650

$6.77

THROUGH, OIL This part replaces 15441-107-000.

15441-KCS-650

$6.77

SPRING, OIL THROUGH

15446-107-000

$4.11

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.56

GSKT, OIL FILTER CAP This part replaces 15459-107-000.

15459-K70-630

$3.56

GSKT, OIL FILTER CAP This part replaces 15459-107-306.

15459-K70-630

$3.56

GEAR, PRIMARY DRIVE (18T) (NOT AVAILABLE)

23121-116-010

Unavailable

WASHER, LOCK

90033-115-000

Unavailable

NUT, LOCK (14MM)

90231-KY4-900

$4.22

NUT, LOCK (14MM) This part replaces 90231-041-000.

90231-KY4-900

$4.22

WASHER (8MM) (NOT AVAILABLE)

90443-844-000

$1.49

WASHER (14.2MM)

90451-115-000

$2.92

O-RING (9.4X2.4)

91304-KK3-830

$2.31

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

BOLT, HEX. (5X18) This part replaces 92000-05018-0A.

92101-05018-0A

$1.49

BOLT, HEX. (5X18)

92101-05018-0A

$1.49

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

SCREW, FLAT (4X12)

93600-04012-0A

$1.49

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49
