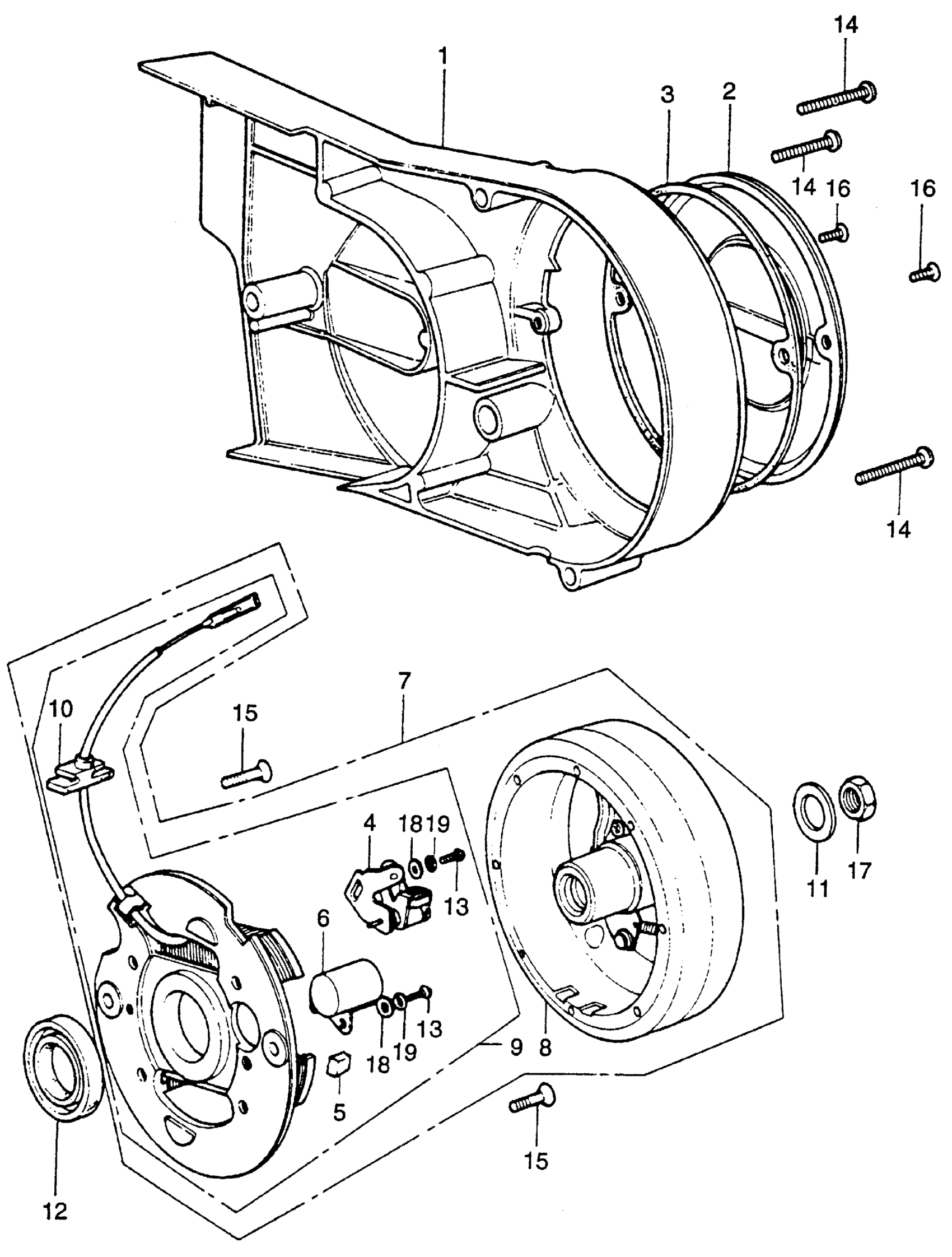

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 LEFT CRANKCASE COVER + GENERATOR Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-116-000

Unavailable

COVER, ALTERNATOR

11431-116-000

Unavailable

GASKET, DYNAMO COVER This part replaces 11432-086-000.

11432-086-306

Unavailable

POINTS (HITACHI)

30202-041-015

$29.26

FELT, OIL (HITACHI)

30205-041-005

$3.83

CONDENSER (HITACHI)

30250-041-005

$24.74

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-116-005

Unavailable

FLYWHEEL (HITACHI) (NOT AVAILABLE)

31121-116-005

Unavailable

STATOR ASSY. (HITACHI) (NOT AVAILABLE)

31141-116-005

Unavailable

GROMMET, ALTERNATOR WIRE (NOT AVAILABLE)

32971-116-000

Unavailable

WASHER, MAGNET FIXING

90426-035-000

$2.57

OIL SEAL (19X36X7)

91202-115-015

$7.32

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49
