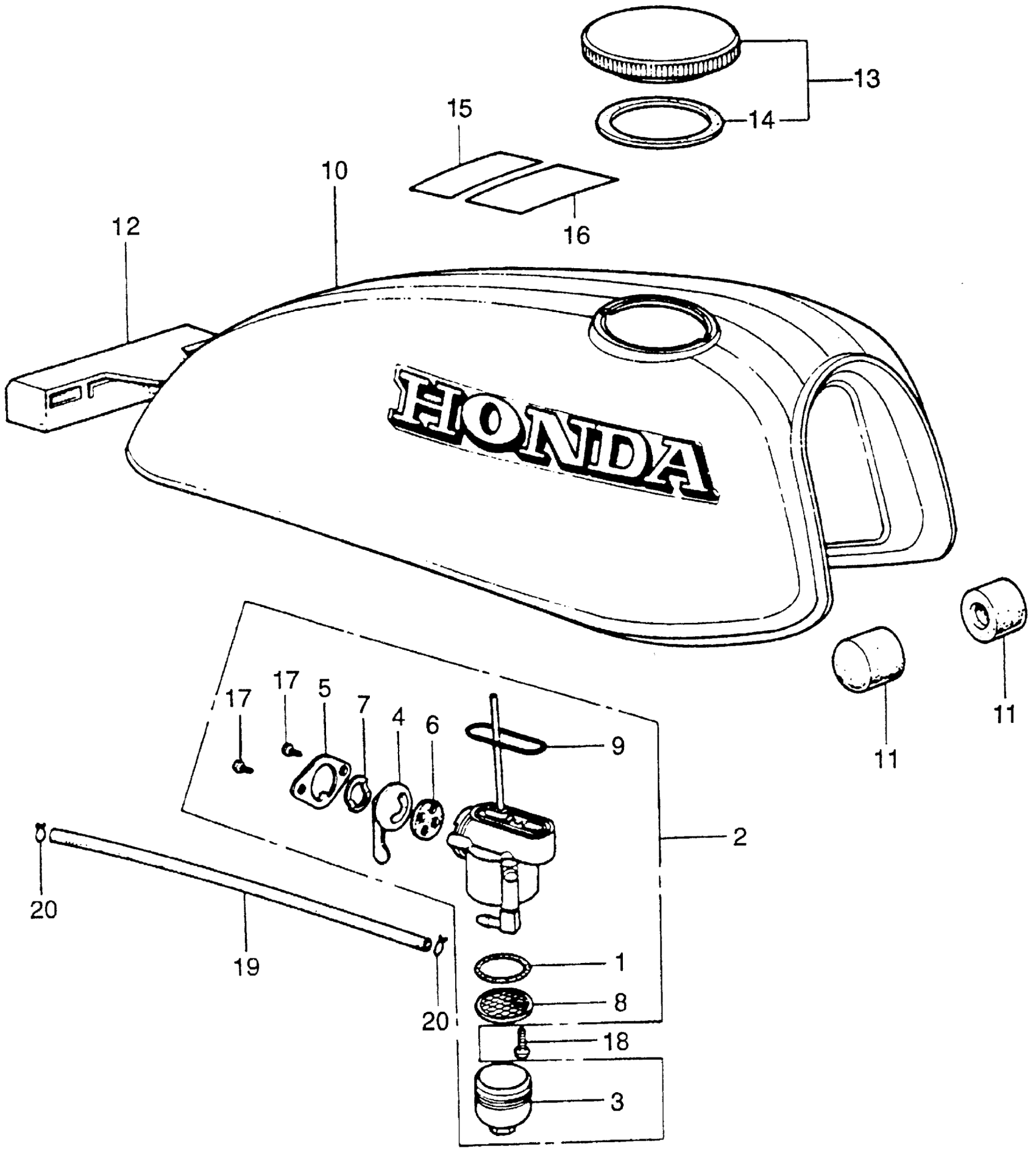

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 FUEL TANK Diagram

#

Description
Price

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$20.32

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.93

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.47

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.47

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.47

2

PETCOCK ASSY. (NOT AVAILABLE)

16950-116-671

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

4

LEVER, VALVE (NOT AVAILABLE)

16953-011-000

Unavailable

5

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

6

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

Unavailable

6

GASKET, VALVE

16957-ZE1-812

Unavailable

7

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.06

7

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.06

7

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.06

7

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.06

8

SCREEN, FUEL STRAINER

16957-028-000

$14.91

9

GASKET, PETCOCK BODY

16997-273-006

Unavailable

10

TANK ASSY., FUEL *NH36MS* (LAVA GRAY METALLIC SPECIAL) (NOT AVAILABLE)

17500-116-670QN

Unavailable

11

RUBBER, FR. FUEL TANK

17611-303-000

$7.28

12

RUBBER, RR. FUEL TANK

17613-051-010

$9.00

13

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

Unavailable

14

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

Unavailable

14

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

Unavailable

14

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

Unavailable

15

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 87504-045-020B.

87504-045-020S

Unavailable

15

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

87504-045-020S

Unavailable

16

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.62

16

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.62

17

SCREW, PAN (3X6)

93500-03006-0A

$0.84

18

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.06

18

SCREW, PAN (6X16)

93500-06016-0A

$1.06

19

BULK HOSE, FUEL (4.5X3000) (4.5X240)

95001-45003-60M

$36.73

20

CLIP, TUBE (B8)

95002-02080

$1.62
