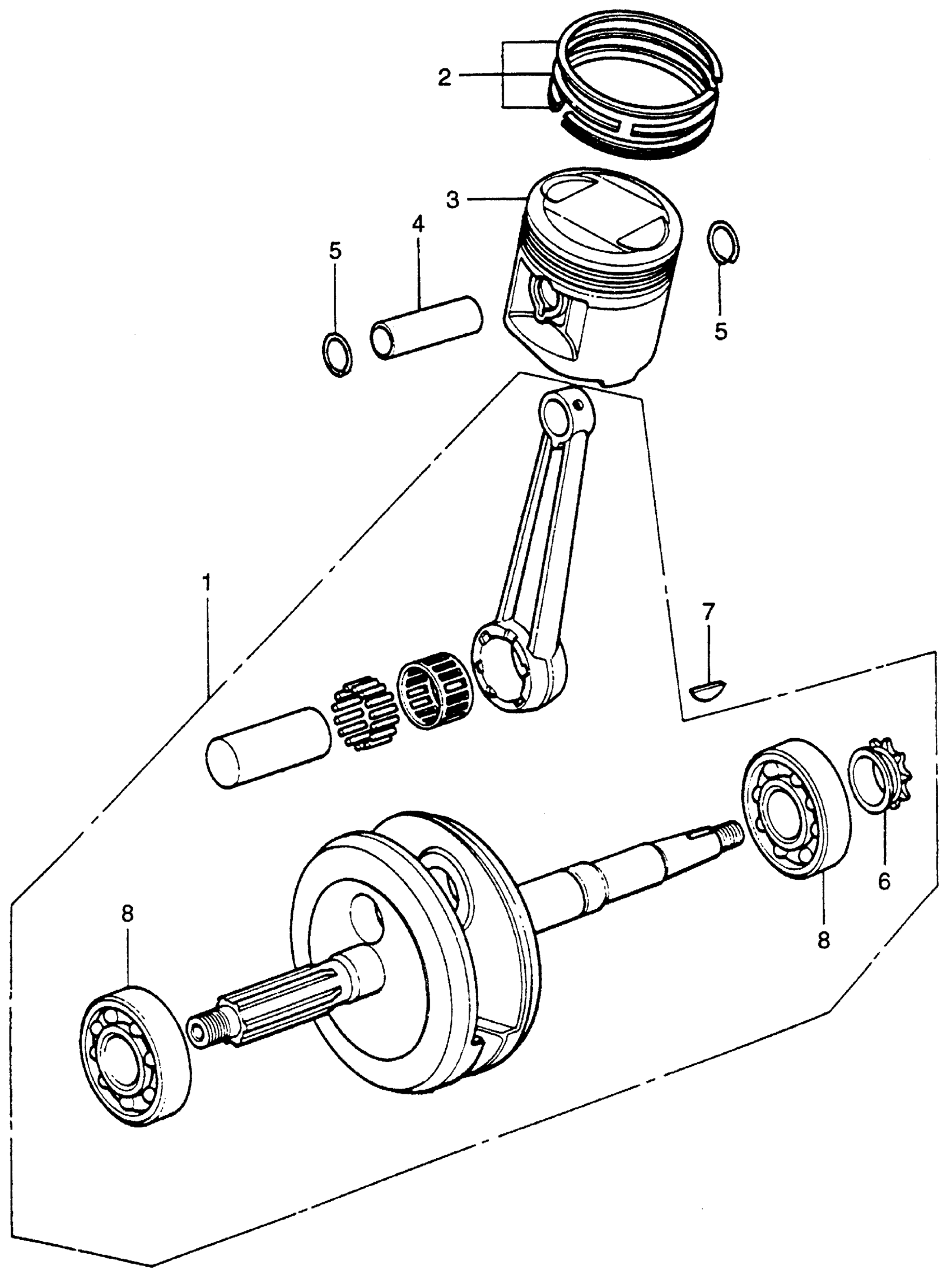

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-116-030

Unavailable

2

RING SET, PISTON (STD)

13011-HB2-305

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-098-772.

13011-HB2-305

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-116-004.

13011-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-HB2-305

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

13014-HB2-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13015-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-098-773.

13012-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-116-004.

13012-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-098-773.

13013-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-116-004.

13013-HB2-305

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13041-116-004.

13014-HB2-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13051-116-004.

13015-HB2-305

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-116-010

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-116-010

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-116-010

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-116-010

$36.31

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-116-010

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

SPROCKET, TIMING (14T)

14311-035-000

$19.28

6

SPROCKET, TIMING (14T) This part replaces 14311-116-000.

14311-035-000

$19.28

7

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

8

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

8

BEARING, RADIAL BALL (63/22) This part replaces 91001-116-008.

91002-KY4-901

$24.38

8

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$24.38

8

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38
