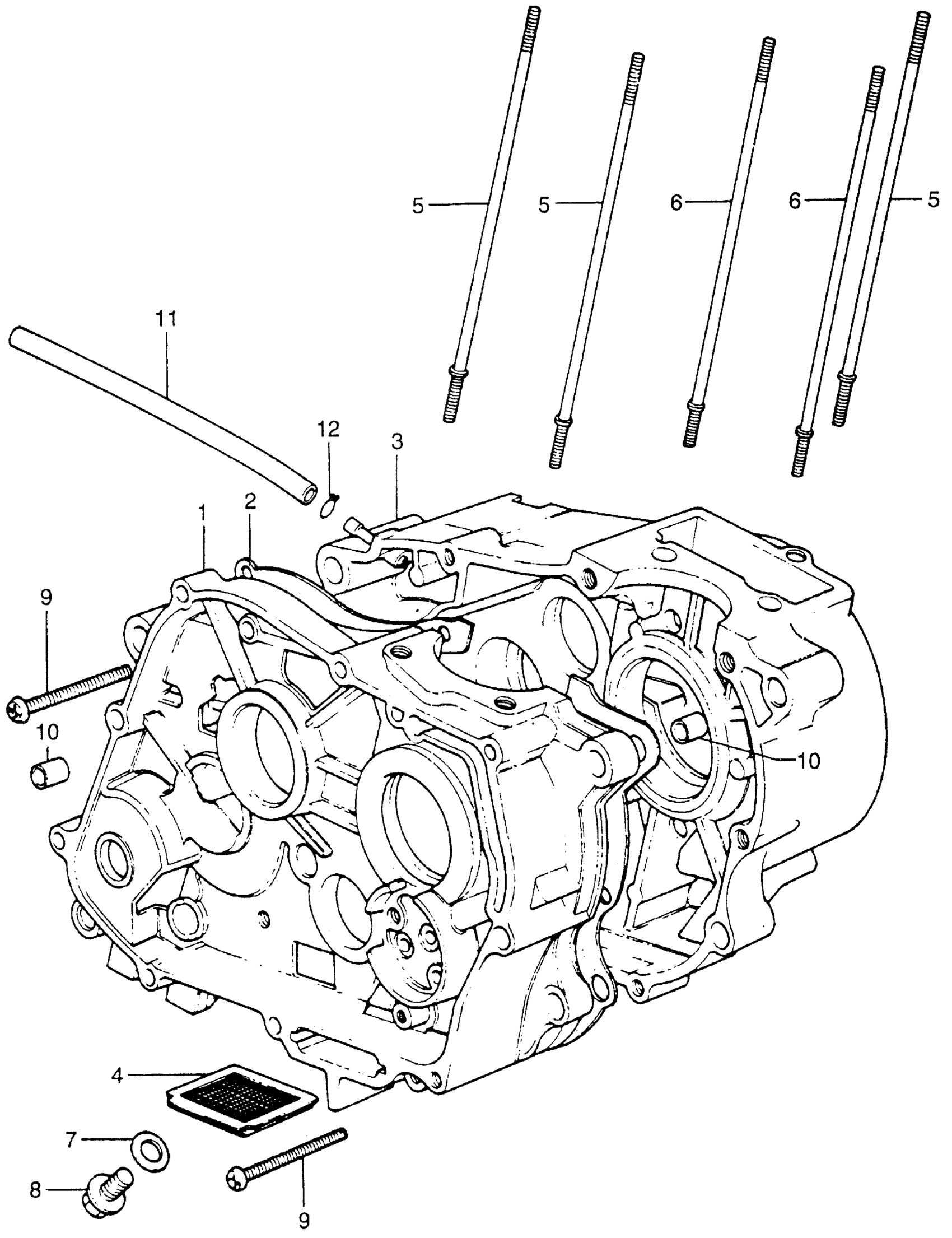

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-116-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-115-020.

11191-115-306

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-116-000

Unavailable

4

SCREEN, OIL FILTER

15421-035-010

$3.80

5

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90031-116-000

Unavailable

6

BOLT B, CYLINDER STUD

90032-035-000

$5.46

7

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

7

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

7

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

8

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

9

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

9

SCREW, PAN (6X45)

93500-06045-0A

$1.49

10

PIN A, DOWEL (12X20)

94301-12200

$2.29

11

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

11

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

11

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

11

TUBE (5.5X350) This part replaces 95001-50180.

95001-55000-40

Unavailable

11

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

12

CLIP, TUBE (C9)

95002-50000

$1.49
