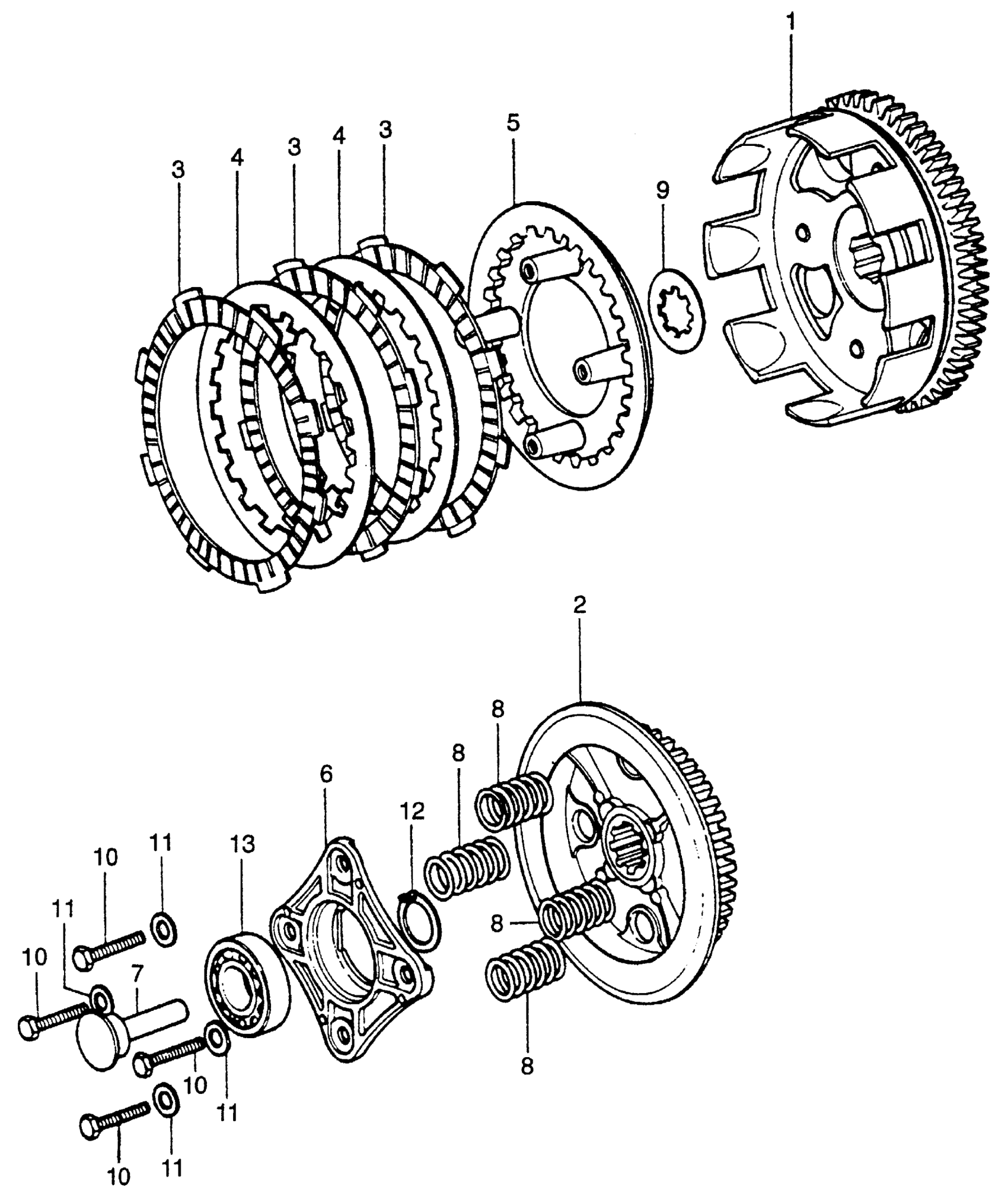

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (69T) (NOT AVAILABLE)

22100-116-000

Unavailable

2

CENTER, CLUTCH

22121-115-010

$61.77

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION

22201-166-000

$15.68

4

PLATE, CLUTCH

22311-KN4-680

$5.88

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$5.88

5

PLATE, CLUTCH PRESSURE

22350-115-020

$36.40

6

PLATE, CLUTCH LIFTER

22361-107-000

$15.76

7

PIN, CLUTCH LIFTER GUIDE

22366-115-000

$28.68

8

SPRING, CLUTCH

22401-116-000

Unavailable

9

WASHER B, SPLINE (17MM)

90462-115-010

$4.96

10

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

10

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

11

WASHER, PLAIN (6MM)

94101-06800

Unavailable

12

CIRCLIP (OUTER) (17MM)

94510-17000

$1.10

13

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$7.14

13

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14
