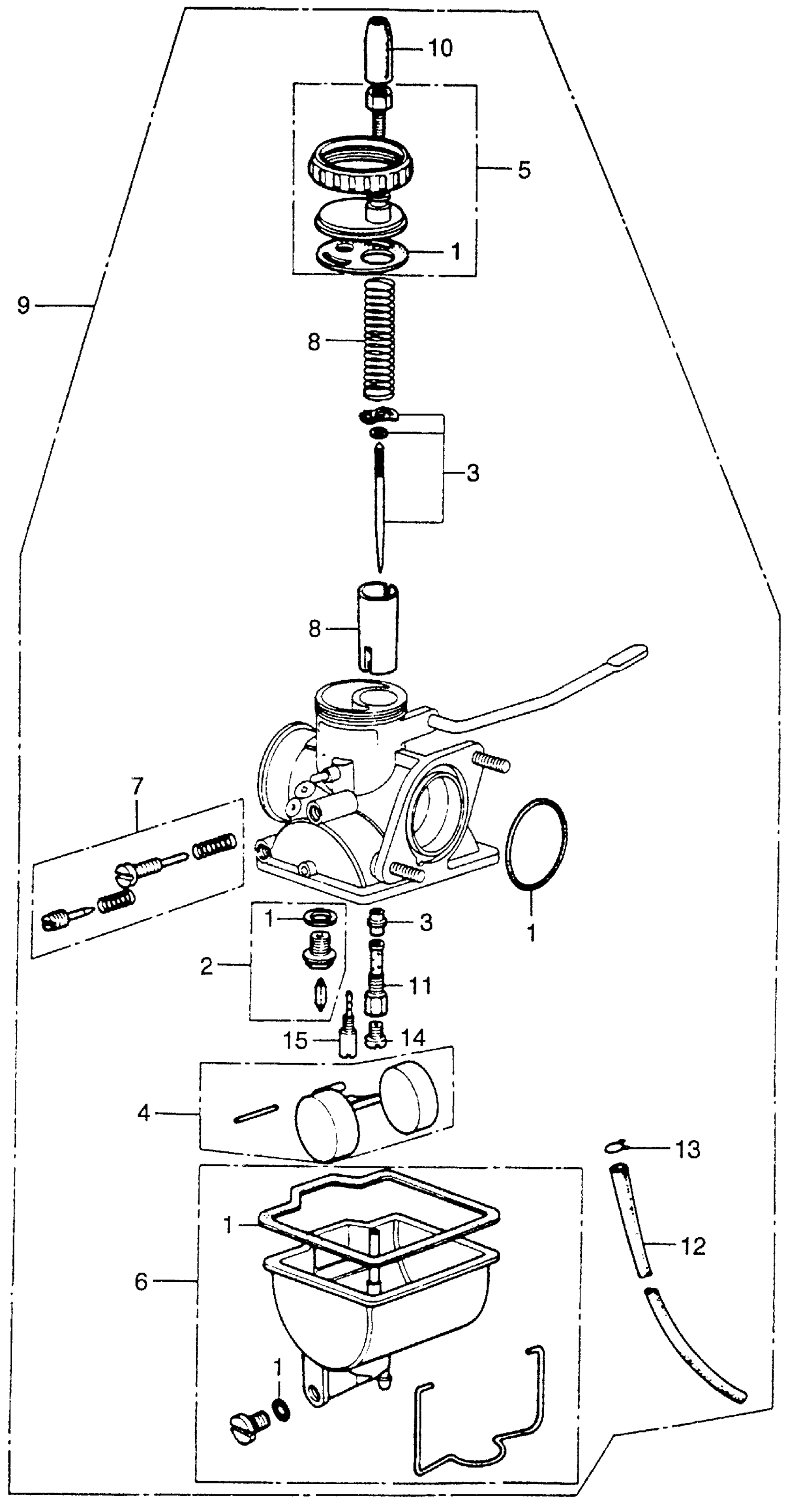

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-107-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-116-004.

16011-866-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-116-014.

16011-866-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-812-004.

16011-866-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-812-014.

16011-866-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-862-004.

16011-866-004

Unavailable

2

VALVE SET, FLOAT

16011-866-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-116-004

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

4

FLOAT SET

16013-116-700

$28.61

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

5

TOP SET

16014-116-700

Unavailable

5

TOP SET This part replaces 16014-116-704.

16014-116-700

Unavailable

5

TOP SET This part replaces 16014-306-004.

16014-116-700

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-028-004

Unavailable

7

SCREW SET A

16016-046-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-107-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-116-004

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

10

CAP, CABLE SEALING

16118-166-004

$8.08

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-116-004

Unavailable

12

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

13

CLIP, TUBE (B7)

95002-02070

$1.80

14

JET, MAIN (#100)

99114-246-1000

Unavailable

15

JET, SLOW (#38) (NOT AVAILABLE)

99124-089-0380

Unavailable

15

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99124-223-0380.

99124-089-0380

Unavailable

15

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99139-03804.

99124-089-0380

Unavailable
