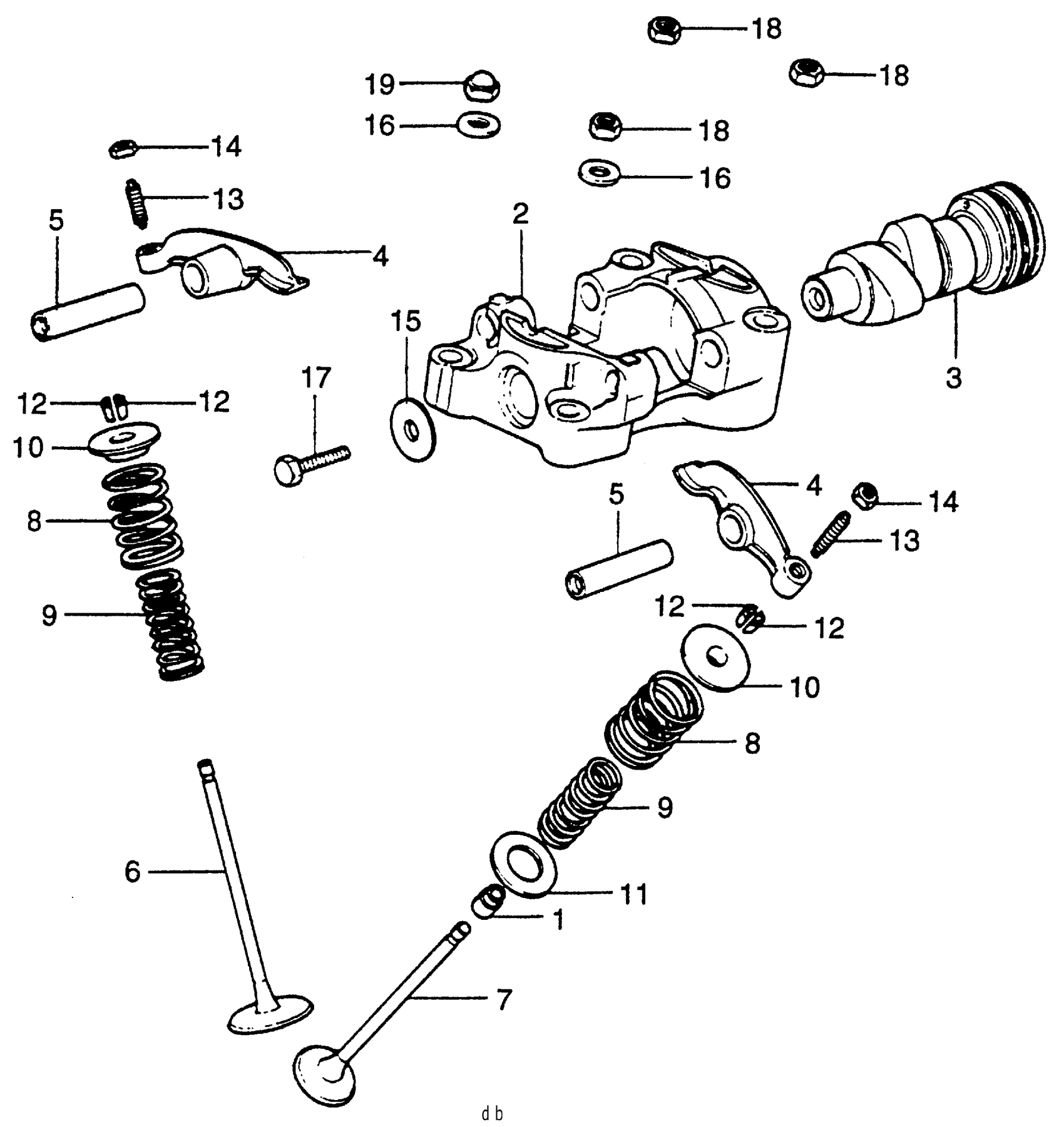

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 CAMSHAFT + VAVLE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI) This part replaces 12209-107-760.

12208-413-003

$11.37

2

HOLDER, CAMSHAFT (NOT AVAILABLE)

12210-116-000

Unavailable

3

CAMSHAFT (NOT AVAILABLE)

14101-116-000

Unavailable

4

ARM, VALVE ROCKER This part replaces 14431-116-000.

14431-116-010

$41.58

4

ARM, VALVE ROCKER

14431-116-010

$41.58

5

SHAFT, VALVE ROCKER ARM

14451-035-000

$8.80

6

VALVE, IN.

14711-116-000

Unavailable

7

VALVE, EX. This part replaces 14721-116-000.

14721-176-000

$77.90

7

VALVE, EX.

14721-176-000

$77.90

8

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-115-020

Unavailable

9

SPRING, VALVE (INNER)

14761-115-010

$4.85

10

RETAINER, VALVE SPRING

14771-107-020

$7.99

11

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

12

COTTER, VALVE (SANKO)

14781-107-003

$2.55

12

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

13

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

13

SCREW, TAPPET ADJ.

90012-333-000

$2.75

14

NUT, TAPPET ADJ.

90206-001-000

$1.66

15

WASHER, CAMSHAFT SIDE

90417-115-000

$2.84

16

WASHER (6MM) (NOT AVAILABLE)

90443-115-000

Unavailable

17

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

19

NUT, CAP (6MM)

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73
