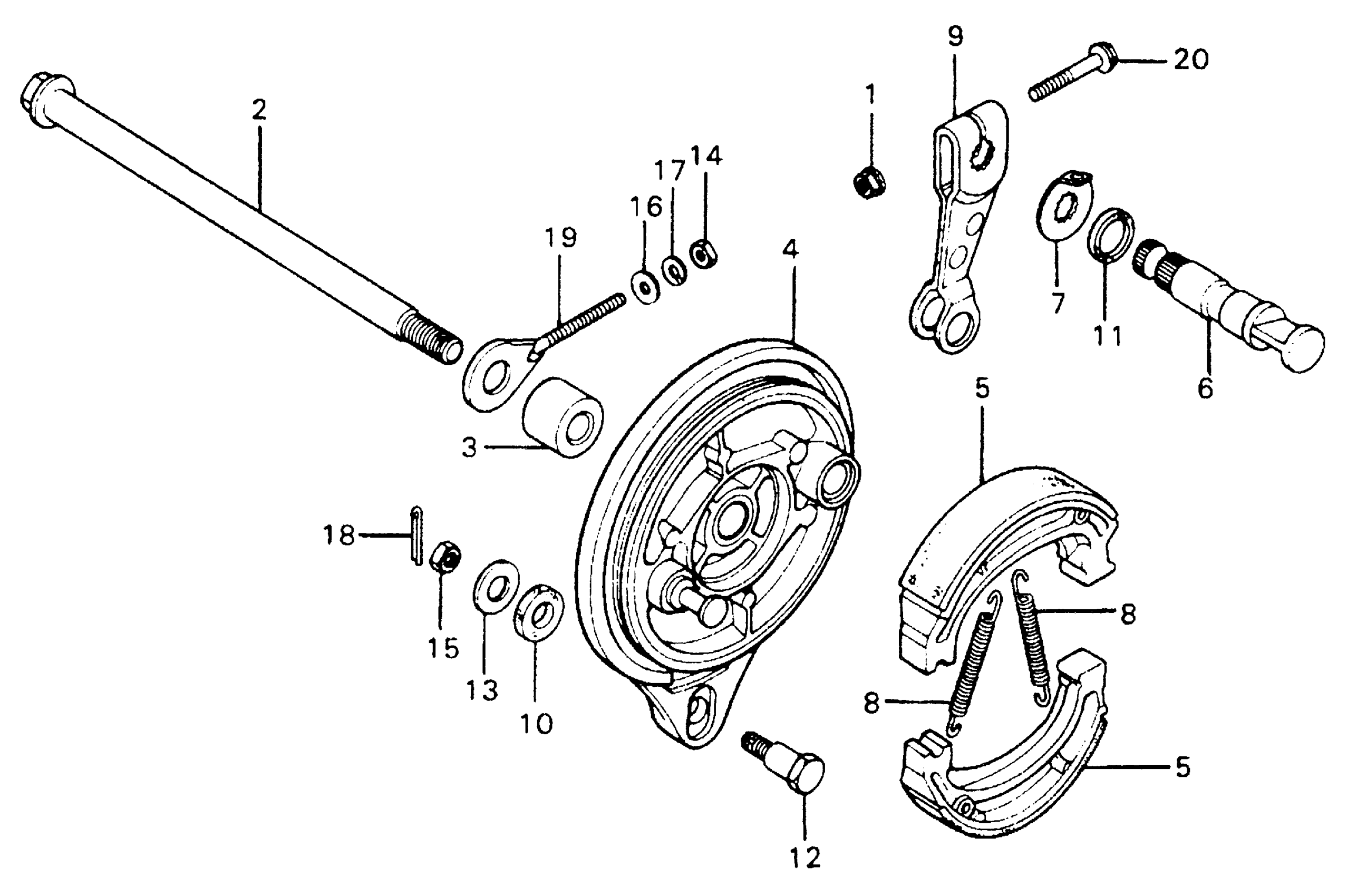

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047 This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047 This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047 This part replaces 451A2-096-305.

06450-178-932

$24.89

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

AXLE, RR. WHEEL This part replaces 42301-041-030.

42301-121-760

Unavailable

2

AXLE, RR. WHEEL

42301-121-760

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-149-000

Unavailable

4

PANEL, RR. BRAKE *A01* (MAT BLACK) (NOT AVAILABLE)

43100-153-600ZA

Unavailable

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

6

CAM, RR. BRAKE This part replaces 43141-400-000.

43141-400-010

$23.52

6

CAM, RR. BRAKE

43141-400-010

$23.52

7

INDICATOR, RR. BRAKE

43145-149-000

Unavailable

8

SPRING, BRAKE SHOE

43151-110-000

$2.92

9

ARM, RR. BRAKE

43410-086-720

Unavailable

9

ARM, RR. BRAKE This part replaces 43410-149-000.

43410-086-720

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

PIN, COTTER (2.0X15)

94201-20150

$1.49

19

ADJUSTER S, R. CHAIN

95014-10010

$4.53

20

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

20

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
