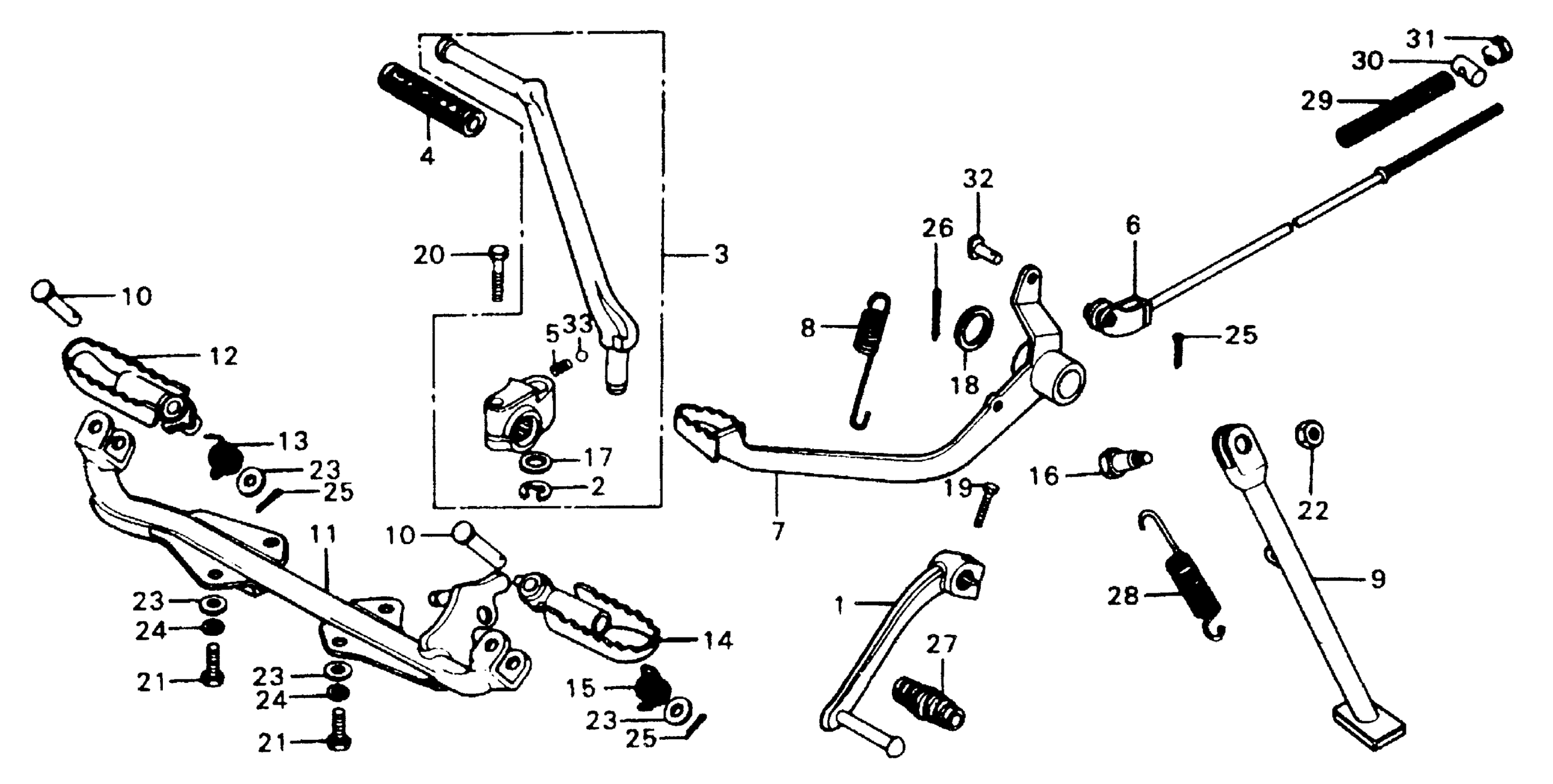

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 PEDAL + KICK ARM + STAND Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-107-700

Unavailable

1

PEDAL, GEARSHIFT This part replaces 24701-153-600.

24701-107-700

Unavailable

2

CLIP, KICK STARTER ARM

28293-333-000

$2.67

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-153-000

Unavailable

4

RUBBER, KICK STARTER

28311-342-000

$6.71

5

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

6

ROD, RR. BRAKE This part replaces 43451-152-000.

43451-195-670

Unavailable

6

ROD, RR. BRAKE

43451-195-670

Unavailable

7

PEDAL, BRAKE (NOT AVAILABLE)

46500-153-000

Unavailable

8

SPRING, BRAKE PEDAL

46514-107-010

$5.99

9

BAR, SIDE STAND (NOT AVAILABLE)

50530-153-000

Unavailable

10

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

10

PIN, STEP BAR JOINT

50603-033-010

$3.30

11

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-153-000ZA

Unavailable

12

ARM, R. FOOTPEG (NOT AVAILABLE) This part replaces 50616-152-000.

50616-110-790

Unavailable

13

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

14

ARM, L. FOOTPEG (NOT AVAILABLE) This part replaces 50642-152-000.

50642-110-790

Unavailable

15

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

16

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

17

WASHER (13X20)

90505-116-670

$2.92

18

WASHER (17X22)

90521-028-000

$1.89

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

20

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

21

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

21

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

26

PIN, COTTER (3.0X45)

94201-30450

$1.49

27

RUBBER, SHIFT PEDAL

95011-40000

$1.49

28

SPRING A, SIDE STAND

95014-72102

$2.84

29

SPRING A, BRAKE ROD

95014-73100

$1.49

30

JOINT, BRAKE ARM

95015-32001

$1.49

31

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

32

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
