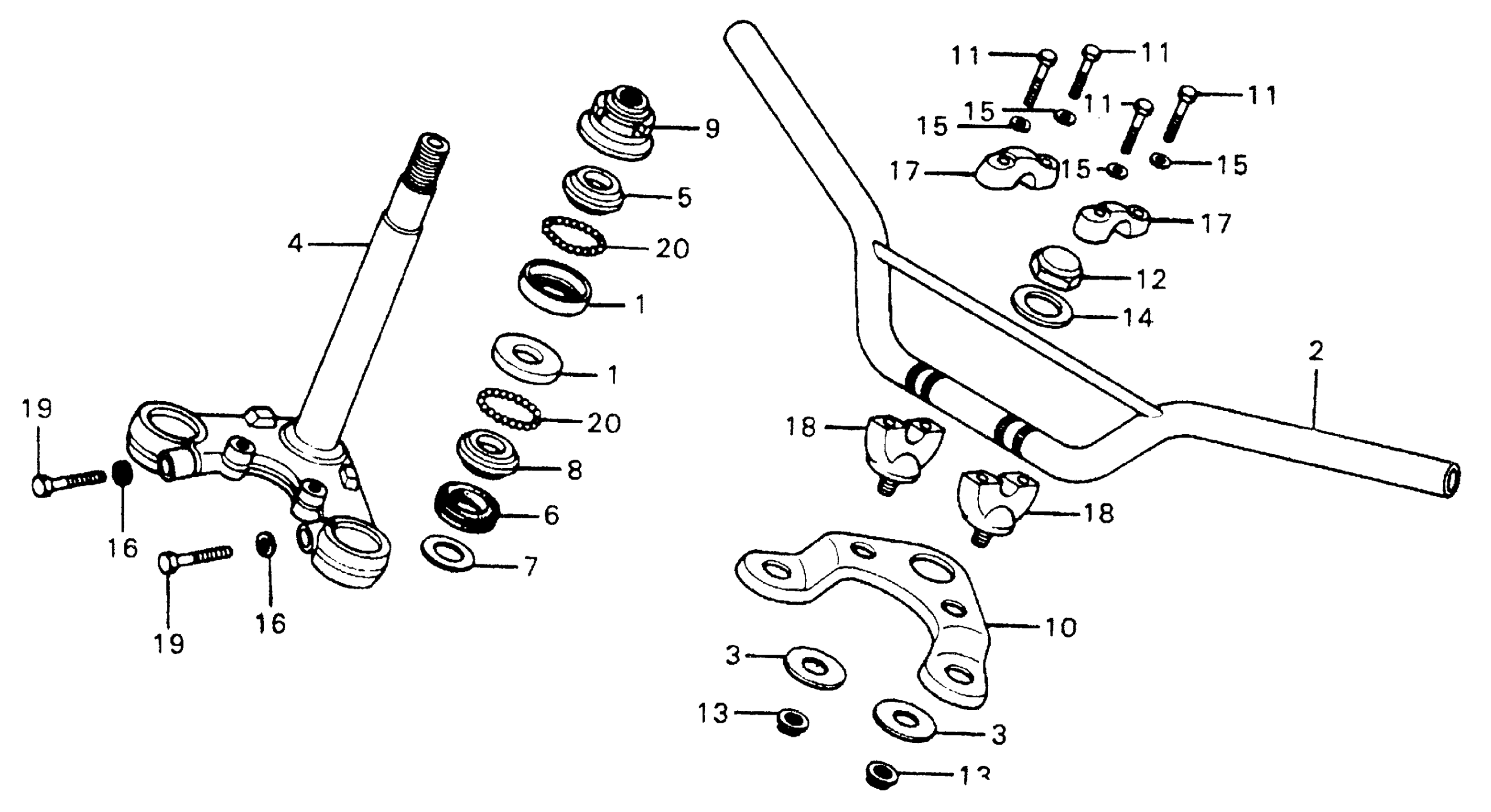

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 HANDLEBAR + TOP BRIDGE + STEM Diagram

#

Description
Price

1

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

1

RACE, STEERING TOP BALL

50301-041-010

$12.39

1

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

2

HANDLEBAR This part replaces 53100-153-600.

53100-153-601

Unavailable

2

HANDLEBAR

53100-153-601

Unavailable

3

SEAT, HANDLE RUBBER (NOT AVAILABLE)

53135-028-000

Unavailable

4

STEM, STEERING *NH1* (BLACK)

53200-153-000ZA

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

5

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

5

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

9

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

10

BRIDGE, FORK TOP *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 53231-116-670CT.

53231-116-670ZB

Unavailable

11

BOLT, HEX. (6X28)

90117-065-000

$2.62

12

NUT, STEERING STEM This part replaces 90304-153-000.

90304-159-000

$7.02

12

NUT, STEERING STEM

90304-159-000

$7.02

12

NUT, STEERING STEM This part replaces 90304-195-670.

90304-159-000

$7.02

13

NUT, HEX. (10MM)

90354-115-000

$3.69

14

WASHER, STEERING STEM (NOT AVAILABLE)

90503-153-000

Unavailable

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

HOLDER A2, HANDLEBAR (UPPER) This part replaces 95014-21200.

95014-21201

Unavailable

17

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable

18

HOLDER B2, HANDLEBAR (LOWER)

95014-32200

Unavailable

19

BOLT, HEX. (8X35) (SOURCE: VINTAGE PARTS INC.)

95300-08035-00

Unavailable

20

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
