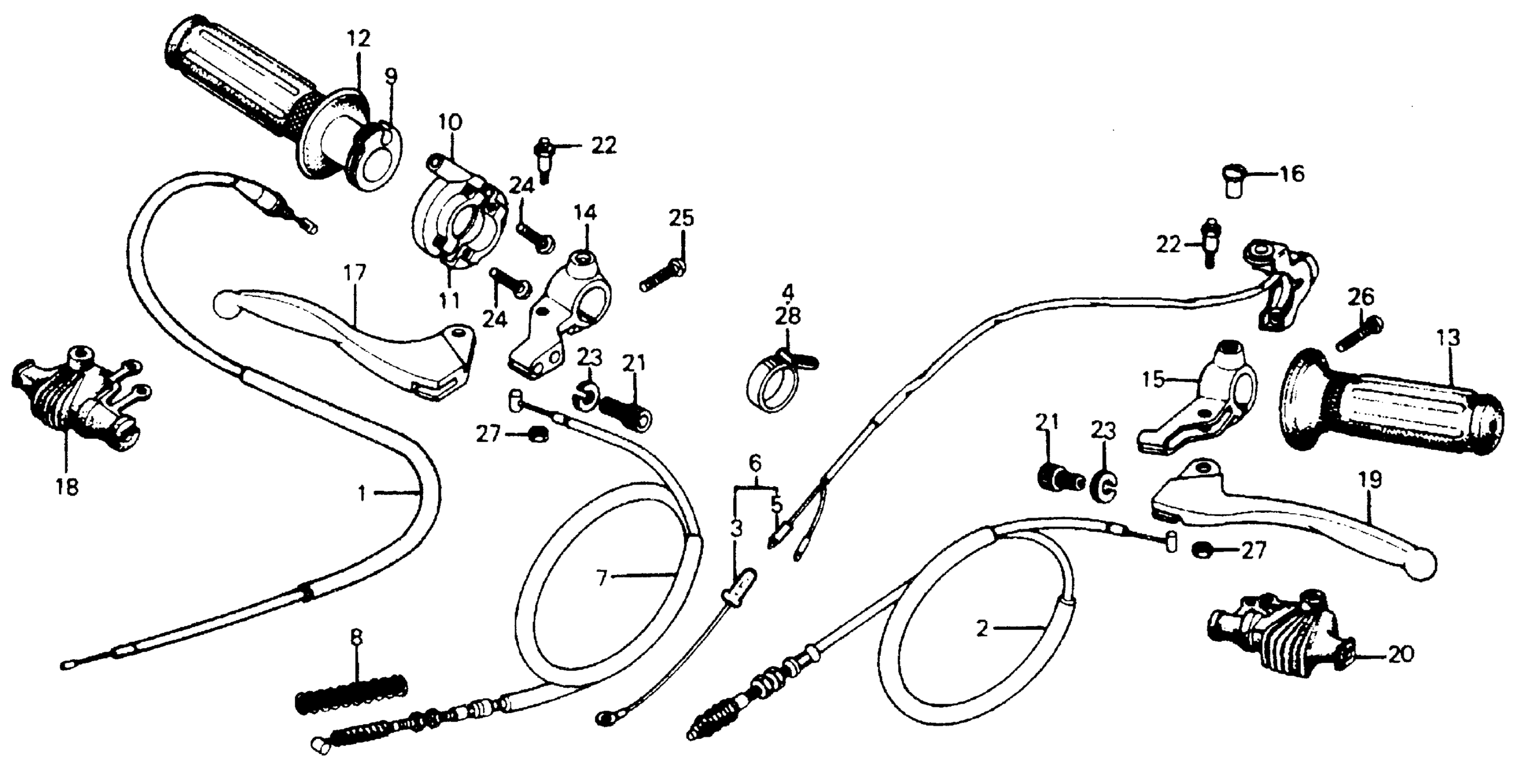

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 HANDLE LEVER + CABLE + SWITCH Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-153-P00

$31.84

1

CABLE, THROTTLE This part replaces 17910-153-000.

17910-153-P00

$31.84

2

CABLE, CLUTCH

22870-GN1-000

$29.78

2

CABLE, CLUTCH This part replaces 22870-153-000.

22870-GN1-000

$29.78

2

CABLE, CLUTCH This part replaces 22870-176-770.

22870-GN1-000

$29.78

2

CABLE, CLUTCH This part replaces 22870-176-771.

22870-GN1-000

$29.78

3

WIRE, GROUND (NOT AVAILABLE) | Use from Frame SN 1501913 This part replaces 32111-153-600.

32106-950-000

Unavailable

4

BAND B1, CABLE

32161-404-000

$2.23

5

SWITCH ASSY., STOP (NOT AVAILABLE) | Use up to Frame SN 1501912 This part replaces 35300-153-003.

35300-153-305

Unavailable

5

SWITCH ASSY., STOP (NOT AVAILABLE) | Use up to Frame SN 1501912

35300-153-305

Unavailable

6

SWITCH ASSY., STOP (NOT AVAILABLE) | Use from Frame SN 1501913

35300-153-305

Unavailable

7

CABLE, FR. BRAKE This part replaces 45450-152-670.

45450-195-670

Unavailable

7

CABLE, FR. BRAKE This part replaces 45450-152-671.

45450-195-670

Unavailable

7

CABLE, FR. BRAKE

45450-195-670

Unavailable

8

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

9

PIPE, THROTTLE GRIP

53141-153-000

Unavailable

10

CASE (UPPER)

53143-355-000

Unavailable

11

CASE (LOWER)

53144-355-000

Unavailable

12

GRIP, R. HANDLE *R23* (TAHITIAN RED) (NOT AVAILABLE)

53165-400-770ZA

Unavailable

13

GRIP, L. HANDLE *R23* (TAHITIAN RED) (NOT AVAILABLE)

53166-400-770ZA

Unavailable

14

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-110-000

Unavailable

15

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-110-000

Unavailable

16

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

17

LEVER, R. HANDLEBAR This part replaces 53175-149-000.

53175-116-690

$16.94

18

COVER, R. CONTROL LEVER

53176-329-000

$12.41

19

CONTROL LEVER, L. HANDLEBAR

53178-149-000

Unavailable

20

COVER, L. CONTROL LEVER

53179-329-000

$15.07

21

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

22

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

23

NUT, FIXING

90321-315-670

$7.31

23

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

24

SCREW, PAN (5X20)

93500-05020-0A

$1.49

25

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

26

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

26

SCREW, PAN (6X28)

93500-06028-0A

$1.49

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
