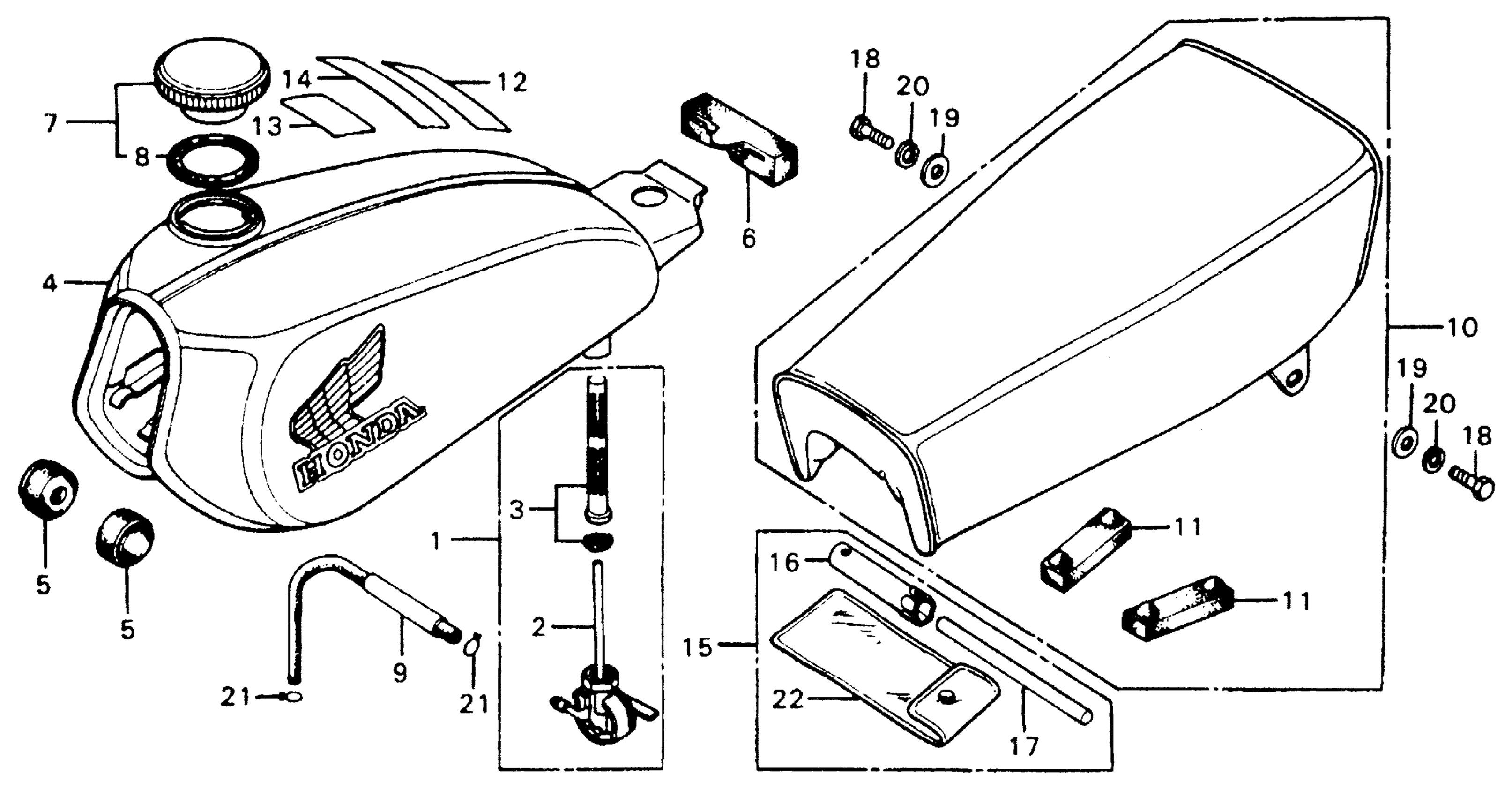

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 FUEL TANK + SEAT Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-149-005.

16950-149-025

$74.04

1

PETCOCK ASSY. This part replaces 16950-149-015.

16950-149-025

$74.04

1

PETCOCK ASSY.

16950-149-025

$74.04

2

BODY SET, PETCOCK (HONDA KIKAKI) This part replaces 16951-149-005.

16951-149-025

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) This part replaces 16951-149-015.

16951-149-025

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI)

16951-149-025

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-377-701.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16953-155-015.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER

16953-155-305

Unavailable

4

TANK ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17500-153-000ZA

Unavailable

5

RUBBER, FR. FUEL TANK

17611-331-000

$4.22

6

RUBBER, RR. FUEL TANK

17613-051-010

$9.78

7

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

7

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

7

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

7

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

7

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

8

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

8

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

9

TUBE, FUEL This part replaces 17681-153-000.

17681-397-000

Unavailable

9

TUBE, FUEL

17681-397-000

Unavailable

10

SEAT (NOT AVAILABLE)

77100-153-000

Unavailable

11

RUBBER B, SEAT SETTING

77205-286-000

$5.28

12

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87504-130-720ZA

Unavailable

13

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

14

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

14

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

15

TOOL SET (NOT AVAILABLE)

89010-153-000

Unavailable

16

WRENCH, SPARK PLUG This part replaces 89216-045-000.

89216-045-010

$6.26

16

WRENCH, SPARK PLUG

89216-045-010

$6.26

16

WRENCH, SPARK PLUG This part replaces 89216-045-670.

89216-045-010

$6.26

17

BAR, HANDLE

89217-045-670

$4.94

18

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

18

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

CLIP, TUBE (B8)

95002-02080

$1.80

22

BAG, TOOL (160MM)

99008-01600

$2.22
