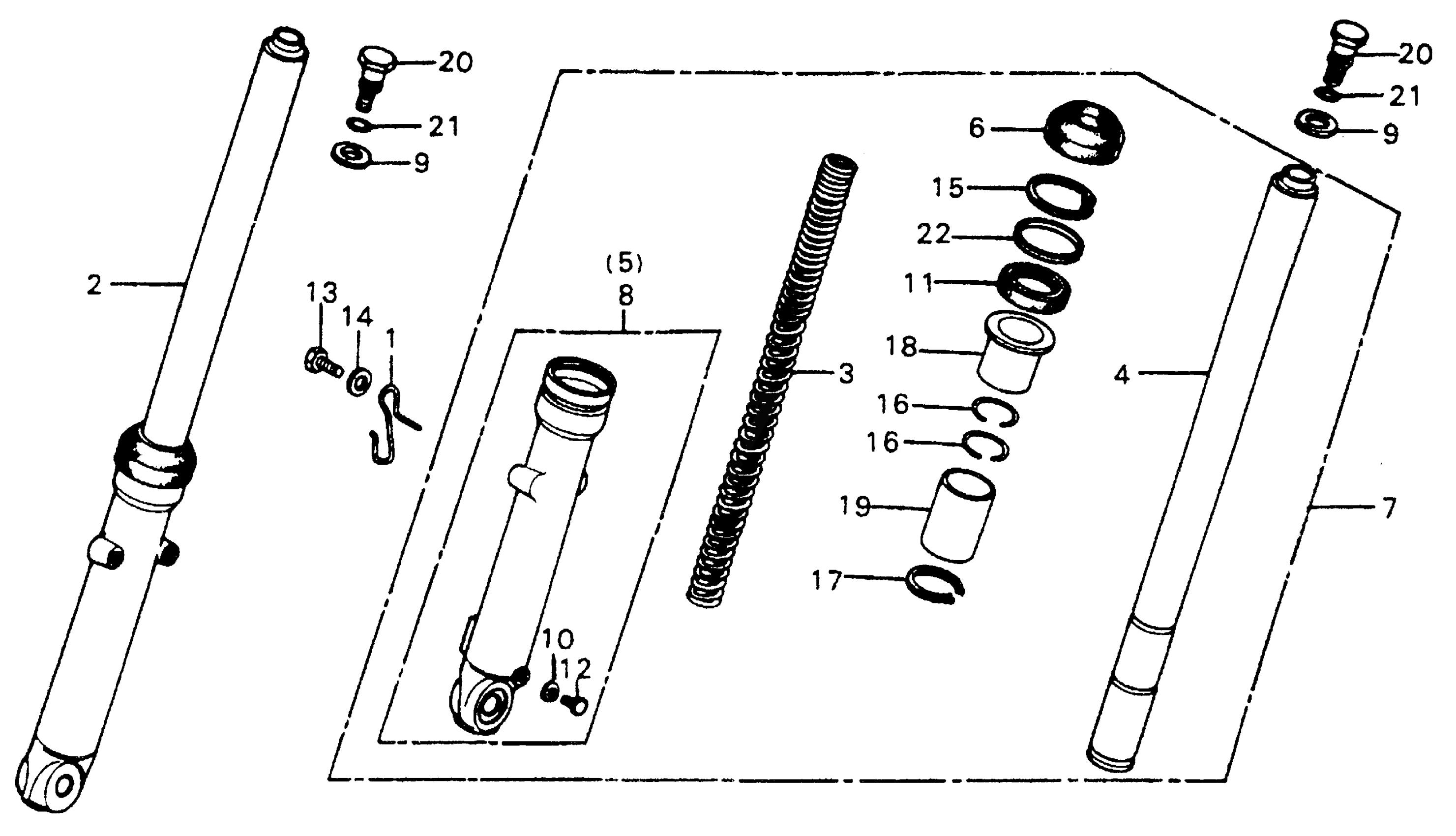

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 FRONT FORK Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45469-364-670

Unavailable

2

FORK ASSY., R. FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 51400-153-003ZB.

51400-153-013ZB

Unavailable

2

FORK ASSY., R. FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

51400-153-013ZB

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-153-003

Unavailable

4

PIPE, FR. FORK (SHOWA)

51410-152-003

Unavailable

4

PIPE, FR. FORK (SHOWA) This part replaces 51410-153-003.

51410-152-003

Unavailable

5

CASE, R. FORK (LOWER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

51420-153-003ZB

Unavailable

6

DUST SEAL, FR. FORK (ARAI) This part replaces 51425-118-013.

51425-118-023

$11.06

6

DUST SEAL, FR. FORK (ARAI)

51425-118-023

$11.06

7

FORK ASSY., L. FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 51500-153-003ZB.

51500-153-013ZB

Unavailable

7

FORK ASSY., L. FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

51500-153-013ZB

Unavailable

8

CASE, L. FORK (LOWER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

51520-153-003ZB

Unavailable

9

WASHER, FORK BOLT (13MM) This part replaces 90516-153-000.

94606-13001

$1.49

9

WASHER, FORK BOLT (13MM) This part replaces 90537-028-000.

94606-13001

$1.49

9

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

10

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

11

OIL SEAL, FR. FORK This part replaces 90756-118-003.

90756-149-841

$14.86

11

OIL SEAL, FR. FORK

90756-149-841

$14.86

12

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

12

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

12

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

CIRCLIP (INNER) (40MM) (NOT AVAILABLE)

94521-40000

Unavailable

16

RING A, SNAP (27MM)

94570-27000

Unavailable

17

RING B, SNAP (27MM) (NOT AVAILABLE)

94580-27000

Unavailable

18

GUIDE, FORK PIPE (27MM)

94602-27101

Unavailable

19

PISTON, FORK (27MM)

94603-27002

Unavailable

20

BOLT, FORK A

94605-10101

$5.21

21

O-RING (8.4X2.4)

94608-10000

$1.49

22

RING, BACK-UP (30MM) (SOURCE: VINTAGE PARTS INC.)

94609-30000

Unavailable
