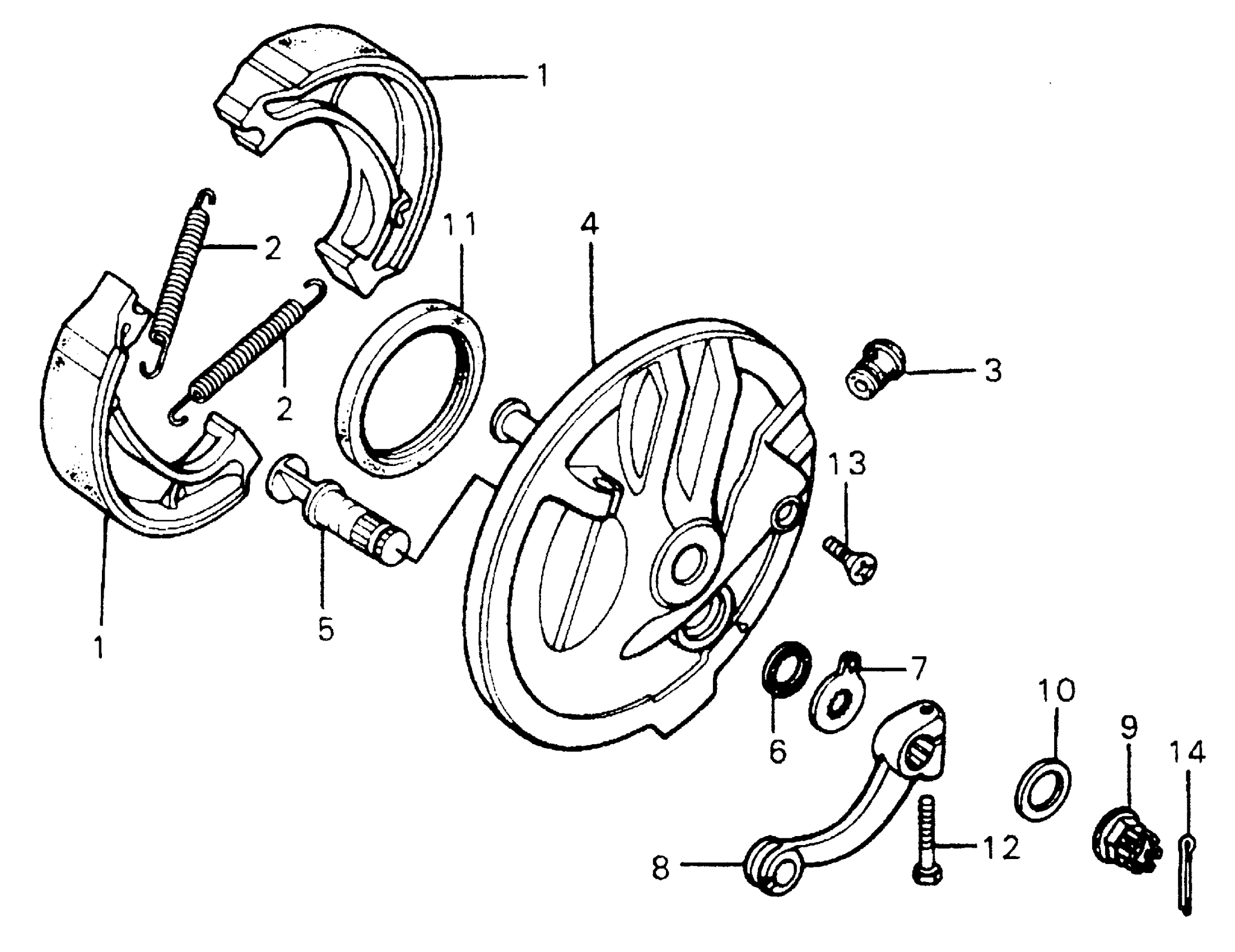

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047 This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047 This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1403047 This part replaces 451A2-096-305.

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

1

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

2

SPRING, BRAKE SHOE

45133-028-000

$2.03

3

CAP, GEAR BOX HOLE (NOT AVAILABLE)

44835-365-670

Unavailable

4

PANEL, FR. BRAKE *NH105* (MAT BLACK) This part replaces 45100-153-600ZA.

45100-153-601ZA

Unavailable

4

PANEL, FR. BRAKE *NH105* (MAT BLACK)

45100-153-601ZA

Unavailable

5

CAM, FR. BRAKE This part replaces 45131-400-000.

45131-400-020

Unavailable

5

CAM, FR. BRAKE This part replaces 45131-400-010.

45131-400-020

Unavailable

5

CAM, FR. BRAKE

45131-400-020

Unavailable

6

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

7

INDICATOR, FR. BRAKE

45145-400-000

Unavailable

8

ARM, FR. BRAKE

45410-400-000

Unavailable

9

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

9

NUT, AXLE (12MM)

90305-169-000

$6.28

10

WASHER (12.5MM)

90528-229-000

$2.02

11

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) | Use from Frame SN 1538303

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) | Use from Frame SN 1538303 This part replaces 91251-121-000.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) | Use from Frame SN 1538303 This part replaces 91251-121-003.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) | Use from Frame SN 1520001

91251-361-005

$13.39

12

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

12

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

13

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

14

PIN, COTTER (3.0X45)

94201-30450

$1.49
