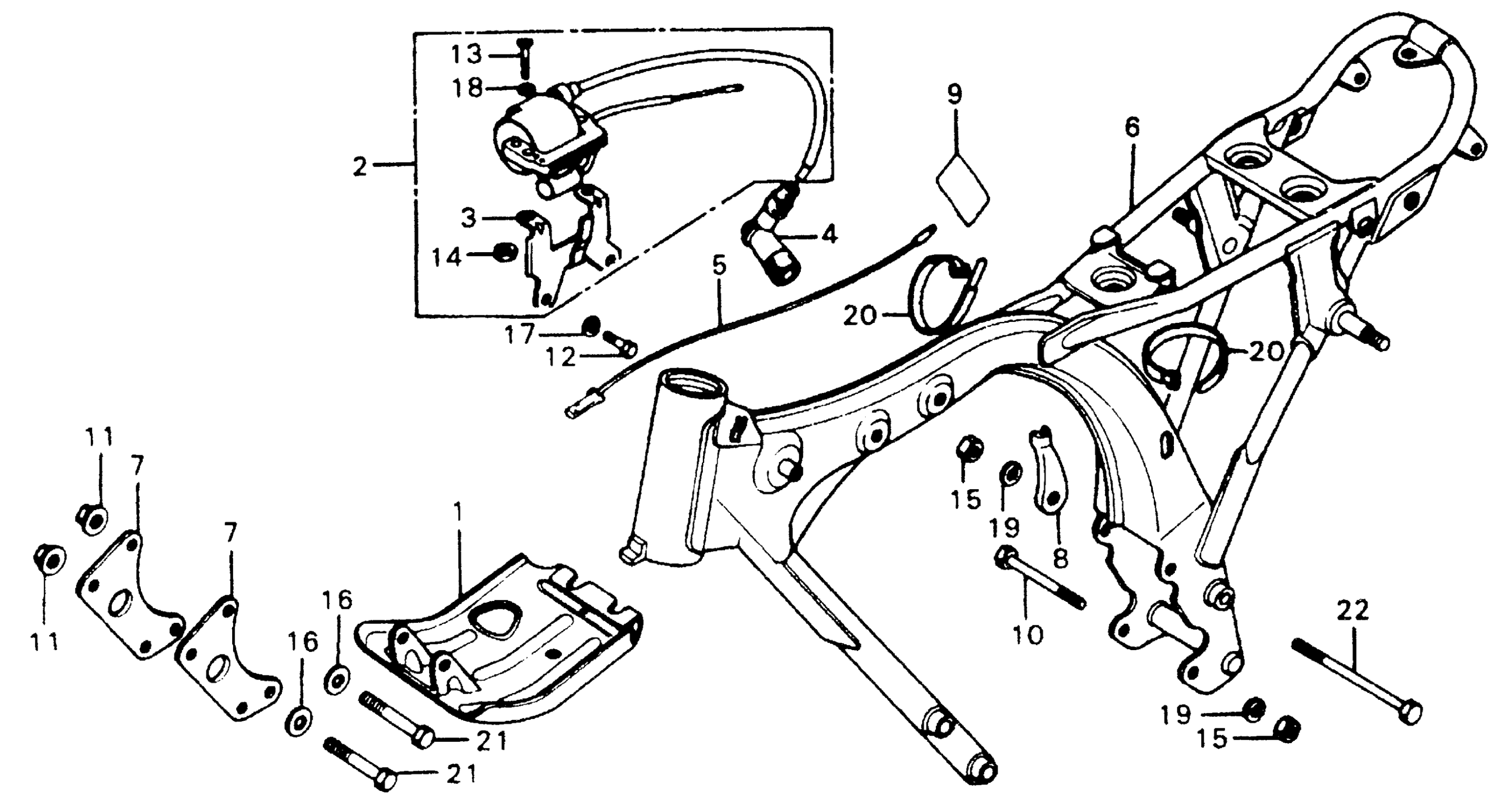

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 FRAME + IGNITION COIL Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-153-000

Unavailable

2

COIL ASSY., IGNITION

30500-153-003

Unavailable

3

STAY, IGNITION COIL MOUNT (NOT AVAILABLE)

30501-153-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

5

WIRE HARNESS (NOT AVAILABLE)

32100-153-000

Unavailable

6

FRAME *R23* (TAHITIAN RED)

50100-153-000ZA

Unavailable

7

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-149-000ZA

Unavailable

8

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-149-000

Unavailable

9

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

10

BOLT, HEX. (8X95) (NOT AVAILABLE)

90102-149-000

Unavailable

11

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

11

NUT, FLANGE (8MM)

94050-08000

$1.49

11

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

SCREW, PAN (6X20)

93500-06020-0H

$1.49

13

SCREW, PAN (6X20) This part replaces 93500-06020-08.

93500-06020-0H

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

14

NUT, HEX. (6MM)

94001-06080-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

15

NUT, HEX. (8MM)

94030-08000

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

WASHER, SPRING (6MM)

94111-06800

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

BAND A3, CABLE

95014-61300

$1.97

21

BOLT, HEX. (8X60) This part replaces 95300-08060-00.

95301-08060-00

$1.49

22

BOLT, HEX. (8X100)

95300-08100-00

Unavailable
