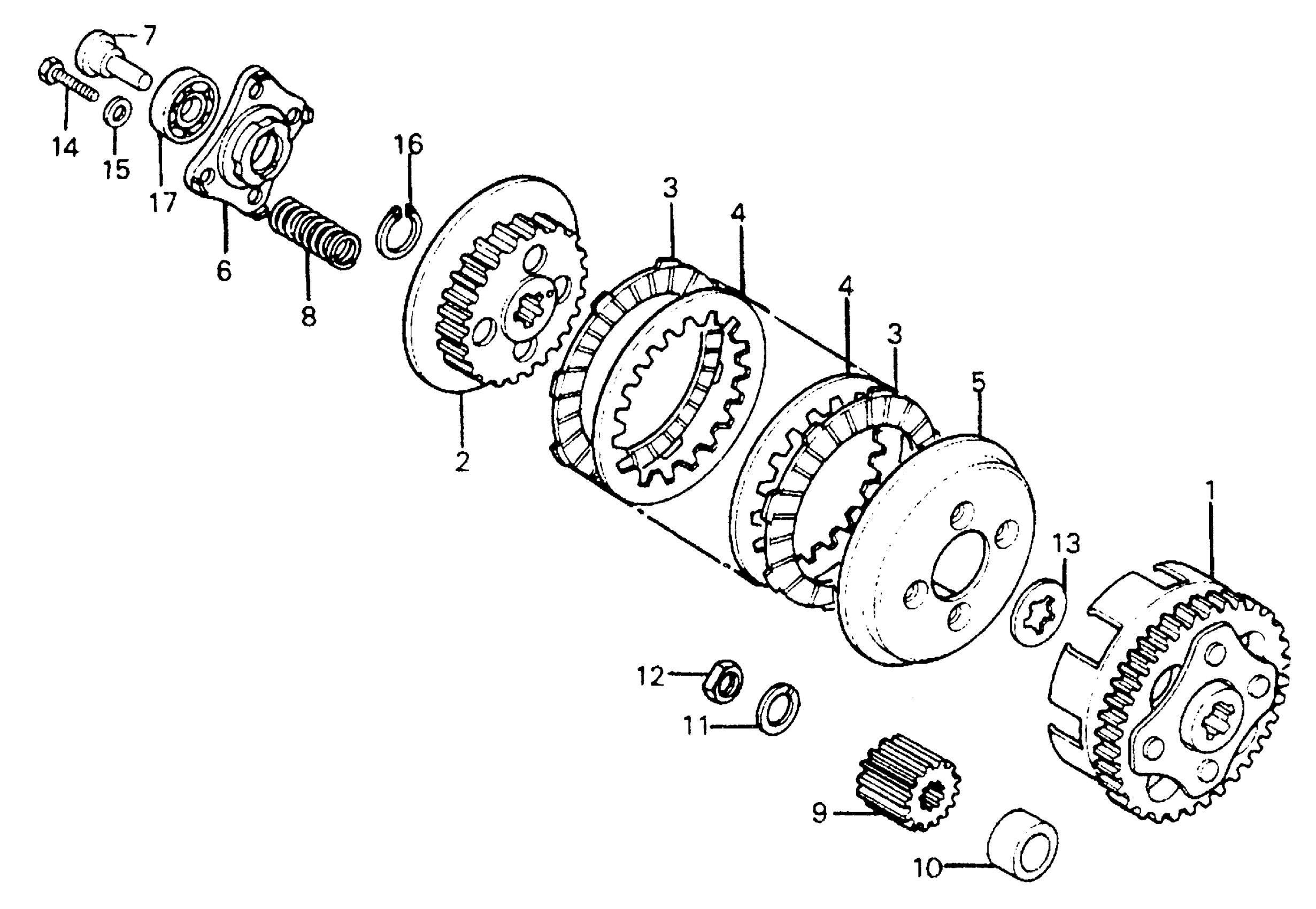

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (71T)

22100-149-000

$184.49

2

CENTER, CLUTCH

22121-115-010

$67.82

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION

22201-166-000

$17.44

4

PLATE, CLUTCH

22311-KN4-680

$6.31

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

5

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

6

PLATE, CLUTCH LIFTER

22361-107-000

$17.55

7

PIN, CLUTCH LIFTER GUIDE

22366-115-000

$31.49

8

SPRING, CLUTCH This part replaces 22401-153-000.

22401-198-710

Unavailable

8

SPRING, CLUTCH

22401-198-710

Unavailable

9

GEAR, PRIMARY DRIVE (16T)

23121-149-000

Unavailable

10

COLLAR, PRIMARY DRIVE GEAR

23122-149-000

$9.18

11

WASHER, LOCK

90033-115-000

Unavailable

12

NUT, SPECIAL (14MM)

90201-836-000

Unavailable

13

WASHER B, SPLINE (17MM)

90462-115-010

$5.33

14

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

14

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

17

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$17.13

17

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
