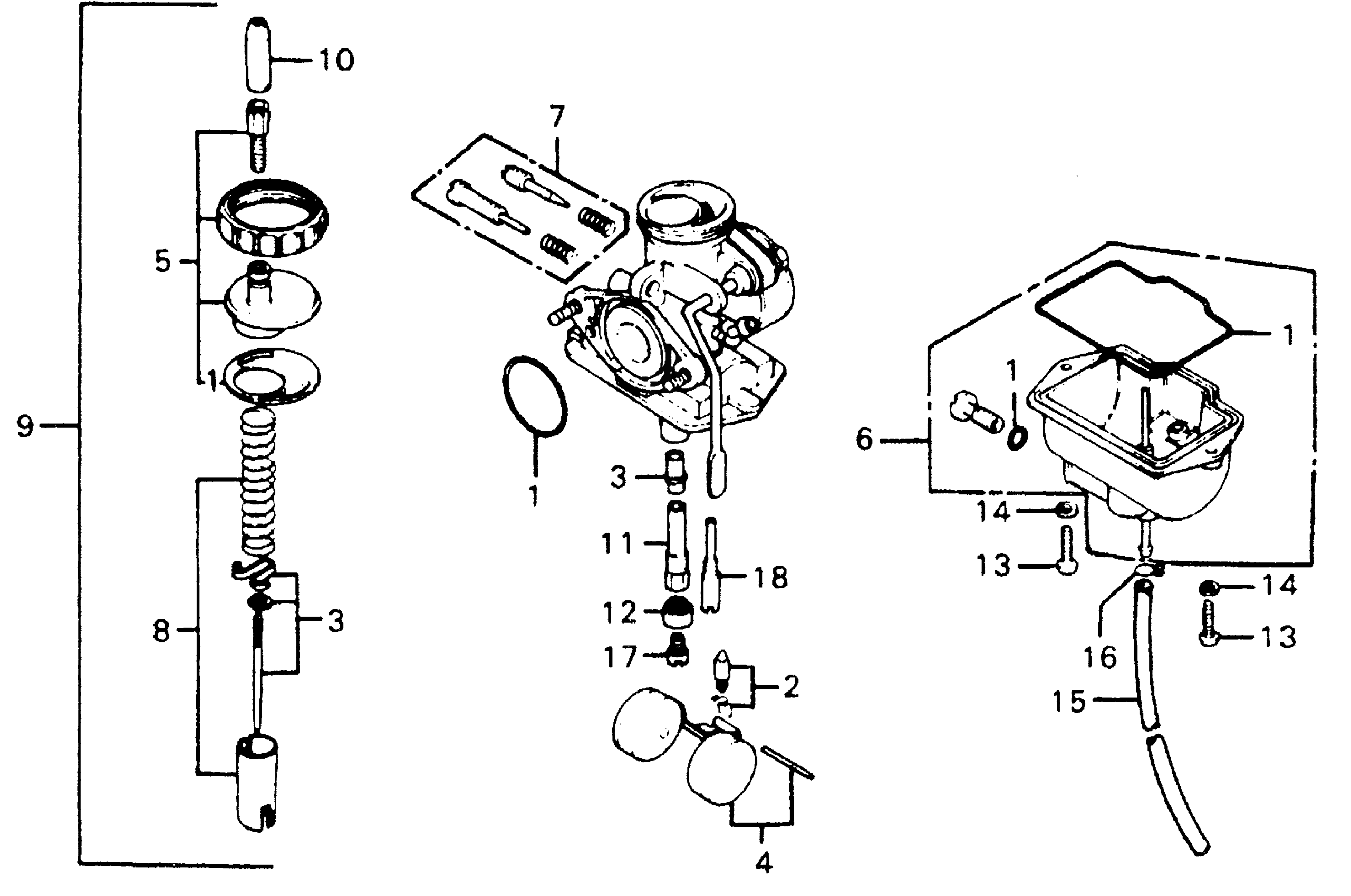

Honda XR75A (78) MOTORCYCLE, JPN, VIN# XR75-1500003 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$13.86

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$13.86

2

VALVE SET, FLOAT This part replaces 16011-143-620.

16011-881-741

$24.85

2

VALVE SET, FLOAT This part replaces 16011-147-004.

16011-881-741

$24.85

2

VALVE SET, FLOAT This part replaces 16011-147-305.

16011-881-741

$24.85

2

VALVE SET, FLOAT

16011-881-741

$24.85

3

NEEDLE SET, JET

16012-153-004

Unavailable

4

FLOAT SET

16013-107-810

$35.88

5

TOP SET

16014-116-700

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-153-004

Unavailable

7

SCREW SET

16016-143-620

$24.01

8

VALVE SET, THROTTLE

16022-153-004

$51.10

9

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-153-004.

16100-153-014

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-153-014

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

10

CAP, CABLE SEALING

16118-166-004

$8.08

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-153-004

Unavailable

12

HOLDER, JET

16168-355-700

$9.15

13

SCREW, PAN (4X12)

93500-04012-0A

$1.49

14

WASHER, SPRING (4MM)

94111-04000

$1.49

15

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

JET, MAIN (#92) This part replaces 99101-116-0920.

99102-GHB-0920

$10.41

17

JET, MAIN (#92)

99102-GHB-0920

$10.41

18

JET, SLOW (#35)

99103-116-0350

$18.15
