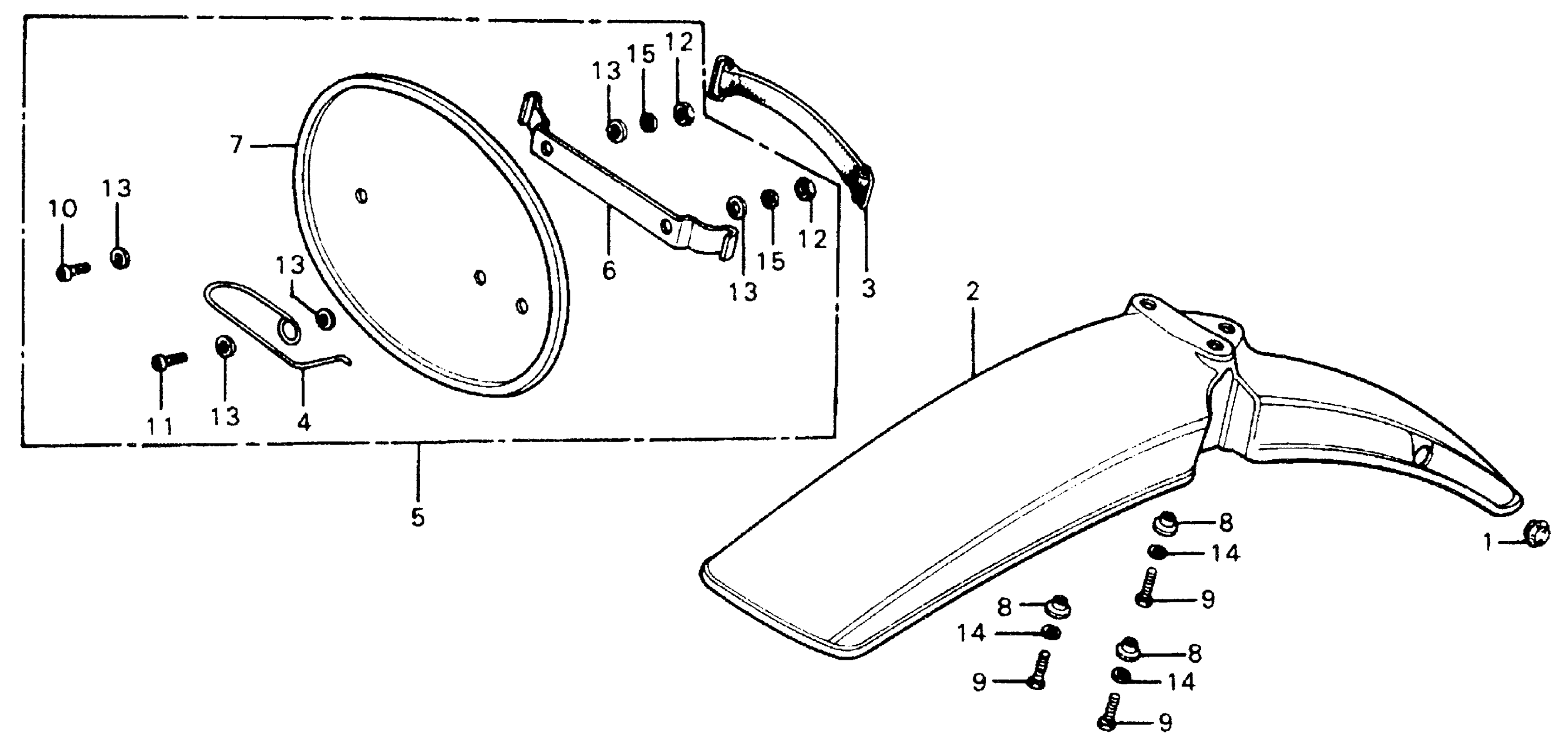

Honda XR75A (77) MOTORCYCLE, JPN, VIN# XR75-1400013 TO XR75-1432022 FRONT FENDER + NUMBER PLATE Diagram

PLUG

50318-041-600

$2.11

FENDER, FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

61100-152-670ZB

Unavailable

BAND, FR. NUMBER PLATE (NOT AVAILABLE)

61133-131-000

Unavailable

GUIDE, CABLE (NOT AVAILABLE)

61138-357-000

Unavailable

PLATE ASSY., FR. NUMBER *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

64110-131-000ZA

Unavailable

STAY, FR. NUMBER PLATE (NOT AVAILABLE)

64111-131-000

Unavailable

PLATE, FR. NUMBER *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

64113-116-690WF

Unavailable

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, PAN (5X16)

93500-05016-0A

$1.49

NUT, HEX. (5MM)

94002-05000-0S

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
