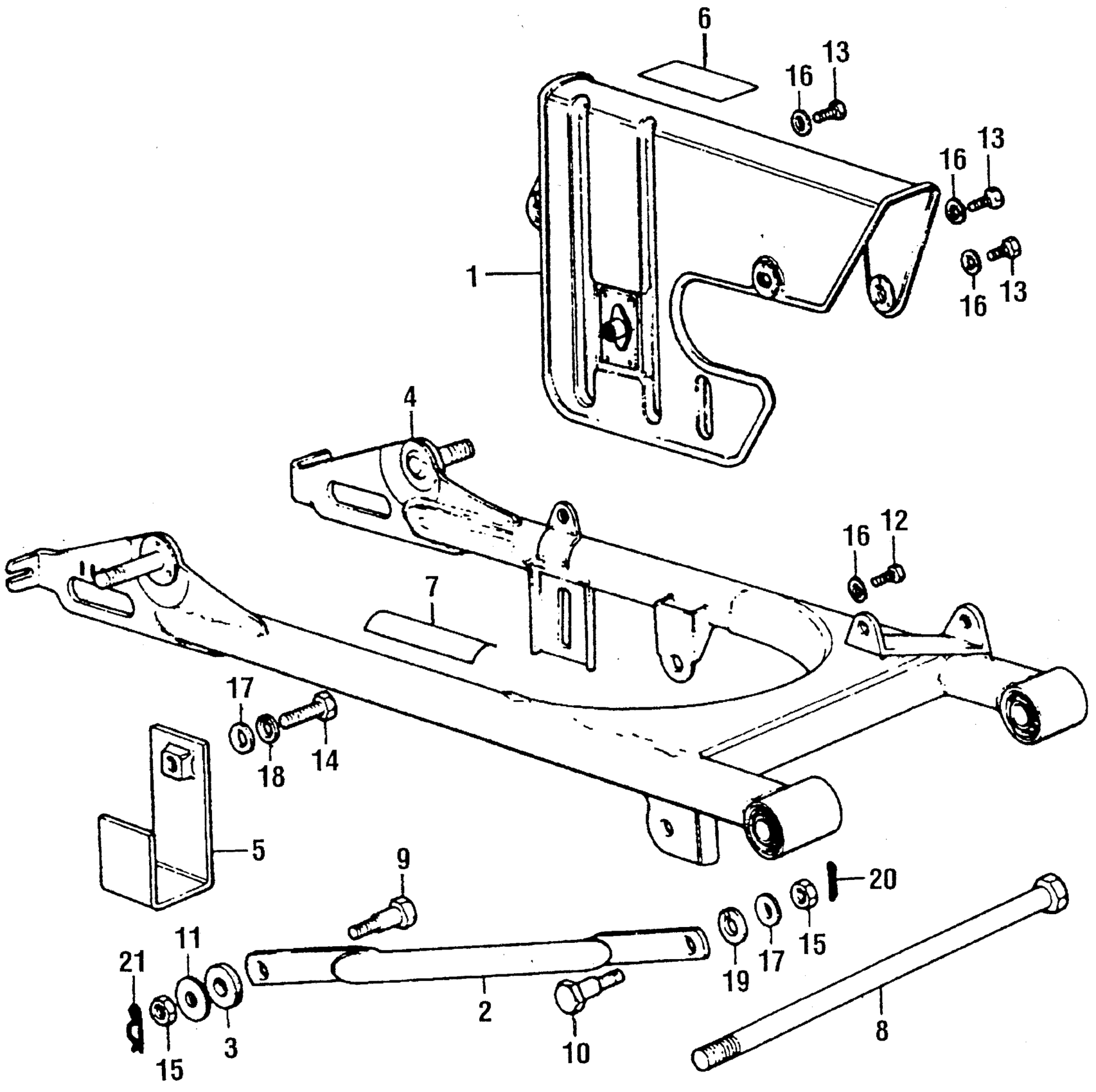

Honda XR75A (76) MOTORCYCLE, JPN, VIN# XR75-1300001 TO XR75-1318542 SWINGARM + CHAIN CASE Diagram

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE) This part replaces 40510-116-671B.

40510-195-000ZA

Unavailable

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43432-116-671

Unavailable

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-116-671B

Unavailable

GUARD, DRIVE CHAIN (NOT AVAILABLE)

52156-074-000

Unavailable

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-116-710

Unavailable

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-116-670

Unavailable

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49
