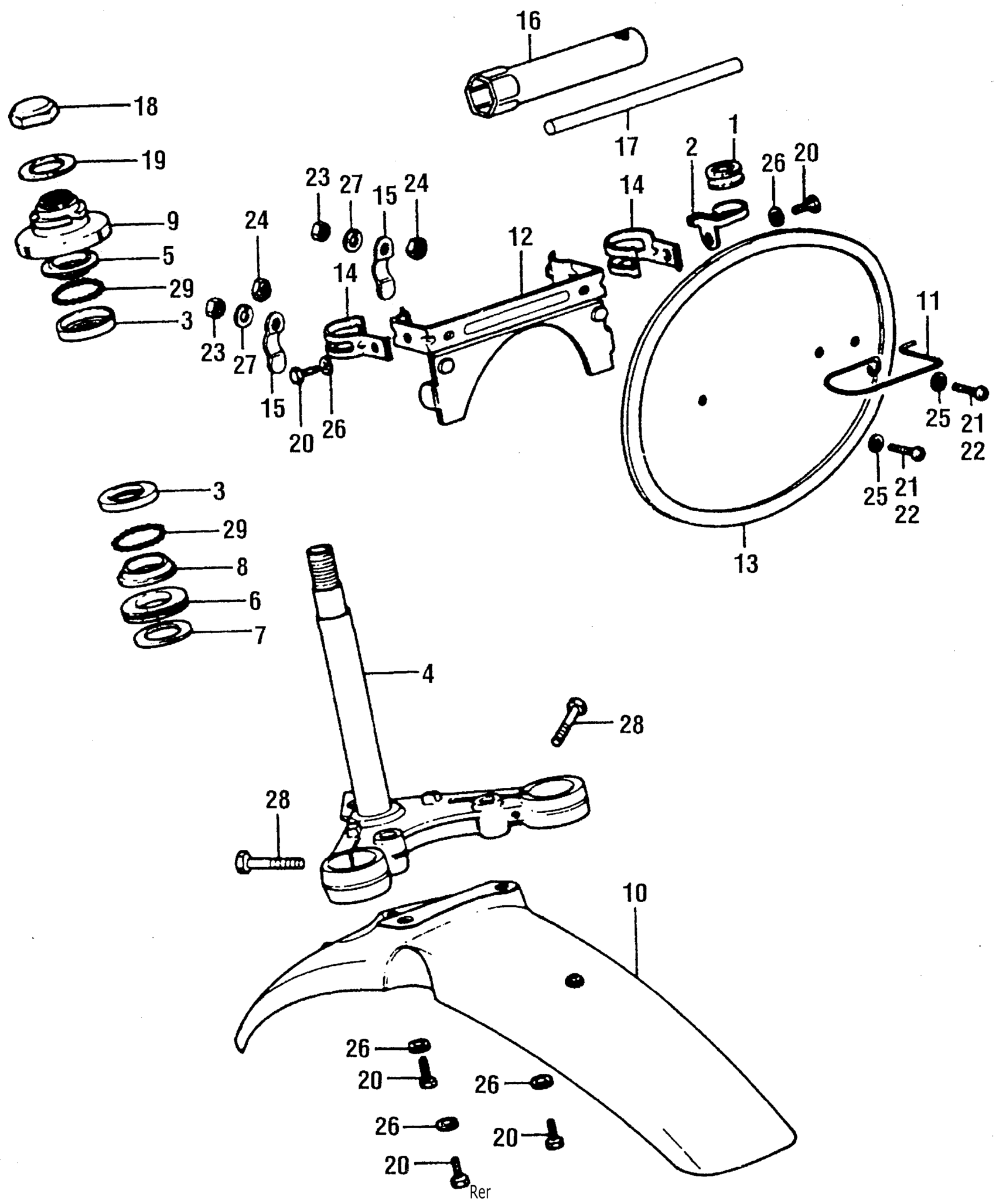

Honda XR75A (76) MOTORCYCLE, JPN, VIN# XR75-1300001 TO XR75-1318542 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

3

RACE, STEERING TOP BALL

50301-041-010

$12.39

3

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

4

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-116-671B

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

5

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

5

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

9

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$16.83

9

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

9

THREAD, STEERING HEAD TOP This part replaces 53220-115-000.

53220-098-670

$16.83

10

FENDER, FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

61100-116-710EC

Unavailable

11

GUIDE, CABLE (NOT AVAILABLE)

61138-357-000

Unavailable

12

STAY ASSY., FR. NUMBER (NOT AVAILABLE)

64111-116-690

Unavailable

13

PLATE, FR. NUMBER *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

64113-116-690WF

Unavailable

14

STAY, FR. NUMBER STEERING *NH1* (BLACK) (NOT AVAILABLE)

64115-116-670B

Unavailable

15

PLATE, HOLDER PLUG WRENCH (NOT AVAILABLE)

77136-114-670

Unavailable

16

WRENCH, SPARK PLUG This part replaces 89216-045-000.

89216-045-010

$6.26

16

WRENCH, SPARK PLUG

89216-045-010

$6.26

16

WRENCH, SPARK PLUG This part replaces 89216-045-670.

89216-045-010

$6.26

17

BAR, HANDLE

89217-045-670

$4.94

18

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$7.02

18

NUT, STEERING STEM

90304-159-000

$7.02

18

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02

19

WASHER, STEERING STEM

90503-051-870

$2.84

20

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

SCREW, PAN (5X16)

93500-05016-0A

$1.49

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, PLAIN (5MM)

94101-05000

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

BOLT, HEX. (8X32) (NOT AVAILABLE) This part replaces 95300-08032.

95300-08032-00

Unavailable

28

BOLT, HEX. (8X32) (NOT AVAILABLE)

95300-08032-00

Unavailable

29

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
