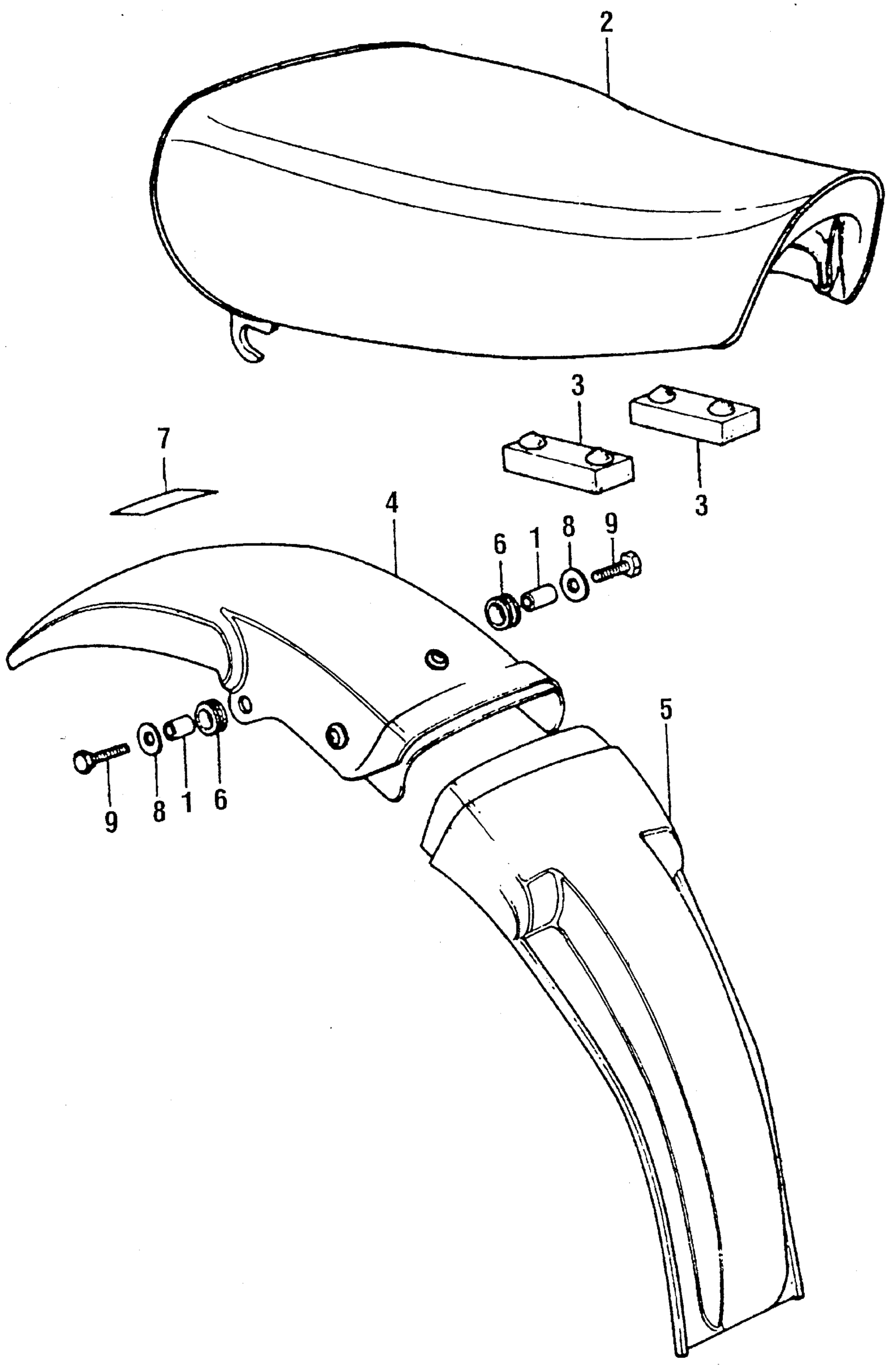

Honda XR75A (76) MOTORCYCLE, JPN, VIN# XR75-1300001 TO XR75-1318542 SEAT + REAR FENDER Diagram

#

Description

Price

1

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.57

2

SEAT ASSY. (NOT AVAILABLE)

77100-116-690

Unavailable

3

RUBBER B, SEAT SETTING

77205-286-000

$4.92

4

FENDER, RR. R23 (TAHITIAN RED) (NOT AVAILABLE)

80100-116-710EC

Unavailable

5

FENDER B, RR. NH1 (BLACK) (NOT AVAILABLE)

80101-116-670B

Unavailable

6

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.57

8

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.67

9

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

9

BOLT, HEX. (6X20)

92101-06020-0A

$0.94
