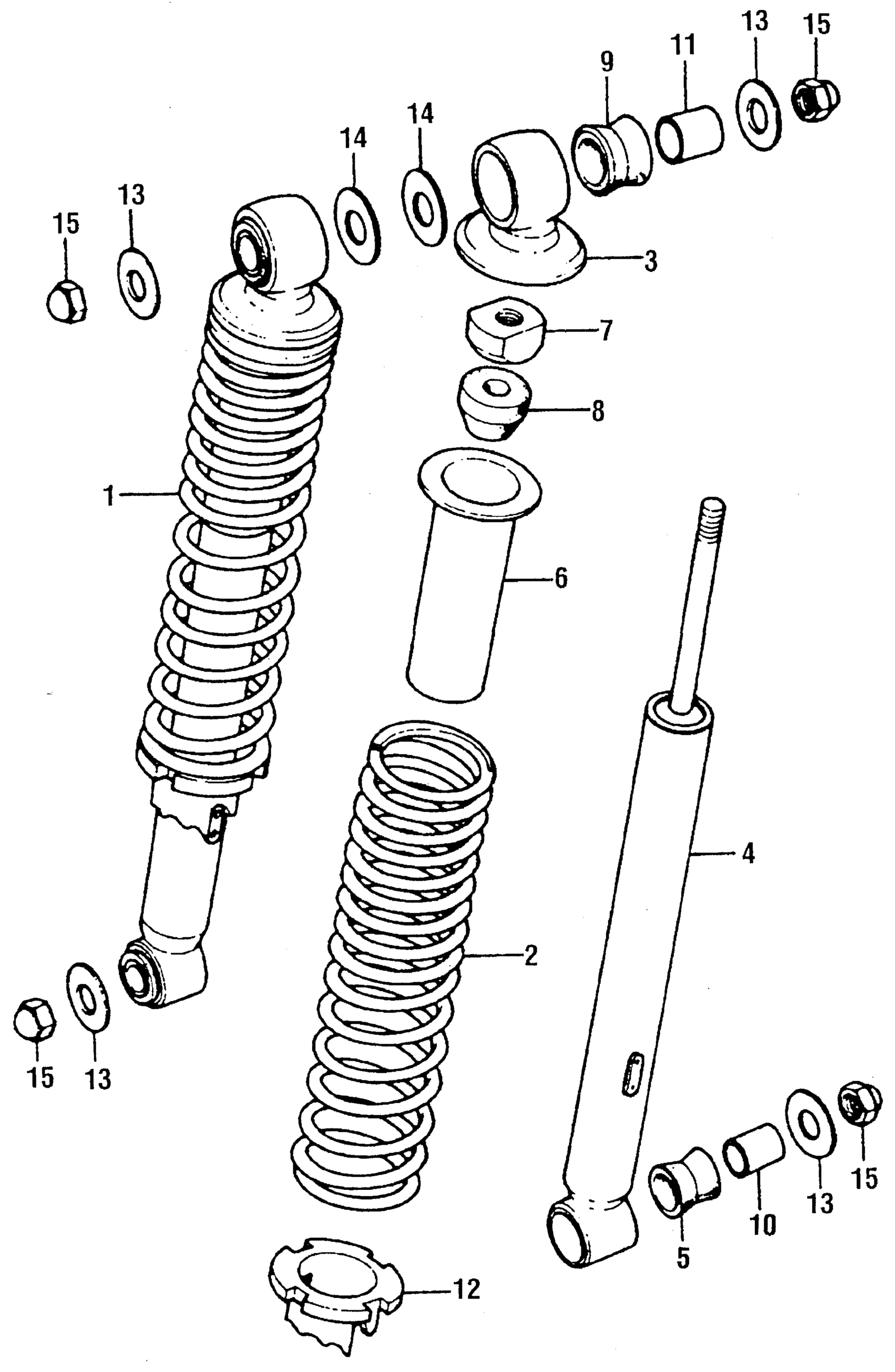

Honda XR75A (76) MOTORCYCLE, JPN, VIN# XR75-1300001 TO XR75-1318542 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-116-672

Unavailable

SPRING, RR. (NOT AVAILABLE)

52407-116-691

Unavailable

METAL, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52410-303-020

Unavailable

DAMPER COMP., RR. This part replaces 52450-118-771.

52450-159-612

Unavailable

DAMPER COMP., RR. This part replaces 52450-118-772.

52450-159-612

Unavailable

BUSH, RR. SHOCK ABSORBER RUBBER

52476-001-020

$4.92

GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52476-118-770

Unavailable

NUT, RR. SHOCK ABSORBER LOCKING

52482-028-030

Unavailable

RUBBER, SHOCK ABSORBER (NOT AVAILABLE)

52483-107-003

Unavailable

BUSH, RR. SHOCK ABSORBER RUBBER

52485-118-000

Unavailable

COLLAR, SWINGARM RUBBER BUSH

52486-001-000

$4.85

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH This part replaces 52488-001-000.

52496-040-000

$4.12

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52496-040-000

$4.12

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52490-116-671

Unavailable

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

WASHER (12MM)

90531-011-010

$1.51

NUT, CAP (10MM)

94021-10000-0S

$1.72
