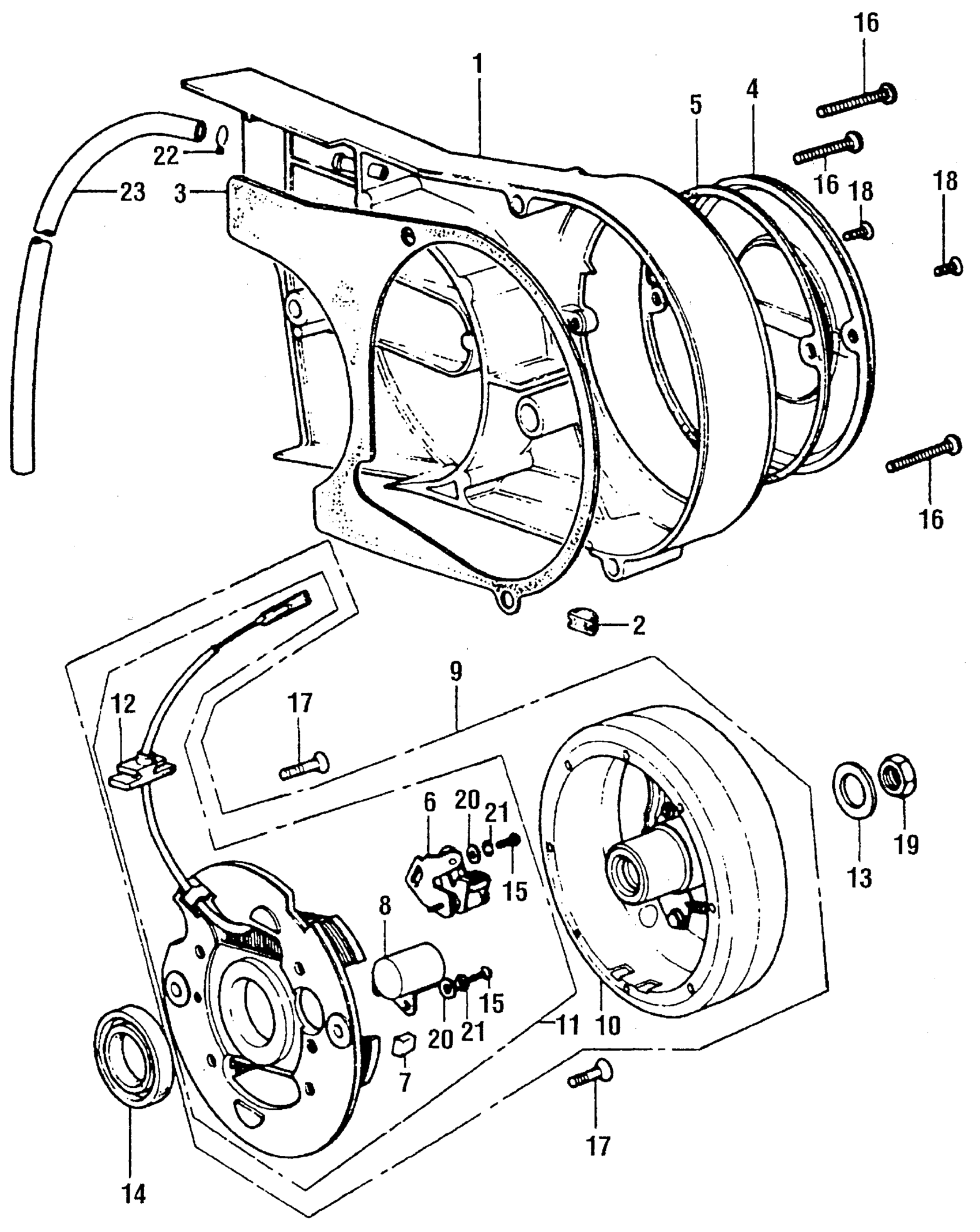

Honda XR75A (76) MOTORCYCLE, JPN, VIN# XR75-1300001 TO XR75-1318542 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-116-700

Unavailable

2

RUBBER, L. COVER SEALING (NOT AVAILABLE)

11345-116-700

Unavailable

3

GASKET, L. This part replaces 11395-116-700.

11395-116-306

Unavailable

4

COVER, ALTERNATOR

11431-116-000

Unavailable

5

GASKET, DYNAMO COVER This part replaces 11432-086-000.

11432-086-306

Unavailable

6

POINTS (HITACHI)

30202-041-015

$26.87

7

FELT, OIL (HITACHI)

30205-041-005

$3.67

8

CONDENSER (HITACHI)

30250-041-005

$22.71

9

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-116-005

Unavailable

10

FLYWHEEL (HITACHI) (NOT AVAILABLE)

31121-116-005

Unavailable

11

STATOR ASSY. (HITACHI) (NOT AVAILABLE)

31141-116-005

Unavailable

12

GROMMET, ALTERNATOR WIRE (NOT AVAILABLE)

32971-116-000

Unavailable

13

WASHER, MAGNET FIXING

90426-035-000

$2.38

14

OIL SEAL (19X36X7)

91202-115-015

$6.99

15

SCREW, PAN (4X10)

93500-04010-0A

$0.90

16

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

16

SCREW, PAN (6X35)

93500-06035-0A

$1.49

17

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$0.97

17

SCREW, FLAT (6X16)

93600-06016-0A

$0.97

18

SCREW, OVAL (5X12)

93700-05012-0A

$0.76

19

NUT, HEX. (10MM)

94030-10000

$1.41

20

WASHER, PLAIN (4MM)

94101-04000

$0.91

21

WASHER, SPRING (4MM)

94111-04000

$0.99

22

CLIP, TUBE (C9)

95002-50000

$1.16

23

BULK HOSE, VACUUM (5X3000) (5X400)

95005-50003-30M

Unavailable
