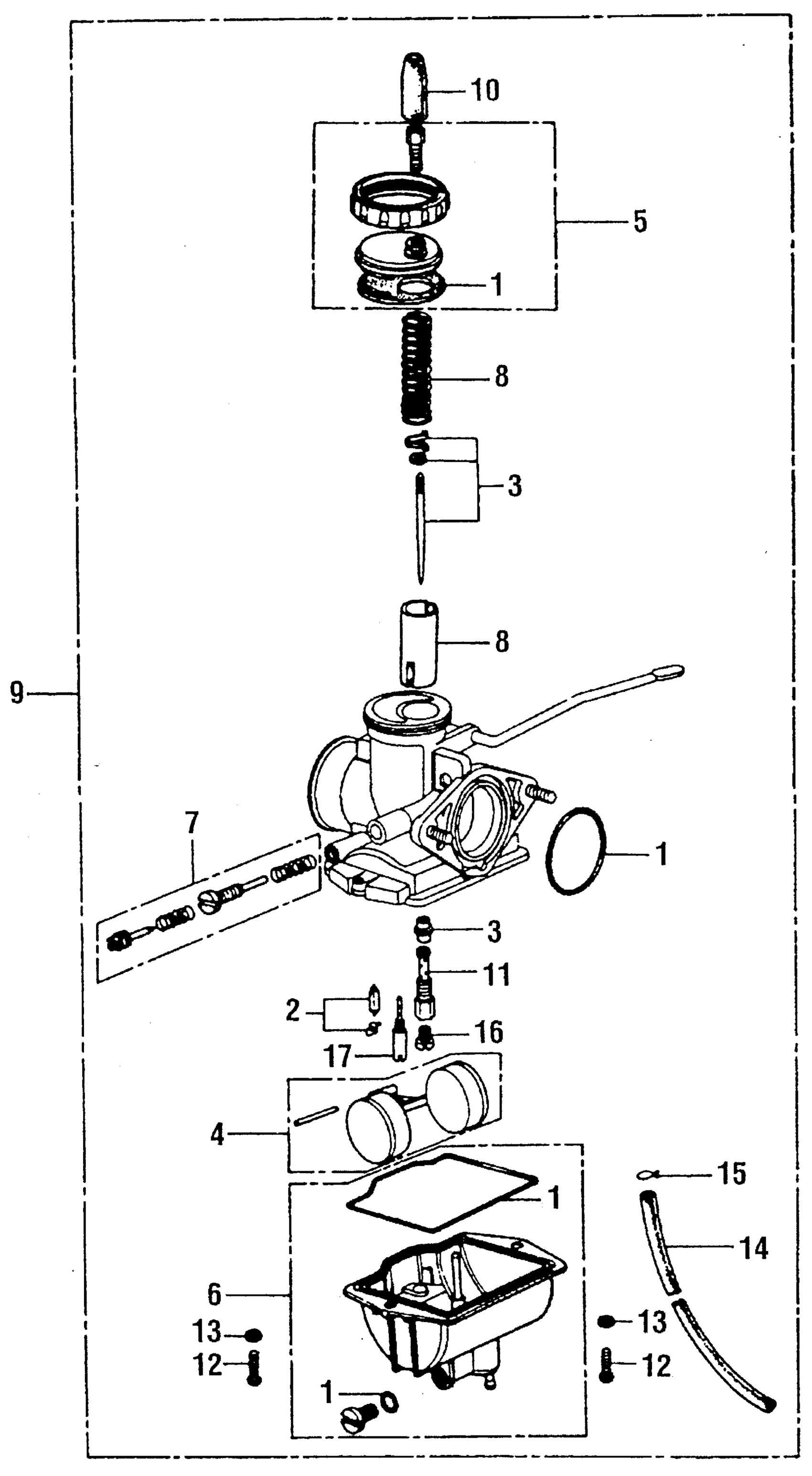

Honda XR75A (76) MOTORCYCLE, JPN, VIN# XR75-1300001 TO XR75-1318542 CARBURETOR 76 Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$12.44

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$12.44

2

VALVE SET, FLOAT This part replaces 16011-143-620.

16011-881-741

$22.32

2

VALVE SET, FLOAT This part replaces 16011-147-004.

16011-881-741

$22.32

2

VALVE SET, FLOAT This part replaces 16011-147-305.

16011-881-741

$22.32

2

VALVE SET, FLOAT

16011-881-741

$22.32

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-116-700

Unavailable

4

FLOAT SET

16013-116-700

$25.68

5

TOP SET

16014-116-700

Unavailable

6

CHAMBER SET, FLOAT

16015-116-700

Unavailable

7

SCREW SET

16016-143-620

$21.57

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-116-700

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-116-701

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$7.52

10

CAP, CABLE SEALING

16118-166-004

$7.52

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-116-700

Unavailable

12

SCREW, PAN (4X12)

93500-04012-0A

$0.75

13

WASHER, SPRING (4MM)

94111-04000

$0.97

14

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$18.72

15

CLIP, TUBE (B7)

95002-02070

$1.59

16

JET, MAIN (#100) This part replaces 99101-116-1000.

99102-GHB-1000

Unavailable

17

JET, SLOW (#35)

99103-116-0350

$16.17
