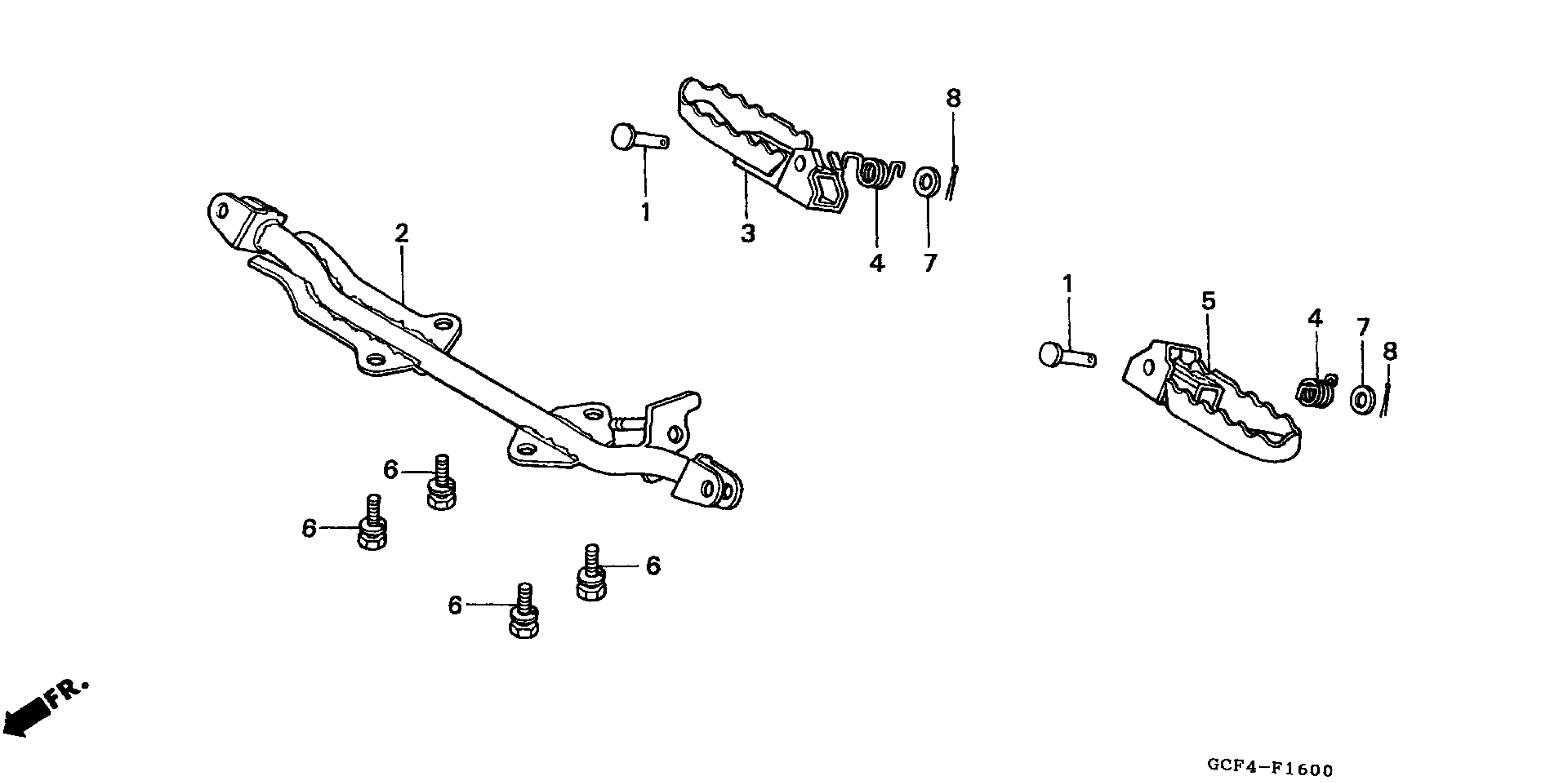

Honda XR70RA (98) MOTORCYCLE, JPN, VIN# JH2DE020-WK100001 TO JH2DE020-WK106234 STEP Diagram

#

Description

Price

1

PIN, STEP BAR JOINT This part replaces 50603-GN1-761.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

BAR, STEP This part replaces 50610-GW8-670.

50610-GCF-A20

Unavailable

2

BAR, STEP

50610-GCF-A20

Unavailable

3

ARM, R. STEP

50616-181-770

$37.05

4

SPRING, STEP RETURN This part replaces 50617-GW8-670.

50617-181-770

$6.67

4

SPRING, STEP RETURN

50617-181-770

$6.67

5

ARM, L. STEP

50642-181-770

$37.05

6

BOLT-WASHER (8X20) | Use up to Frame SN WK103332 This part replaces 93412-08020-00.

93402-08020-00

$1.92

6

BOLT-WASHER (8X20)

93402-08020-00

$1.92

7

WASHER, PLAIN (8MM)

94102-08700

$1.49

8

PIN, SPLIT (2.0X15)

94201-20150

$1.49
