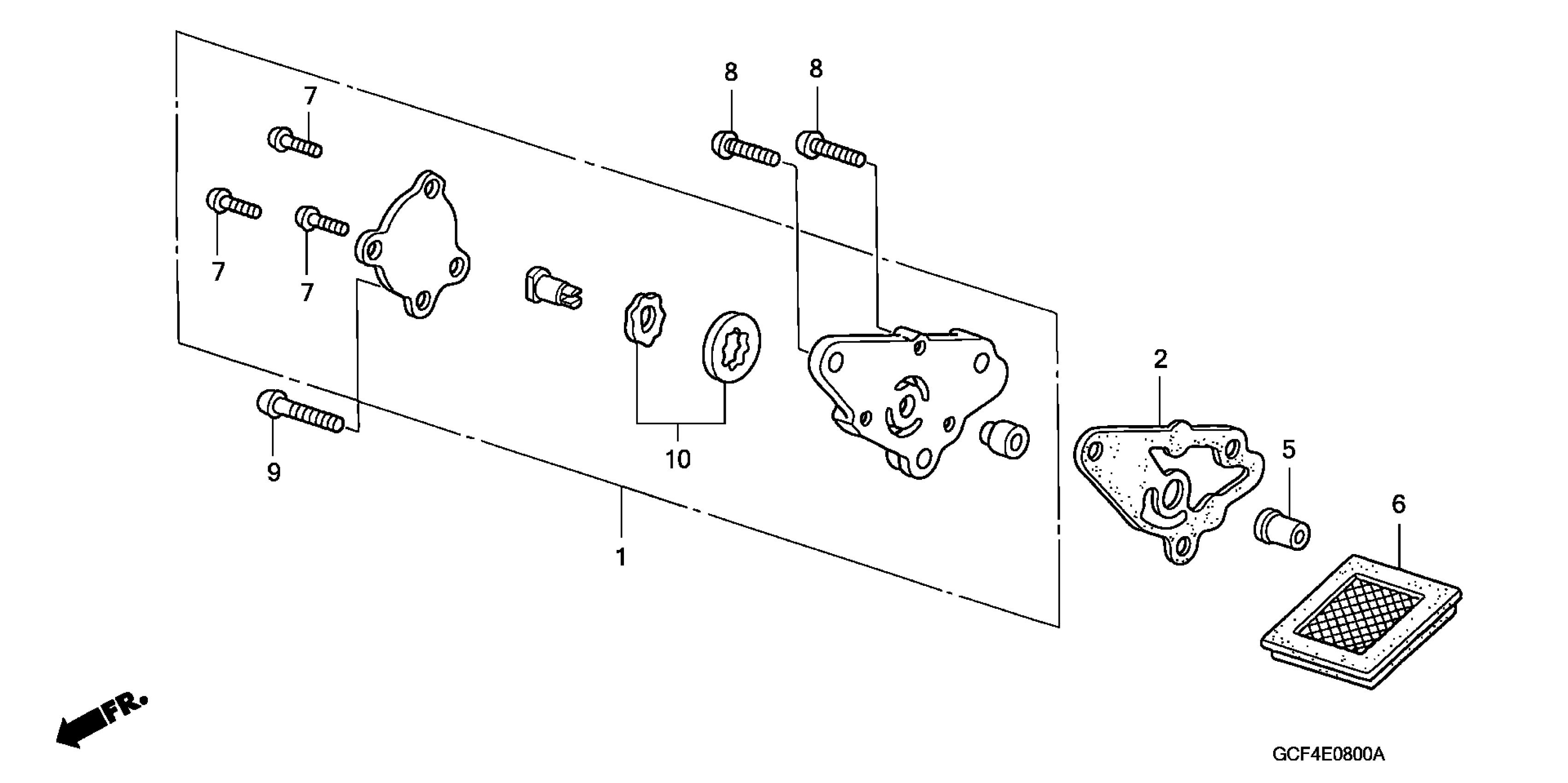

Honda XR70RA (03) MOTORCYCLE, JPN, VIN# JH2DE020-3K600001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-GB5-811

$42.98

2

GASKET, OIL PUMP BODY

15119-178-000

$3.68

3

ROTOR, OIL PUMP (INNER)

15331-436-000

Unavailable

4

ROTOR, OIL PUMP (OUTER)

15332-436-000

Unavailable

5

PIVOT, OIL PUMP

15384-178-000

$5.34

6

SCREEN, OIL FILTER

15421-035-010

Unavailable

7

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

8

SCREW, PAN (6X16)

93500-06016-0A

$1.06

9

SCREW, PAN (6X22)

93500-06022-0A

$1.13

10

ROTOR, OIL PUMP (INNER)

15331-436-000

Unavailable
