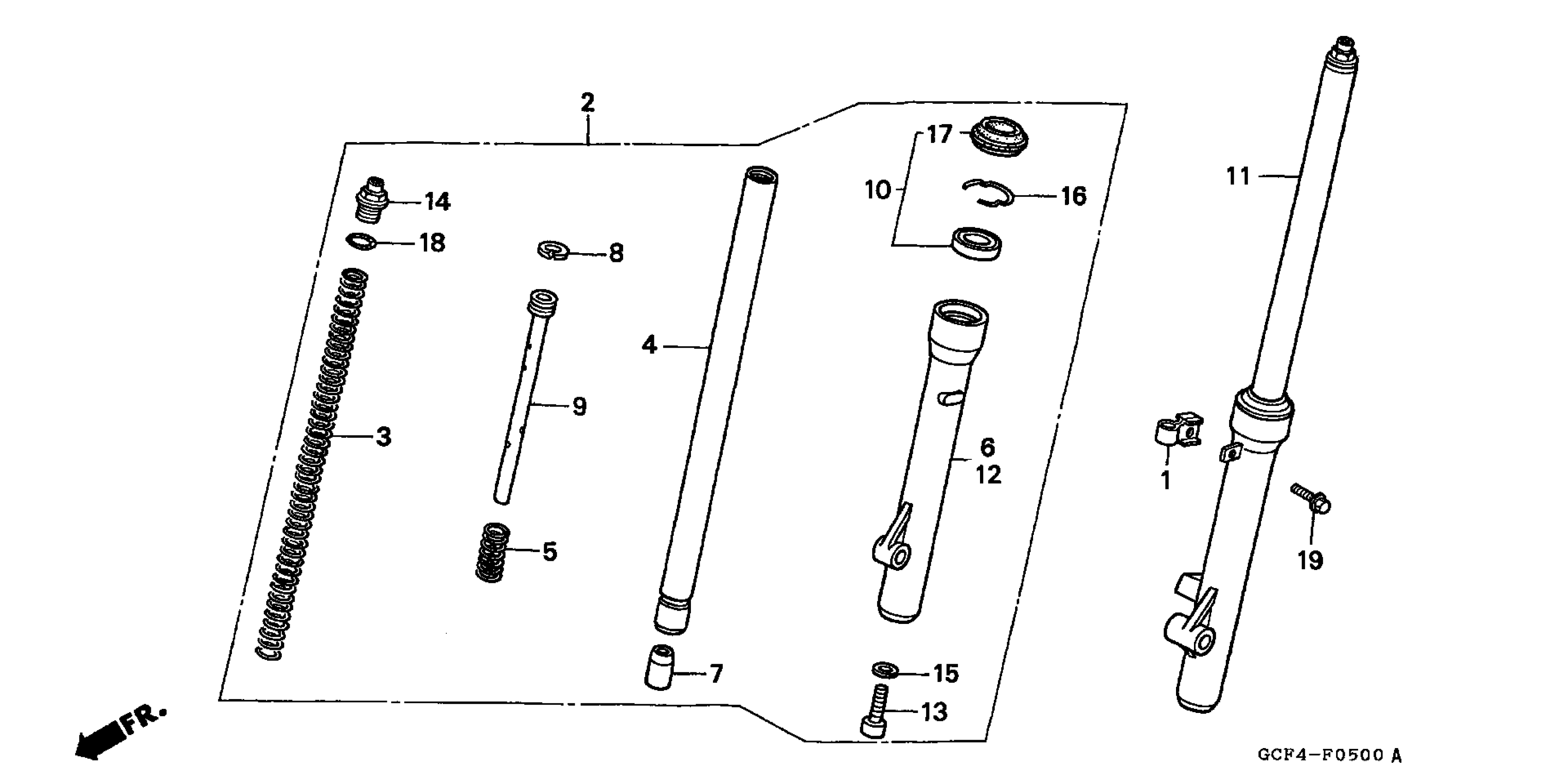

Honda XR70RA (03) MOTORCYCLE, JPN, VIN# JH2DE020-3K600001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, BRAKE CABLE

45461-GN1-000

$5.22

2

FORK ASSY., R. FR. (SHOWA)

51400-GCF-671

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-GCF-671

Unavailable

4

PIPE, FR. FORK

51410-GCF-671

Unavailable

5

SPRING, REBOUND (SHOWA)

51412-GCF-671

$8.69

6

CASE, R. FR. (LOWER) (COO) This part replaces 51420-GCF-671.

51420-GCF-305

Unavailable

7

PIECE, OIL LOCK (SHOWA)

51432-GN1-003

$20.48

8

RING, PISTON

51437-GM0-003

$5.07

8

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

9

PIPE, SEAT

51440-GCF-671

Unavailable

10

SEAL SET, FR. FORK (SHOWA)

51490-GZ0-305

$23.38

11

FORK ASSY., L. FR. (SHOWA)

51500-GCF-671

Unavailable

12

CASE, L. (LOWER) (COO)

51520-GCF-305

Unavailable

12

CASE, L. (LOWER) (COO) This part replaces 51520-GCF-671.

51520-GCF-305

Unavailable

13

BOLT, SOCKET (8X27)

90116-383-721

$5.13

14

BOLT, FORK

90123-198-003

$16.40

15

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

16

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

17

DUST SEAL (SHOWA)

91254-GN1-013

$13.86

18

O-RING (16.8X2.4)

91256-166-003

$2.39

19

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
