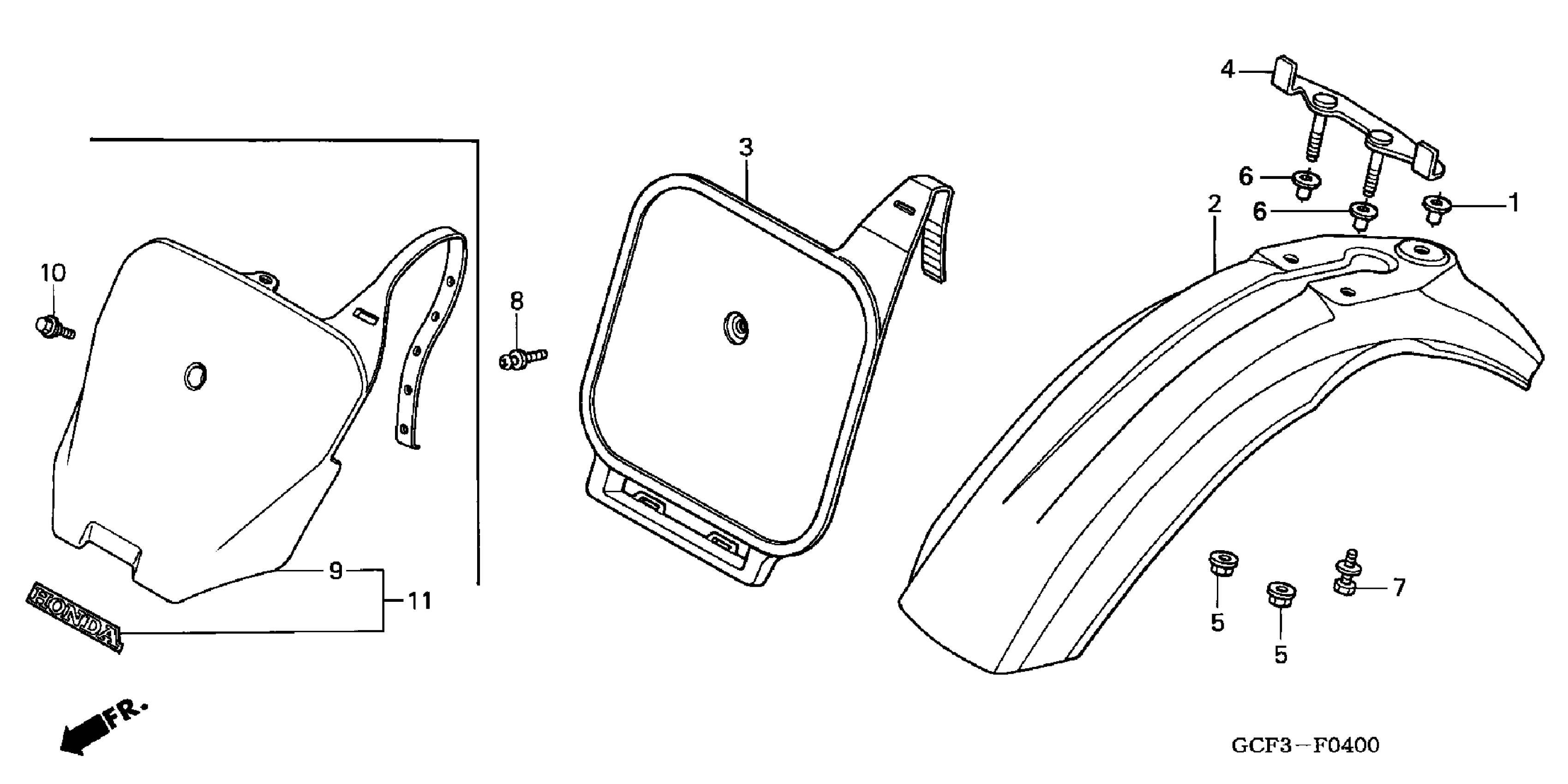

Honda XR70RA (03) MOTORCYCLE, JPN, VIN# JH2DE020-3K600001 FRONT FENDER Diagram

#

Description

Price

1

COLLAR, RESERVE TANK SETTING

19107-415-000

$2.95

2

FENDER, FR. R134 (FIGHTING RED)

61100-GCF-670ZB

Unavailable

4

STAY, FR. NUMBER PLATE

61139-GCF-A20

$4.88

5

NUT, FLANGE (6MM)

90302-187-000

$2.21

6

WASHER, NUMBER BRACKET MOUNTING

90563-045-000

$2.97

7

BOLT-WASHER (6X20)

93404-06020-00

$1.50

10

BOLT, FLANGE (5X9)

90508-GC8-000

$4.16

11

PLATE SET, FR. NUMBER NH196 (WL) (ROSS WHITE)

61140-KN4-A70ZB

$34.38
