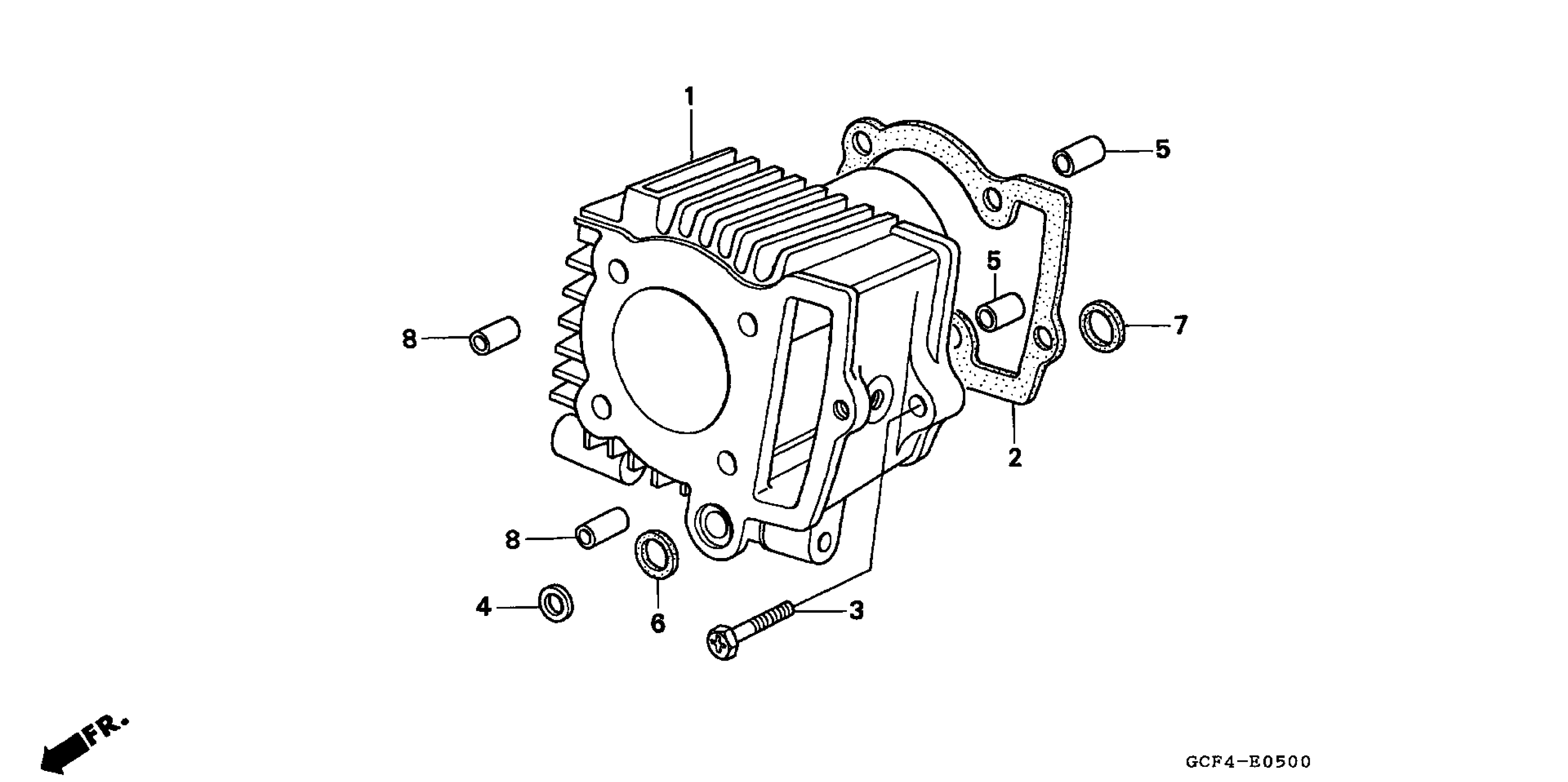

Honda XR70RA (03) MOTORCYCLE, JPN, VIN# JH2DE020-3K600001 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12101-GB0-910

$212.90

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GW8-682.

12191-GW8-683

$8.88

3

BOLT (6MM)

90082-035-010

$2.39

4

COLLAR (14.8MM)

90603-GB0-911

$3.10

5

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.19

5

PIN A, DOWEL (8X12)

94301-08120

$2.19

6

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.69

6

O-RING (14.5MM)

91301-GF6-003

$6.69

7

GASKET, RUBBER (16MM)

91303-035-000

$4.87

8

PIN, DOWEL (8X14)

94301-08140

$2.25
