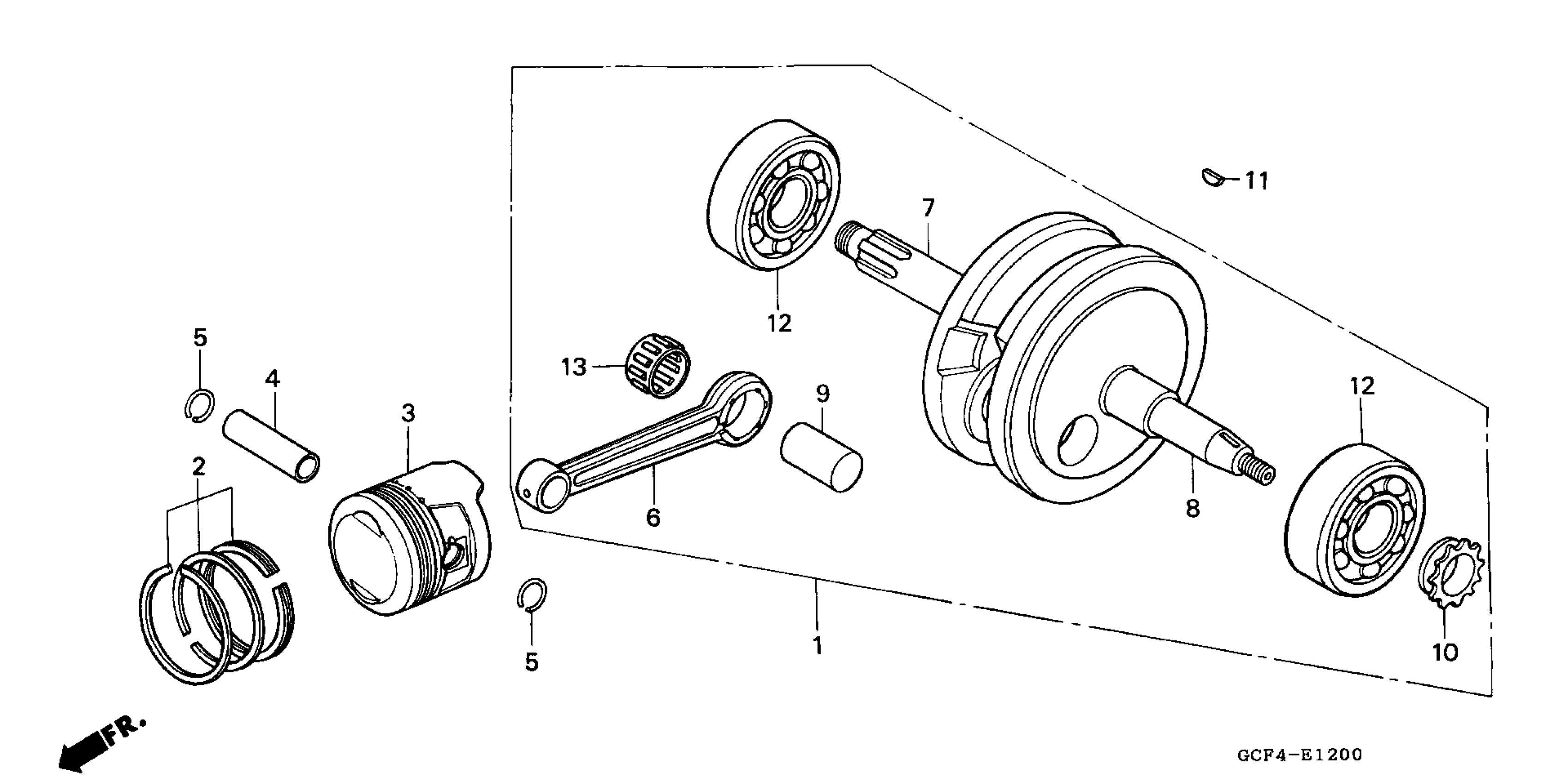

Honda XR70RA (03) MOTORCYCLE, JPN, VIN# JH2DE020-3K600001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-GB5-930

Unavailable

2

RING SET, PISTON (STD) (RIKEN)

13011-GCF-A20

$38.68

2

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-GCF-A20

$36.12

2

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-GCF-A20

$36.12

2

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13041-GCF-A20

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-GCF-A20

Unavailable

3

PISTON (STD) (ART)

13101-GCF-A20

$45.37

3

PISTON (0.25) (ART) | (Optional).

13102-GCF-A20

$48.44

3

PISTON (0.50) (ART) | (Optional).

13103-GCF-A20

$48.44

3

PISTON (0.75) (ART) | (Optional).

13104-GCF-A20

Unavailable

3

PISTON (1.00) (ART) | (Optional).

13105-GCF-A20

$48.44

4

PIN, PISTON

13111-GB0-910

$10.72

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$0.50

5

CLIP, PISTON PIN (13MM)

94601-13000

$0.50

6

ROD, CONNECTING

13201-GF6-300

$76.85

7

CRANKSHAFT, R.

13311-GB5-930

$124.37

8

CRANKSHAFT, L.

13321-GB5-930

Unavailable

9

PIN, CRANK

13381-GF6-300

$35.57

10

SPROCKET, TIMING (14T)

14311-KEV-900

$9.24

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.62

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.62

11

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.62

12

BEARING, RADIAL BALL (6304)

91001-GF6-004

$18.79

12

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$18.79

13

BEARING, CONNECTING ROD (RED)

91101-GF6-003

$21.37

13

BEARING, CONNECTING ROD (BLUE)

91102-GF6-003

$21.37

13

BEARING, CONNECTING ROD (WHITE)

91103-GF6-003

$21.37
