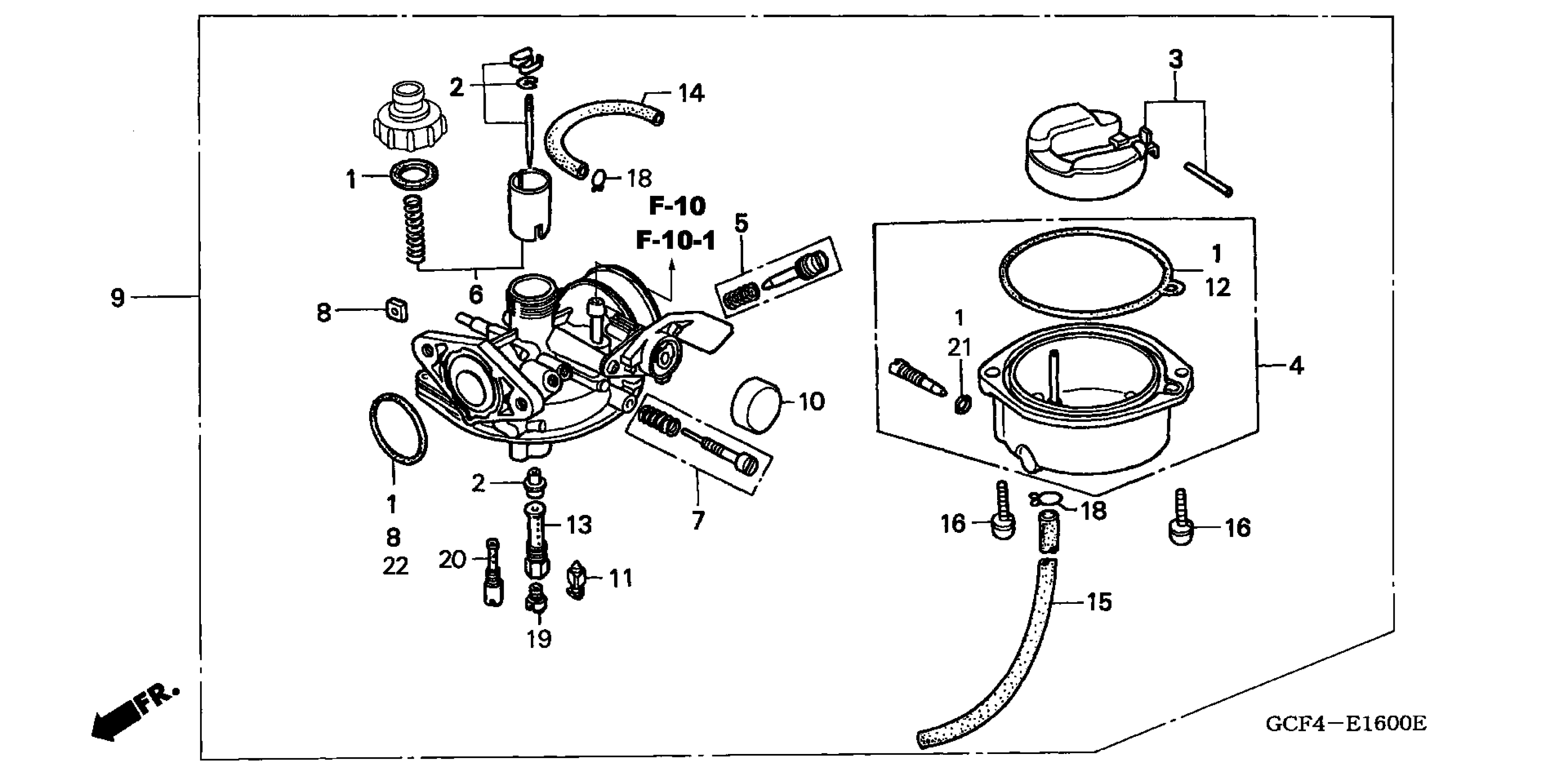

Honda XR70RA (03) MOTORCYCLE, JPN, VIN# JH2DE020-3K600001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-065-930.

16010-141-305

$40.93

1

GASKET SET

16010-141-305

$40.93

2

NEEDLE SET, JET

16012-GCF-670

$24.51

3

FLOAT SET

16013-883-005

$26.71

4

CHAMBER SET, FLOAT

16015-GCF-670

$72.57

5

SCREW SET A

16016-GB4-003

$21.26

6

VALVE SET, THROTTLE This part replaces 16022-GCF-670.

16022-GCF-671

$28.49

6

VALVE SET, THROTTLE

16022-GCF-671

$28.49

7

SCREW SET B

16028-GC8-004

$15.02

7

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$15.02

8

NUT SET, SQUARE

16041-GBJ-680

$4.72

9

CARBURETOR ASSY. (PB12H C) This part replaces 16100-GCF-670.

16100-GCF-672

$170.97

9

CARBURETOR ASSY. (PB12H C) This part replaces 16100-GCF-671.

16100-GCF-672

$170.97

9

CARBURETOR ASSY. (PB12H C)

16100-GCF-672

$170.97

10

CAP, CHOKE DUST

16148-141-881

$4.54

11

VALVE, FLOAT

16155-883-005

$18.46

12

GASKET, FLOAT CHAMBER

16163-GBG-960

$10.19

13

HOLDER, NEEDLE JET

16165-GCF-670

$21.93

14

TUBE, AIR VENT

16199-GCF-670

$5.21

15

TUBE, FUEL This part replaces 16199-159-701.

16199-KG4-405

$8.73

16

SCREW-WASHER (4X14)

93892-04014-08

$1.01

16

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.01

18

CLIP, TUBE (B6.5)

95002-02659

$1.01

19

JET, MAIN (#60) | (Optional).

99102-GHB-0600

$8.70

19

JET,MAIN,#62 This part replaces 99102-GHB-0620.

99101-GFG-0620

$7.43

20

JET,#38 This part replaces 99103-GB0-0380.

99103-GBZ-0380

$13.25

21

O-RING (1.3X4.3)

16075-GHB-640

$2.69

22

O-RING (1.9X20.6)

16075-GHB-870

$4.35
