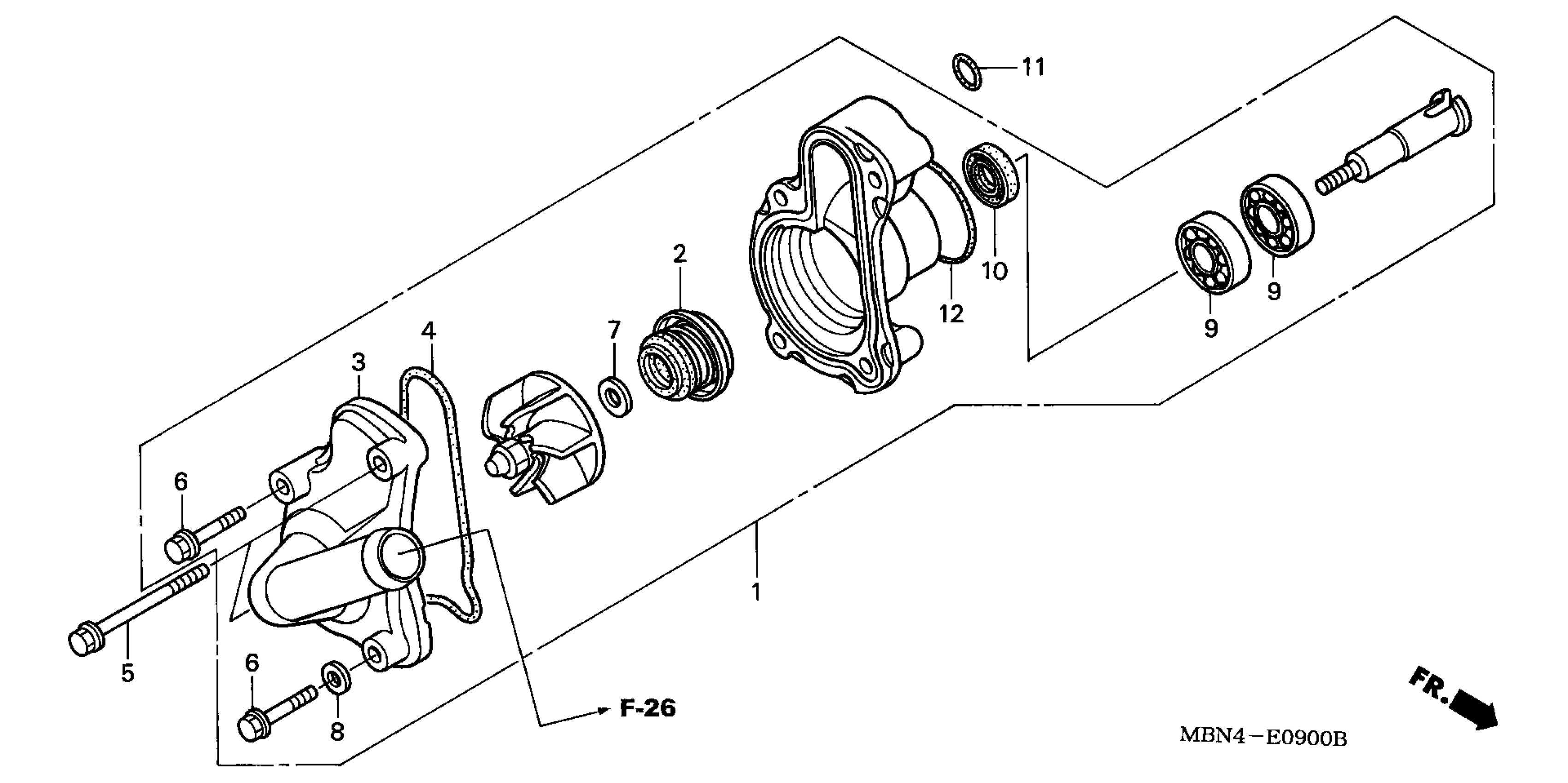

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 WATER PUMP Diagram

#

Description

Price

1

WATER PUMP ASSY.

19200-MBN-670

$273.74

2

SEAL, MECHANICAL

19217-MAL-300

$53.03

3

COVER, WATER PUMP

19221-MBN-670

Unavailable

4

GASKET, WATER PUMP COVER

19226-MBN-670

$7.58

5

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

6

BOLT, FLANGE (6X32) (CT200)

90017-883-000

$2.68

7

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

8

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

9

BEARING, RADIAL BALL (6001ZZ)

91053-SM4-951

$47.92

10

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

10

OIL SEAL (12X22X5)

91201-965-000

$4.06

11

O-RING (22X2) (ARAI)

91301-GK1-003

$2.89

12

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92
