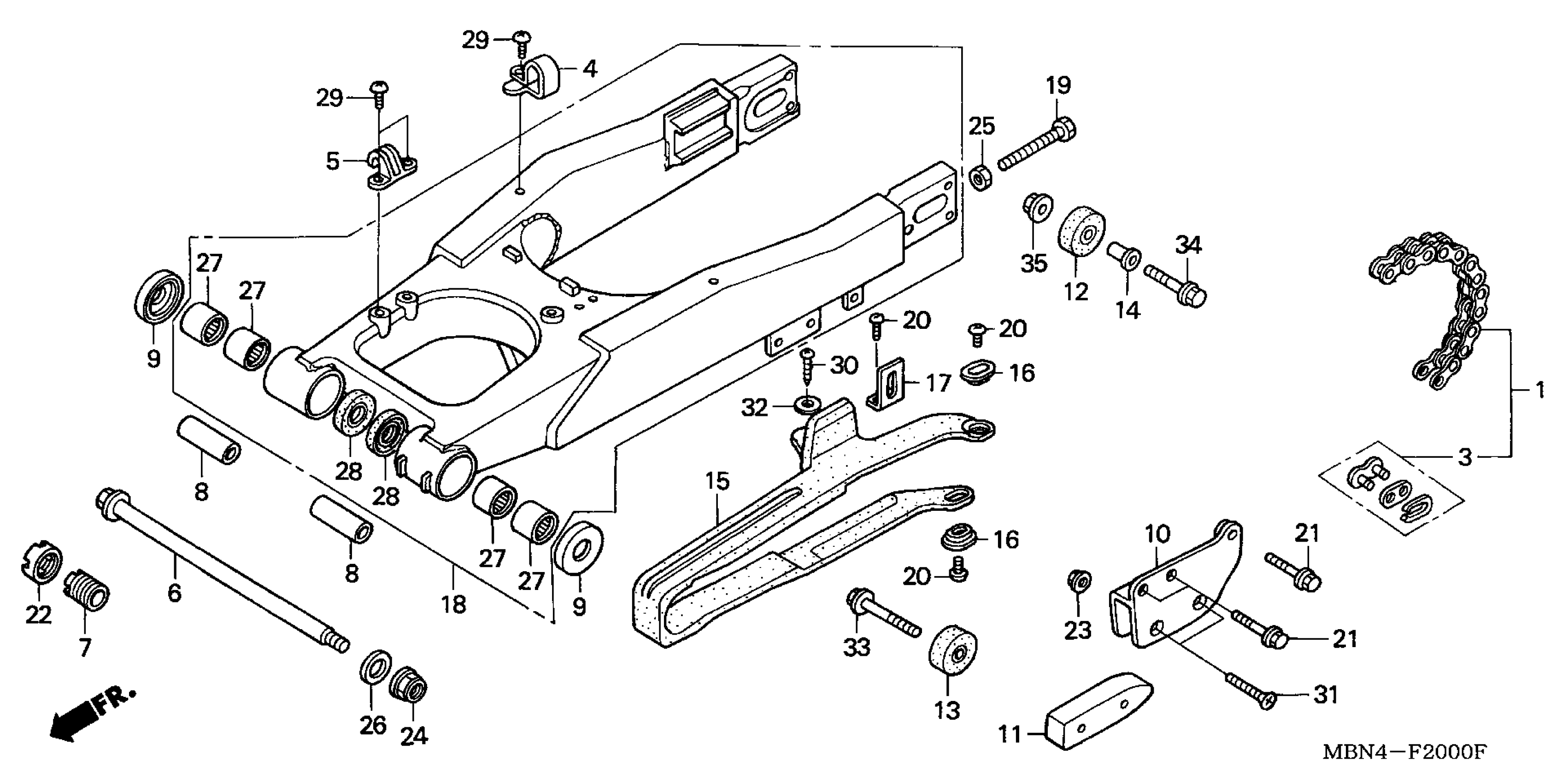

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 SWINGARM Diagram

CHAIN SET, DRIVE (DID520VM-110ZB) (DAIDO) (STANDARD LINK 110L) (NOT AVAILABLE)

06405-MBN-P00

Unavailable

CHAIN SET, DRIVE (RK520KZ0-110LJFZ) (RK EXCEL) (STANDARD LINK 110L) (NOT AVAILABLE)

06405-MBN-P10

Unavailable

MASTER LINK (RK EXCEL)

40535-HP6-A02

Unavailable

MASTER LINK (RK EXCEL) This part replaces 40535-MBN-671.

40535-HP6-A02

Unavailable

MASTER LINK (RK EXCEL) This part replaces 40535-MBN-672.

40535-HP6-A02

Unavailable

GUIDE, BRAKE HOSE

43468-KFB-000

$4.61

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$10.16

BOLT, SWINGARM PIVOT

52101-MBN-670

$20.97

BOLT, PIVOT ADJUSTING

52109-MBN-670

Unavailable

COLLAR, PIVOT

52141-MBN-670

$14.91

CAP, DUST SEAL

52145-MBN-671

$9.20

GUIDE, CHAIN

52146-KT1-770

$33.68

SLIDER, CHAIN GUIDE

52147-KN5-005

$13.16

ROLLER, CHAIN

52158-HC0-000

$10.63

ROLLER, CHAIN TENSIONER

52158-KA3-831

$45.89

COLLAR, CHAIN ROLLER

52159-467-000

$10.37

SLIDER, CHAIN

52170-MBN-670

$57.53

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

PLATE, CHAIN SLIDER

52175-MBN-670

$2.61

SWINGARM SUB-ASSY.

52200-MBN-650

Unavailable

SWINGARM SUB-ASSY. This part replaces 52200-MBN-670.

52200-MBN-650

Unavailable

BOLT, HEX. (8X49)

90106-KS6-700

$5.30

SCREW, PAN (5X8)

90115-KV3-700

$2.38

BOLT, FLANGE (6X16)

90181-HB9-770

$2.29

NUT, LOCK

90301-MBN-670

$6.58

NUT, U (6MM)

90301-473-003

$3.79

NUT, U (18MM)

90305-KZ4-891

$14.21

NUT, HEX. (8MM)

90309-357-000

$3.16

WASHER (18X32X2)

90401-KZ4-890

$4.16

BEARING, NEEDLE

91071-MBN-671

$22.97

DUST SEAL (25X32X4)

91262-KZ3-731

$6.98

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

SCREW, PAN (5X12)

93500-05012-0G

$0.83

SCREW, FLAT (6X45)

93600-06045-0A

$0.86

WASHER, PLAIN (5MM)

94103-05700

$0.86

BOLT, FLANGE (8X40)

96400-08040-00

$1.84

BOLT, FLANGE (8X45)

96400-08045-07

$1.70

NUT, FLANGE (8MM)

94050-08000

$0.86
