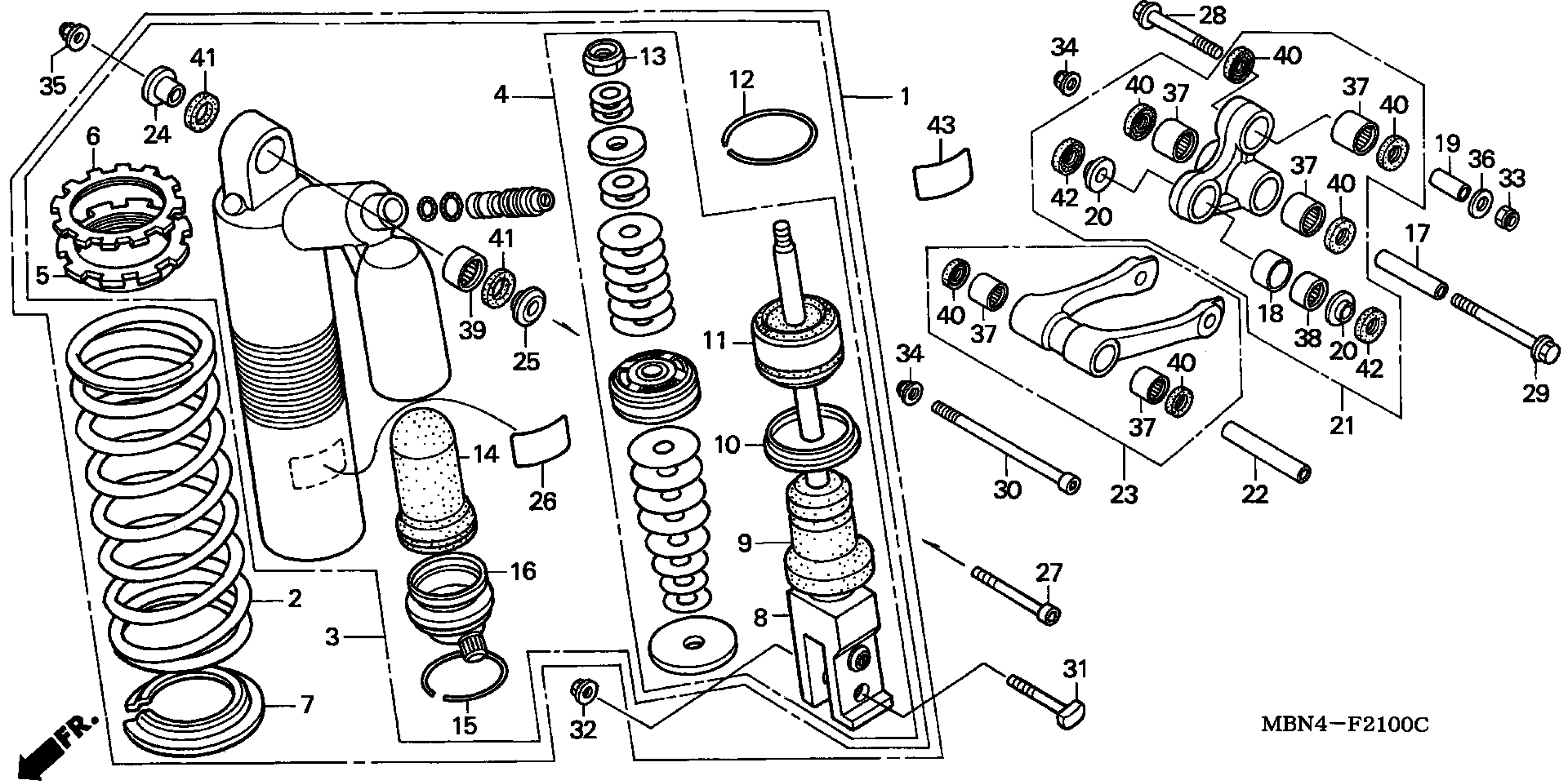

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR.

52400-MBN-671

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-MBN-671

Unavailable

3

DAMPER, RR.

52410-MBN-671

Unavailable

4

ROD, PISTON

52421-MBN-671

$488.69

5

SEAT, SPRING (UPPER)

52422-KS6-701

Unavailable

6

NUT, ADJUSTER

52423-KS6-701

Unavailable

7

SEAT, SPRING (LOWER)

52424-KS6-701

Unavailable

8

ROD

52426-MBN-671

$444.74

9

RUBBER, BUMPER

52427-KZ4-901

$13.93

10

CAP, CASE

52428-MBN-671

Unavailable

11

CASE, ROD GUIDE

52429-MBN-671

$21.52

12

RING, SNAP (KAYABA)

52435-ML3-791

Unavailable

13

NUT, HEX. (12MM)

52438-KA3-731

$3.10

14

BLADDER

52451-KZ4-003

$30.00

15

RING, SNAP

52452-KZ4-003

Unavailable

16

CAP, BLADDER

52453-MBN-671

Unavailable

17

COLLAR B, CUSHION ARM

52462-MBN-670

Unavailable

18

COLLAR D, CUSHION

52463-KZ4-B00

$3.27

19

COLLAR, CUSHION ARM PIVOT

52464-GBF-830

Unavailable

20

COLLAR D, CUSHION SIDE

52464-KZ4-B00

$3.83

21

ARM SET, CUSHION

52465-MBN-670

Unavailable

22

COLLAR, SHOCK CONNECTING ROD

52473-MBN-670

Unavailable

23

ROD SUB-ASSY., SHOCK CONNECTING

52475-MBN-670

Unavailable

24

COLLAR A, CUSHION (UPPER)

52486-GBF-830

$7.23

25

COLLAR B, CUSHION (UPPER)

52487-GBF-830

$6.19

26

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

27

BOLT, SOCKET (10X48)

90126-MBN-670

$1.95

28

BOLT, FLANGE (12X81)

90127-MBN-670

Unavailable

29

BOLT, FLANGE (12X99)

90128-MBN-670

Unavailable

30

BOLT, SOCKET (12X104)

90129-MBN-670

Unavailable

31

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

32

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

33

NUT, HEX. (12MM) This part replaces 90306-KBP-901.

90306-GAB-711

$9.10

34

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

35

NUT, U (10MM)

90306-KZ4-711

$3.74

36

WASHER, PLAIN (12MM)

90504-SF4-000

$6.45

37

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$18.51

38

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$21.68

39

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

40

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

41

DUST SEAL, RR. CUSHION (UPPER)

91351-GS2-701

$4.48

42

DUST SEAL (17X26X3)

91351-KZ4-B01

$4.17
