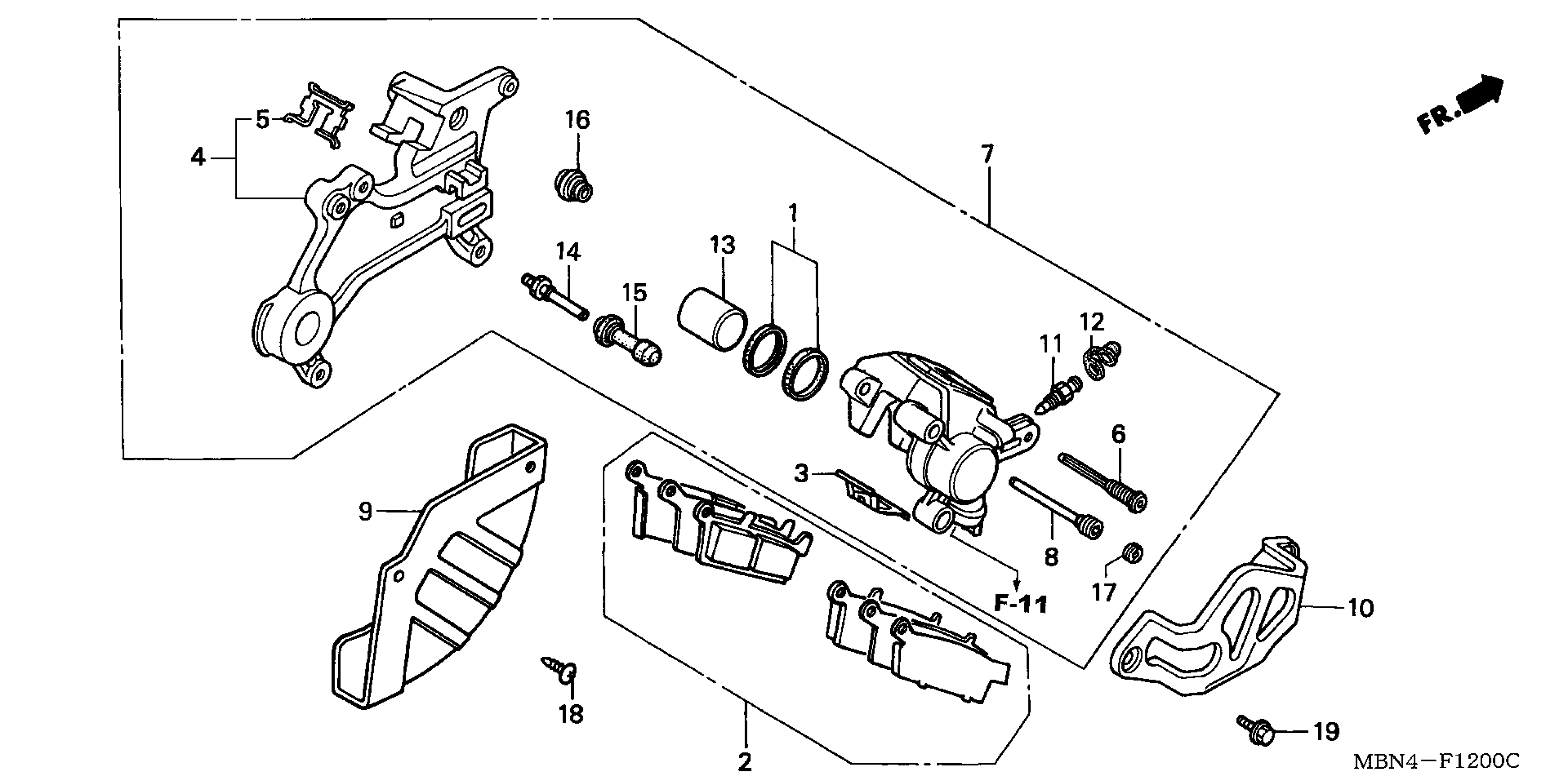

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 REAR BRAKE CALIPER Diagram

SEAL SET, PISTON

06431-MA3-405

$7.00

PAD SET, RR. BRAKE This part replaces 43105-KZ1-405.

43105-KZ1-415

$34.31

PAD SET, RR. BRAKE

43105-KZ1-415

$34.31

SPRING, PAD

43108-MY6-671

$5.04

BRACKET, RR.

43110-KZ3-B01

Unavailable

RETAINER

43112-KS6-701

$5.80

BOLT, PIN

43131-KW3-006

$9.48

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-KZ3-B01

Unavailable

PIN, HANGER

43215-ML3-911

$10.74

COVER, RR. DISK

43330-KS6-700

$23.41

GUARD, RR. CALIPER *TNATURAL* (NATURAL)

43340-KZ3-B00ZA

$18.43

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON

45107-ML4-006

$34.77

BOLT, PIN

45131-166-016

$7.28

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MG3-016

$4.88

SCREW, SPECIAL (6X10)

90101-KS6-700

$2.34

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable
