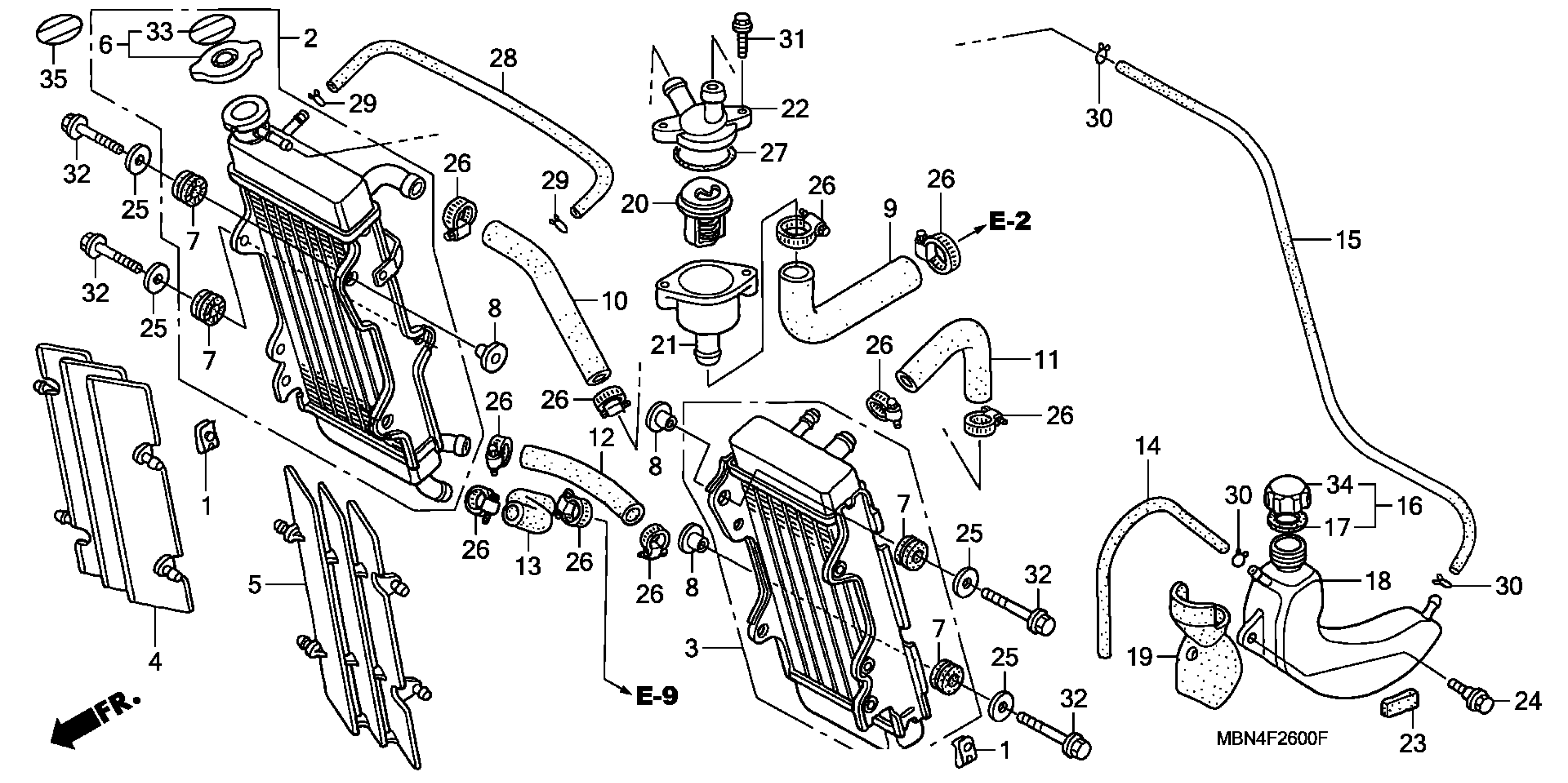

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 RADIATOR + THERMOSTAT Diagram

NUT, CHAMBER SPRING

18354-KS6-000

$4.98

RADIATOR, R.

19010-MBN-505

Unavailable

RADIATOR, R. This part replaces 19010-MBN-671.

19010-MBN-505

Unavailable

RADIATOR, L.

19015-MBN-670

Unavailable

GRILLE, R. RADIATOR

19033-MBN-670

$68.52

GRILLE, L. RADIATOR

19034-MBN-670

$68.52

CAP, RADIATOR

19037-GEE-710

$30.28

CAP, RADIATOR This part replaces 19045-MV9-921.

19037-GEE-710

$30.28

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

HOSE, THERMOSTAT

19061-MBN-670

$9.48

HOSE, R. (UPPER)

19062-MBN-670

$9.48

HOSE, L. (UPPER)

19063-MBN-670

$7.02

HOSE, R. (LOWER)

19064-MBN-670

$7.80

HOSE, WATER PUMP

19065-MBN-670

$6.21

TUBE, RESERVE TANK BREATHER

19104-MBN-670

Unavailable

TUBE, RADIATOR BREATHER

19105-MBN-670

$5.98

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

GASKET, RESERVE TANK

19107-MG8-000

$5.05

TANK, RADIATOR RESERVE

19110-MBN-670

$47.40

GUARD, RESERVE TANK

19111-MBN-670

Unavailable

THERMOSTAT ASSY.

19300-ML7-003

$49.22

CASE, THERMOSTAT

19311-MBN-670

Unavailable

COVER, THERMOSTAT

19315-MBN-670

$55.20

SEAL, SADDLEBAG

81215-MZ0-700

$1.49

BOLT, FLANGE (6MM)

90111-162-000

$2.89

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

CLAMP, WATER HOSE

90670-GHB-650

$3.27

O-RING (47.5X2)

91311-KE8-000

$2.39

BULK HOSE, FUEL (7.5X8000) (7.3X230)

95001-75008-60M

$103.82

CLIP, TUBE (A13)

95002-01130

$4.17

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

BOLT, FLANGE (6X26.5)

90005-KGB-610

Unavailable

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$9.22

CAP, RESERVE TANK

19104-ME9-000

$16.36
