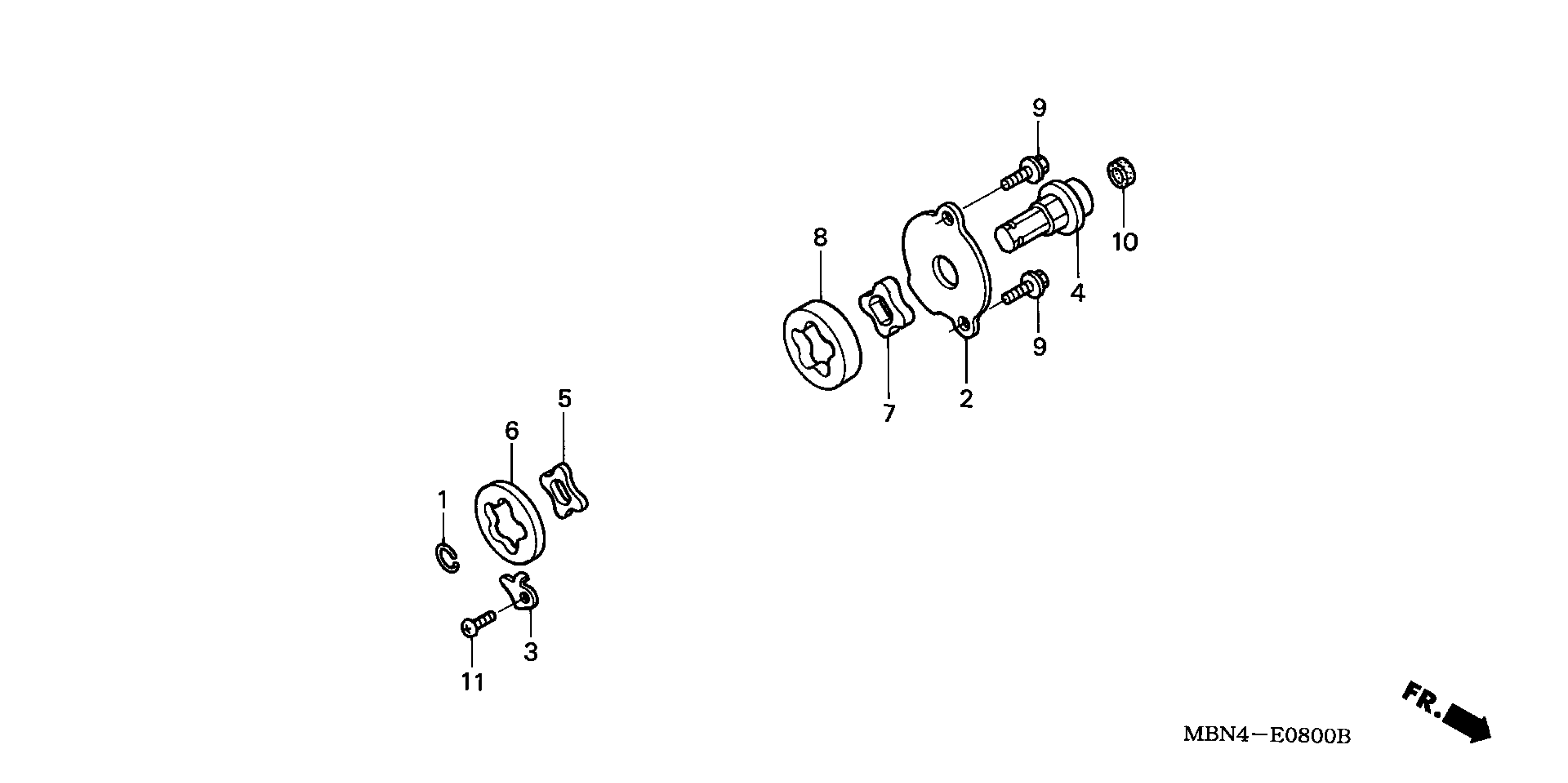

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 OIL PUMP Diagram

#

Description

Price

1

CLIP, VALVE GUIDE

12211-250-310

$4.39

2

PLATE, OIL PUMP

15102-MBN-670

$2.54

3

PLATE A, OIL PUMP

15103-MBN-670

$1.52

4

SHAFT, OIL PUMP

15111-MBN-670

Unavailable

5

ROTOR A, OIL PUMP (INNER)

15115-MBN-671

$13.52

6

ROTOR A, OIL PUMP (OUTER)

15116-MBN-671

$23.34

7

ROTOR B, OIL PUMP (INNER)

15121-MBN-671

$17.51

8

ROTOR B, OIL PUMP (OUTER)

15122-MBN-671

$25.62

9

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.42

10

OIL SEAL (6X11X4) (ARAI)

91231-891-003

$2.33

11

SCREW, PAN (4X8)

93500-04008-0A

$1.49

11

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49
