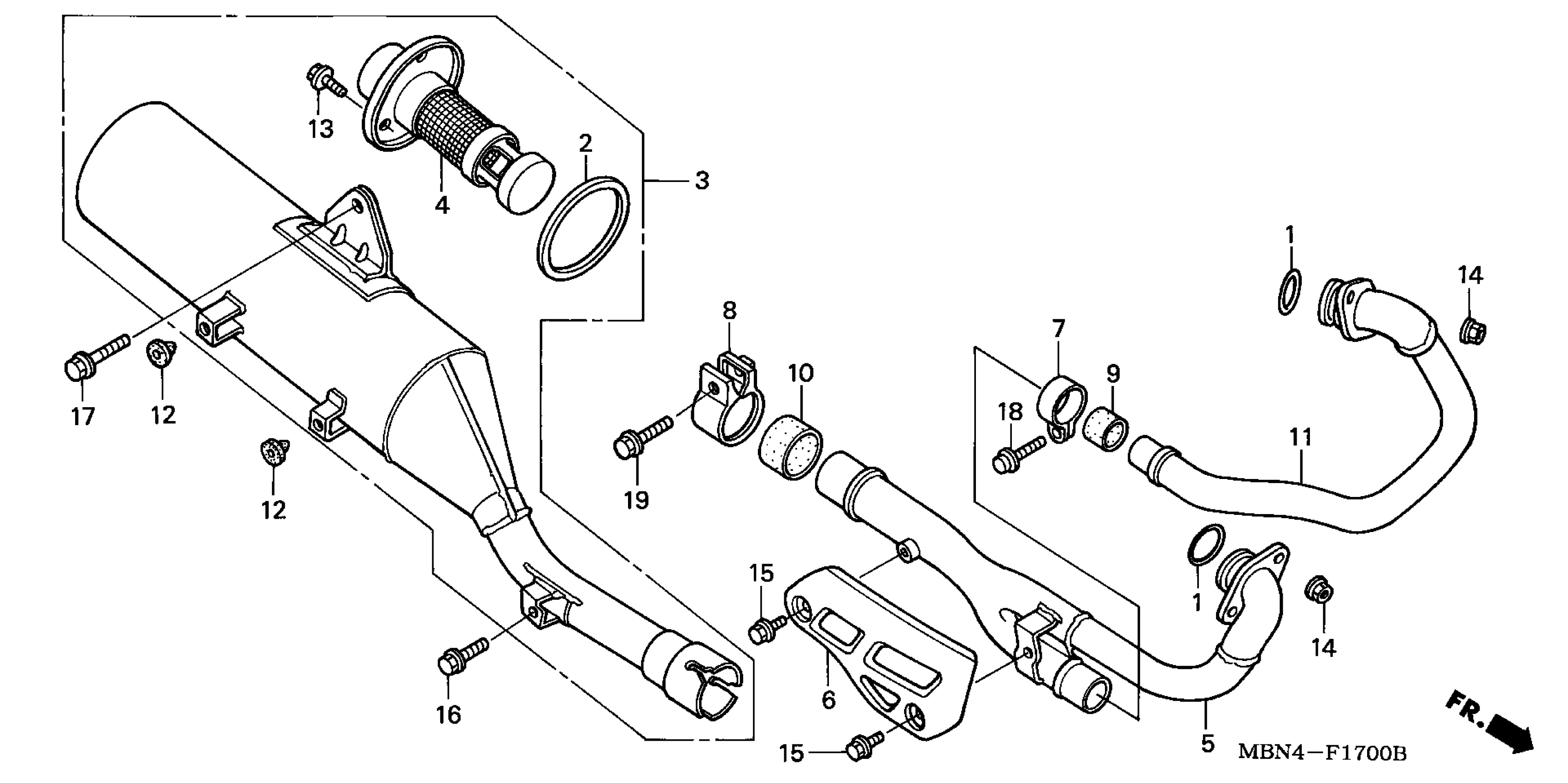

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN5-650

$3.52

GASKET, MUFFLER

18292-MV4-000

$7.79

MUFFLER ASSY.

18300-MBN-671

Unavailable

ARRESTER, SPARK

18317-MBN-670

Unavailable

PIPE, R. EX.

18320-MBN-670

Unavailable

PROTECTOR, EX. PIPE

18325-MBN-670

Unavailable

BAND, L. EX. PIPE

18374-MN1-670

$12.95

BAND, R. RR. MUFFLER

18375-MG7-000

$27.00

GASKET, EX.

18391-MB0-891

$16.08

GASKET, MUFFLER

18392-MG7-750

$12.26

PIPE, L. EX.

18420-MBN-670

Unavailable

RUBBER, SIDE COVER

83512-KA4-700

$4.26

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

NUT, FLANGE (8MM)

94050-08000

$0.86

BOLT, FLANGE (6X10)

96001-06010-02

$1.41

BOLT, FLANGE (8X20)

96300-08020-07

$1.83

BOLT, FLANGE (8X28)

96300-08028-00

$1.62

BOLT, FLANGE (8X35)

96300-08035-00

$1.78

BOLT, FLANGE (8X40)

96300-08040-00

$1.94
