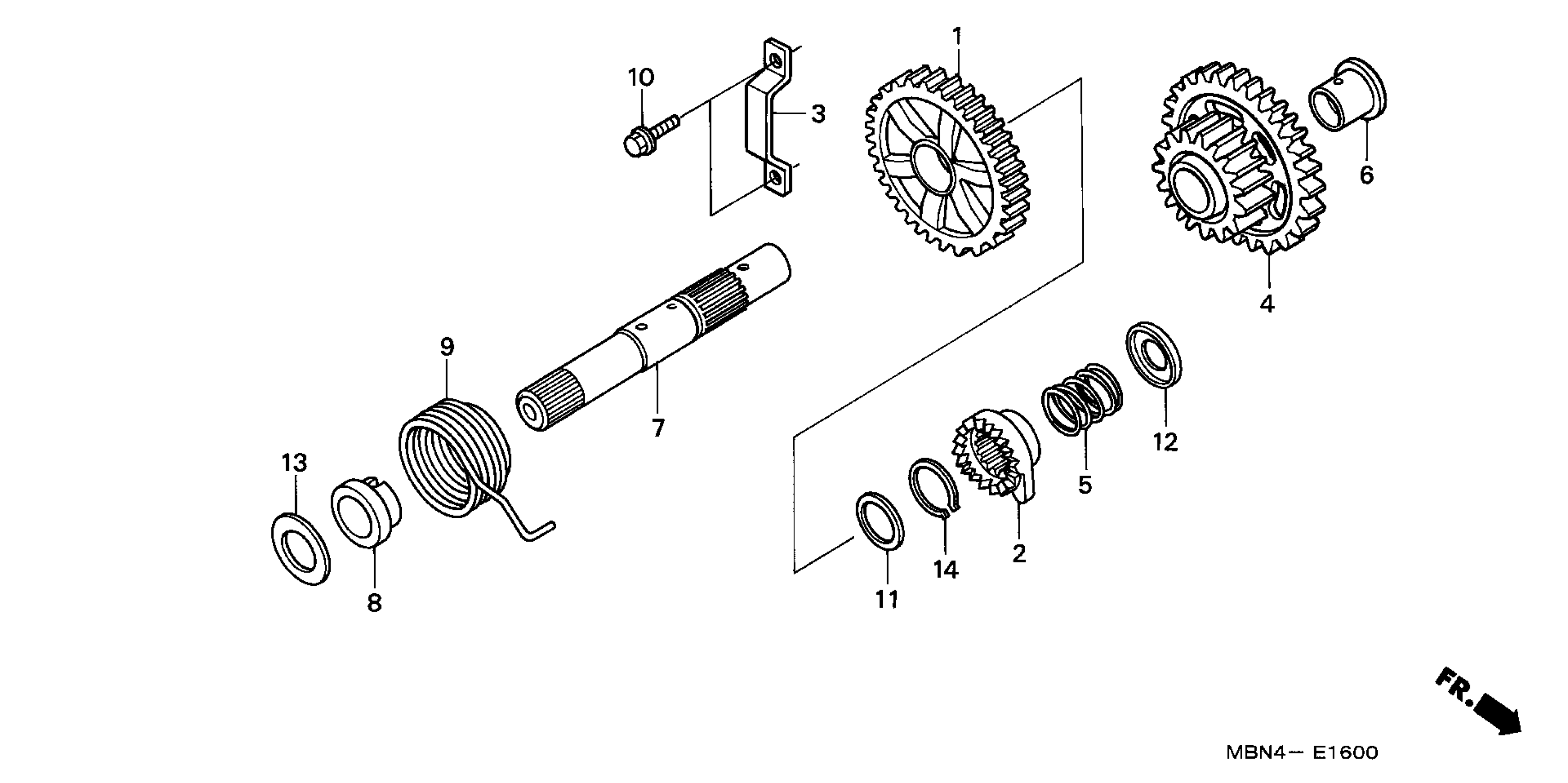

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER (35T)

28211-MBN-670

Unavailable

RATCHET, KICK STARTER

28213-KCY-670

Unavailable

PLATE, KICK STOPPER

28215-MBN-670

$11.84

GEAR, KICK STARTER IDLE (36/24T)

28220-MBN-670

Unavailable

SPRING, KICK STARTER RATCHET

28223-KK0-000

Unavailable

COLLAR, KICK STARTER IDLE GEAR

28224-MBN-670

Unavailable

SPINDLE, KICK STARTER

28251-MBN-670

Unavailable

COLLAR, KICK STARTER

28255-KCY-670

Unavailable

SPRING, KICK STARTER

28261-MBN-670

Unavailable

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

WASHER, THRUST (20MM)

90454-428-000

$2.53

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

CIRCLIP (22MM)

90601-329-000

$2.67
