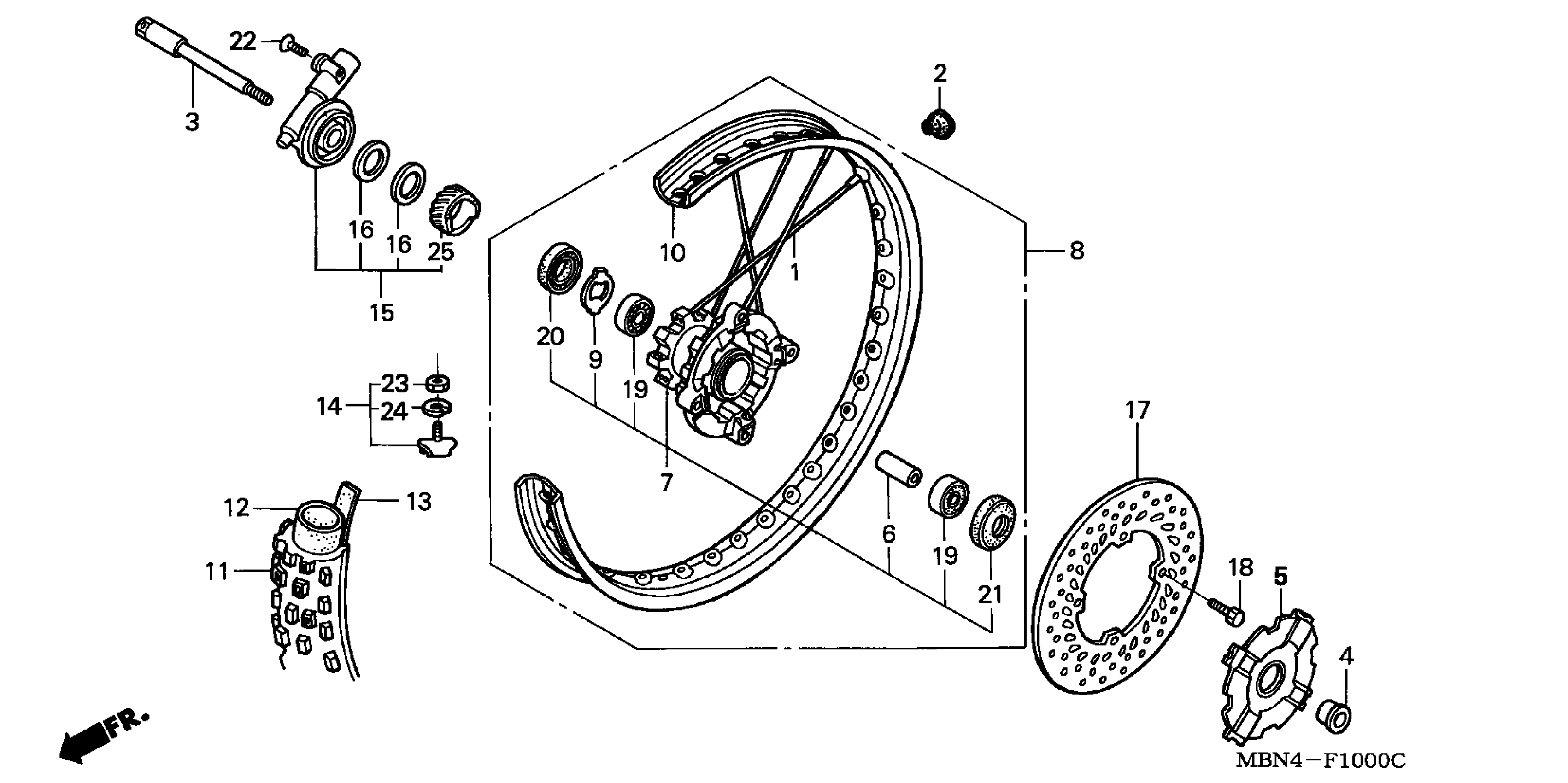

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET, FR. (E10X249)

06440-KCY-670

$5.82

2

CAP, VALVE

42714-KA3-710

$10.46

3

AXLE, FR. WHEEL

44301-MBN-670

$68.80

4

COLLAR, FR. WHEEL

44311-KAE-870

$15.42

5

COVER, FR. HUB *NH1* (BLACK)

44610-KW3-010ZB

$14.05

6

COLLAR, FR. AXLE DISTANCE

44620-KAE-770

Unavailable

7

HUB SUB-ASSY., FR.

44635-MBN-670

Unavailable

8

WHEEL SUB-ASSY., FR. (NOT AVAILABLE)

44650-MBN-670

Unavailable

9

RETAINER, GEAR BOX

44680-MA0-000

$7.41

10

RIM, FR. WHEEL

44701-MN1-671

Unavailable

11

TIRE, FR. (80/100-21) (D739FAJ 51M) (DUNLOP)

44711-MBN-671

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

13

FLAP, TIRE (80/100-21) (DUNLOP)

44713-KS6-641

$6.08

14

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

15

BOX ASSY., SPEEDOMETER GEAR

44800-MBN-671

$97.23

16

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

17

DISK, FR. BRAKE

45351-KZ1-771

Unavailable

18

BOLT, DISK (6X17)

90105-KAE-870

$2.92

19

BEARING, RADIAL BALL (6003-SH2)

91065-KA3-832

$15.72

20

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

20

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

20

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

21

DUST SEAL (24X37X7) (NOK)

91259-KS6-831

$9.19

22

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

25

GEAR, SPEEDOMETER

44806-KF0-000

$35.39
