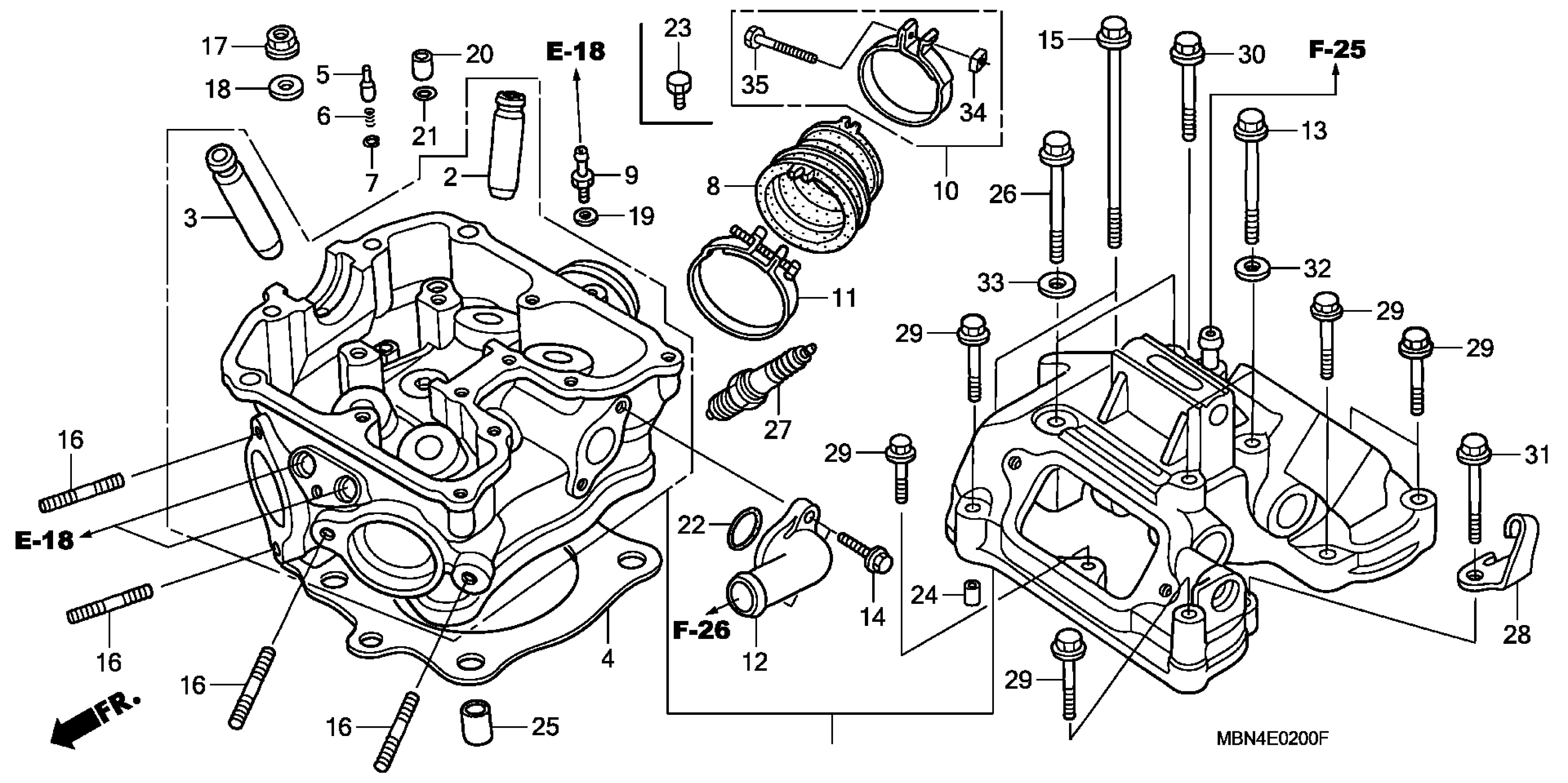

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MBN-770

Unavailable

GUIDE, IN. VALVE (OVER SIZE)

12231-MG8-305

$19.68

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

GUIDE, IN VALVE

12233-MG8-405

Unavailable

GASKET, CYLINDER HEAD

12251-MBN-671

$39.00

PLUNGER, CAM SETTING

14125-MBN-670

Unavailable

SPRING, PLUNGER

14126-MBN-670

Unavailable

CLIP (6MM)

14127-MBN-670

Unavailable

INSULATOR, CARBURETOR

16210-MBN-670

Unavailable

JOINT, BOOST

16214-MB0-000

$4.56

BAND B, INSULATOR

16218-MAT-000

$7.51

BAND, INSULATOR

16219-MBB-000

$10.91

JOINT, WATER

19501-MBN-670

$16.37

BOLT, SPECIAL (6X62)

90001-MBN-670

Unavailable

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.81

BOLT, FLANGE (6X110) (NSHF)

90004-GHB-840

$2.69

BOLT, STUD (8X25)

90015-MM9-000

$3.91

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.43

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.43

NUT, FLANGE (10MM)

94050-10000

$1.43

WASHER (10X24)

90403-KM9-000

$8.21

WASHER, SEALING (5MM)

90452-323-000

$1.54

PIN, DOWEL (6X15)

90702-MG8-000

$2.83

O-RING (5.8X1.9)

91305-323-000

$2.80

O-RING

91356-169-003

$2.80

PIN, DOWEL (8X14)

94301-08140

$2.62

PIN, DOWEL (14X20)

94301-14200

$2.80

BOLT, FLANGE (8X70)

95701-08070-00

$3.14

SPARK PLUG (BKR7E-11) (NGK)

98079-5714E

$2.80

SPARK PLUG (K22PR-U11) (DENSO)

98079-5715E

$2.80

SPARK PLUG (BKR8E-11) (NGK) | (Optional).

98079-5814E

$2.13

SPARK PLUG (K24PR-U11) (DENSO) | (Optional).

98079-5815E

$6.18

RECEIVER, DECOMPRESSION CABLE

12324-MBN-670

Unavailable

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.17

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

BOLT, FLANGE (6X60) (NSHF)

90004-GHB-750

$3.87

WASHER, SEALING (6MM)

90441-706-000

$1.07

WASHER, SEALING (8MM)

90442-028-000

$1.63

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

BOLT, RECESSED (5X32)

90005-MM4-000

$0.99
