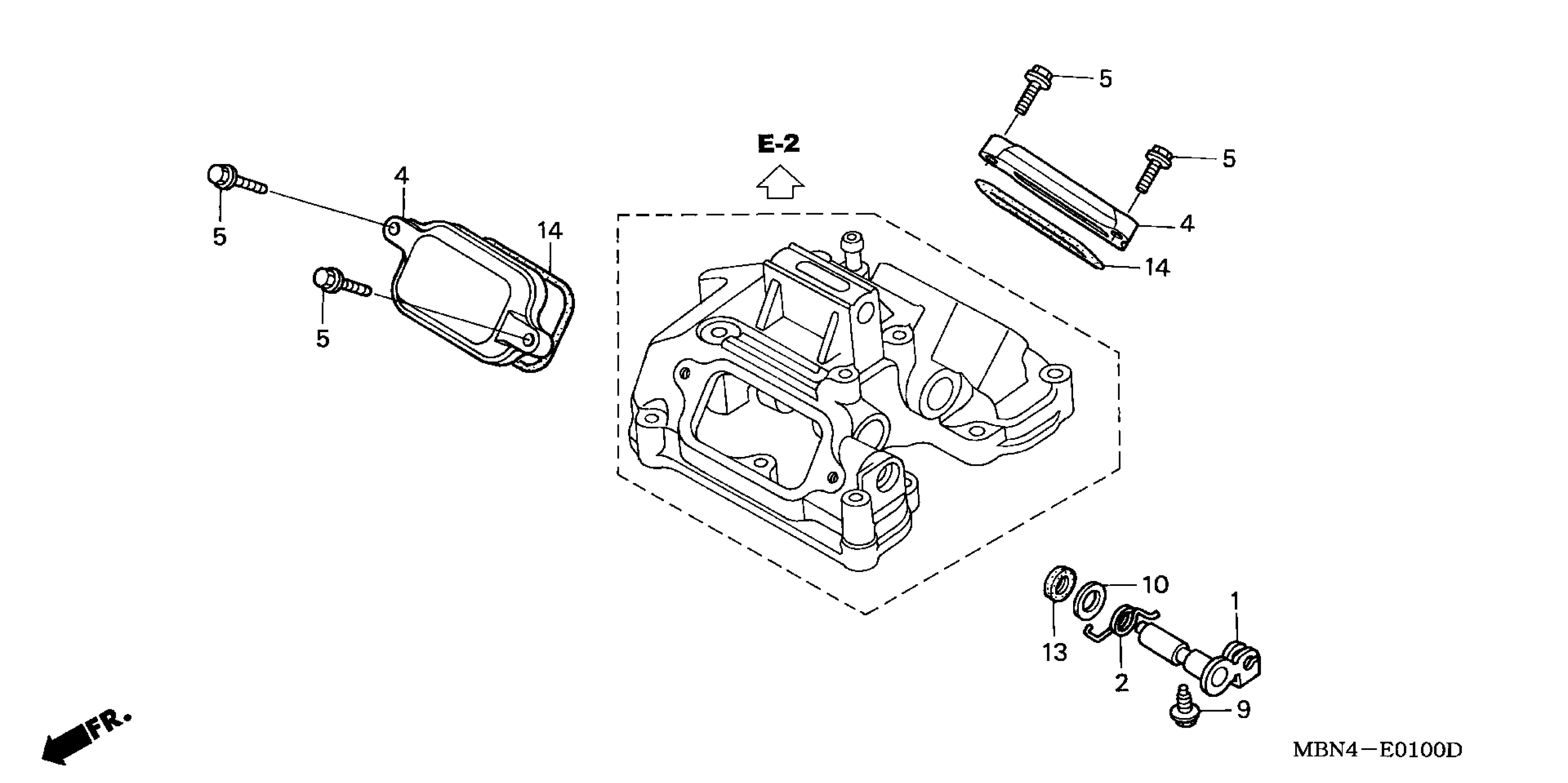

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 CYLINDER HEAD COVER Diagram

#

Description

Price

1

LIFTER, VALVE

12320-MBN-670

Unavailable

2

SPRING, VALVE LIFTER

12321-MBN-670

Unavailable

4

COVER, TAPPET ADJUSTING HOLE

12361-MBN-670

$27.01

5

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.81

9

BOLT, FLANGE (6X17)

90081-HC4-000

Unavailable

10

WASHER, THRUST (11X20X1)

90408-KCY-670

$2.66

13

OIL SEAL (11X16X5) (ARAI)

91202-MG3-003

$4.88

14

O-RING (66MM)

91351-881-000

$4.25
