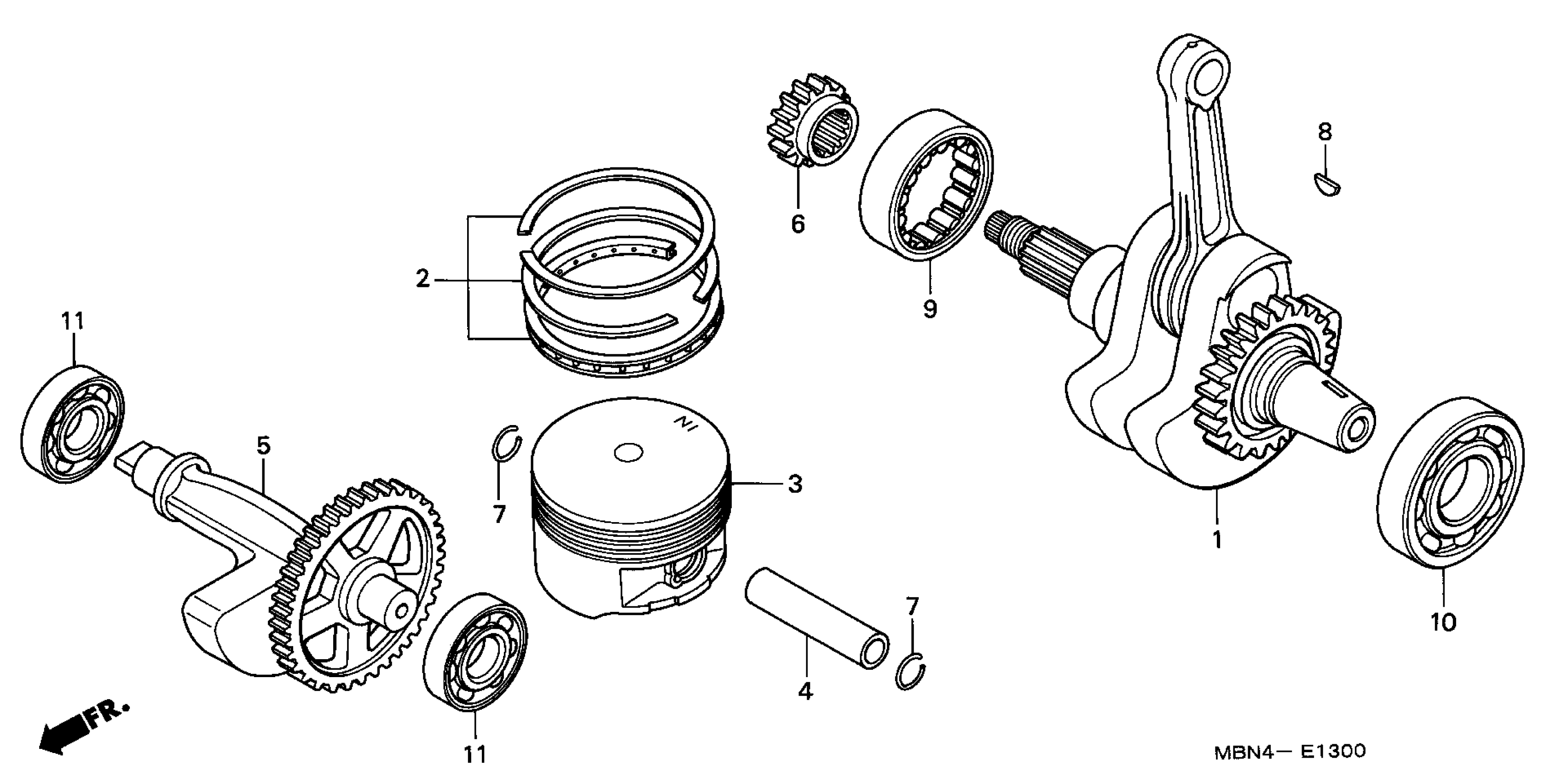

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-MBN-670

$837.66

RING SET, PISTON (STD) (RIKEN)

13011-MBN-305

$67.35

PISTON

13101-MBN-670

$153.85

PIN, PISTON

13111-HN8-A60

$19.40

PIN, PISTON This part replaces 13111-MBN-670.

13111-HN8-A60

$19.40

SHAFT, BALANCER

13420-MBN-670

$246.01

SPROCKET, TIMING (38T)

14312-MAN-620

$36.06

CLIP, PISTON PIN (23MM)

90602-MBN-670

$1.34

KEY, SPECIAL WOODRUFF (25X18)

90701-KAS-900

$5.34

BEARING, ROLLER

91001-MBN-671

$38.78

BEARING, RADIAL BALL (6308) (TOYO)

91002-MN9-003

$82.54

BEARING, RADIAL BALL (16X44X13) (TOYO)

91005-MK4-701

$26.70
