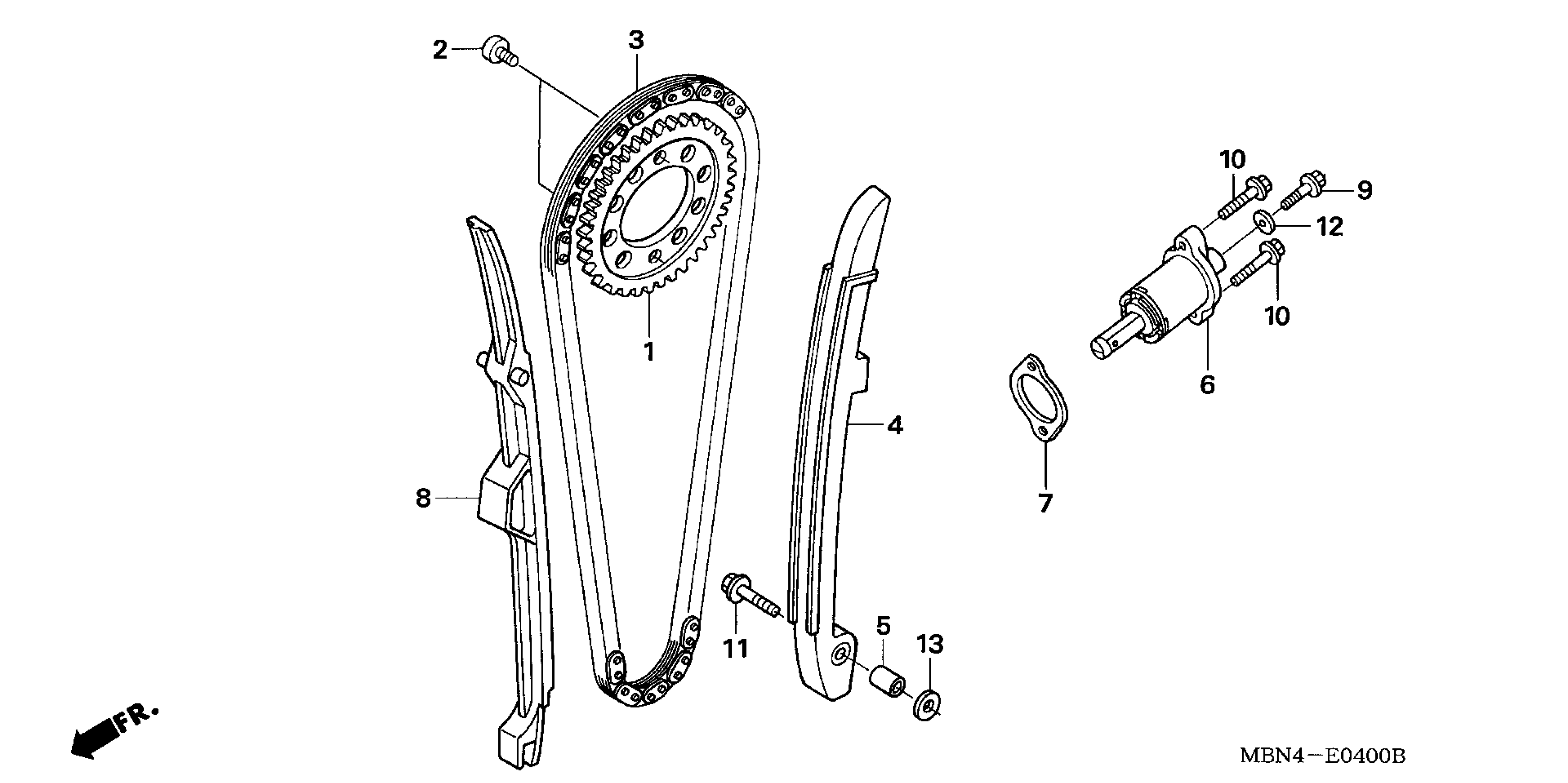

Honda XR650RA (07) MOTORCYCLE, JPN, VIN# JH2RE010-7K800001 CAM CHAIN + TENSIONER Diagram

#

Description

Price

1

SPROCKET, CAM (38T)

14321-MBN-670

$42.10

2

BOLT, SPECIAL KNOCK (7X9.5)

14322-MAN-620

$8.58

3

CHAIN, CAM (122L) (BORG WARNER)

14401-MBN-671

$79.32

4

TENSIONER, CAM CHAIN

14511-MBN-670

$80.78

5

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.53

6

LIFTER, TENSIONER

14500-MAZ-000

$100.35

7

GASKET, TENSIONER LIFTER

14560-KCW-851

$4.83

8

GUIDE, CAM CHAIN

14620-MBN-671

$54.01

9

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95

10

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

11

BOLT, FLANGE (6X25)

90088-MK4-600

Unavailable

12

WASHER, SEALING (6MM)

90442-397-000

$2.60

13

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.72

13

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.72

13

WASHER (18MM)

90581-831-650

$1.72
