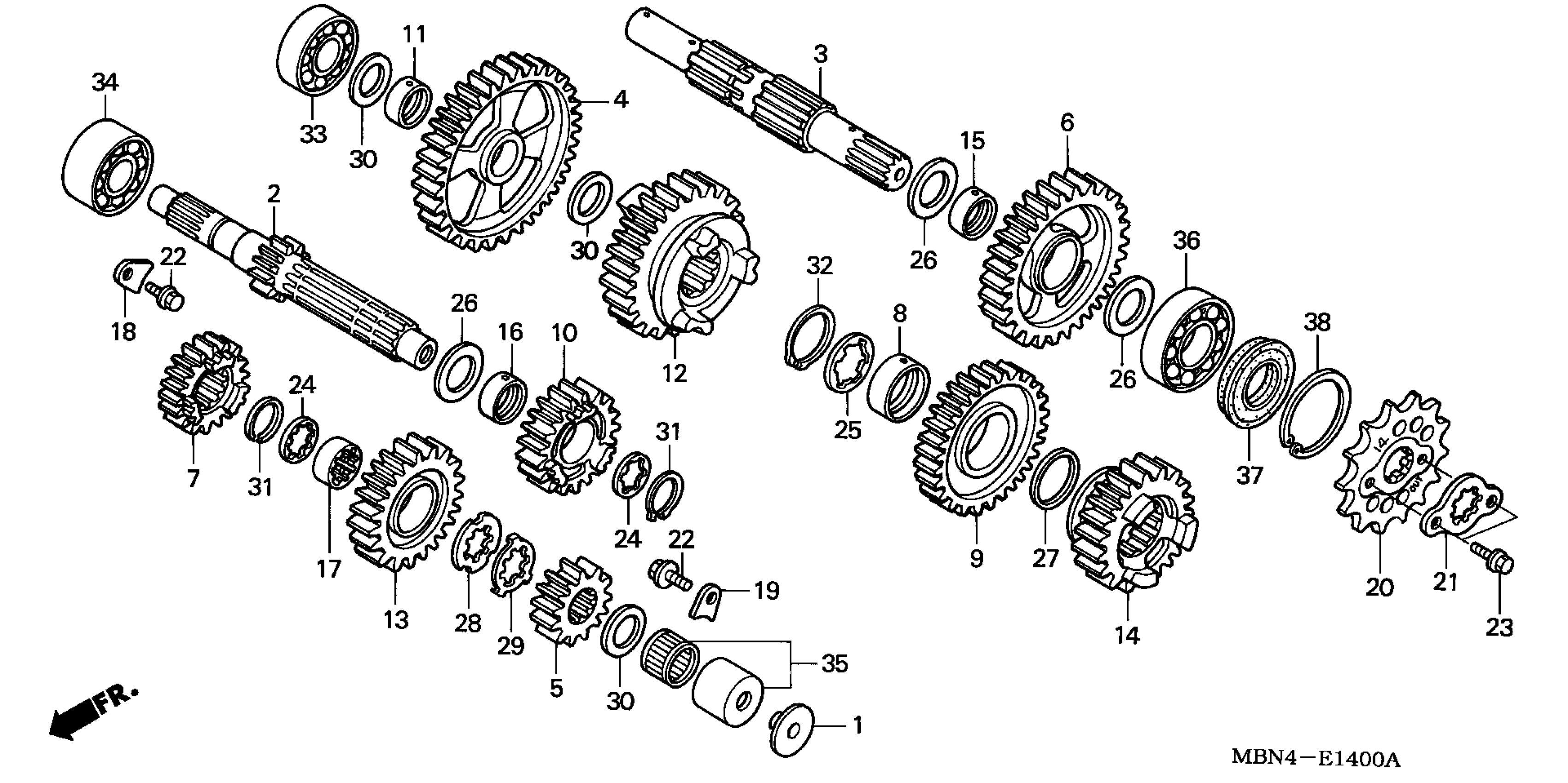

Honda XR650RA (06) MOTORCYCLE, JPN, VIN# JH2RE010-6K700001 TO JH2RE010-6K799999 TRANSMISSION Diagram

#

Description
Price

1

GUIDE, LIFTER ROD

15171-KN8-000

$14.89

2

MAINSHAFT (12T)

23211-MBN-670

Unavailable

3

COUNTERSHAFT

23220-MBN-671

Unavailable

4

GEAR, COUNTERSHAFT LOW (37T)

23411-MBN-670

Unavailable

5

GEAR, MAINSHAFT SECOND (16T)

23421-MBN-670

Unavailable

6

GEAR, COUNTERSHAFT SECOND (34T)

23431-MBN-670

$111.56

7

GEAR, MAINSHAFT THIRD (18T)

23441-MBN-670

Unavailable

8

BUSH (28X31X10)

23442-MR5-670

$24.44

9

GEAR, COUNTERSHAFT THIRD (30T)

23451-MBN-670

$111.56

10

GEAR, MAINSHAFT FOURTH (21T)

23461-MBN-670

$126.64

11

BUSH (20MM)

23462-HB3-000

$19.64

12

GEAR, COUNTERSHAFT FOURTH (28T)

23471-MBN-671

Unavailable

13

GEAR, MAINSHAFT FIFTH (26T)

23481-MBN-670

$115.43

14

GEAR, COUNTERSHAFT FIFTH (29T)

23491-MBN-671

Unavailable

15

COLLAR (25X28X9.5)

23495-KV3-700

Unavailable

16

COLLAR (25X12)

23495-MB0-000

$26.23

17

COLLAR, SPLINE (25X12.4)

23512-KY2-000

Unavailable

18

PLATE A, BEARING SETTING

23521-MBN-670

$5.77

19

PLATE B, BEARING SETTING

23531-MBN-670

$3.57

20

SPROCKET, DRIVE (14T)

23801-MBN-670

$53.07

21

PLATE, FIXING

23811-MN8-000

$11.75

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

23

BOLT, FLANGE

90118-958-003

$3.24

24

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

25

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

26

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

27

WASHER, THRUST (28MM)

90458-729-920

$5.34

28

WASHER, SPLINE (25MM)

90461-KY2-000

$5.34

29

WASHER, LOCK (25MM)

90462-KAZ-000

$9.31

30

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.80

31

CIRCLIP (25MM)

90601-107-000

$3.74

32

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

32

CIRCLIP (28MM)

90603-MN4-000

$4.11

33

BEARING, SPECIAL RADIAL BALL (6204) (NTN)

91001-GM4-033

$27.94

34

BEARING, BALL (5205A)

91003-MBN-671

$35.83

35

BEARING, NEEDLE (20MM)

91022-MG2-791

$46.80

36

BEARING, BALL (6305)

91024-MBN-671

$35.92

37

OIL SEAL (25X36X5)

91205-MBN-672

$6.98

38

CIRCLIP (INNER) (40MM)

94524-40100

$2.28
