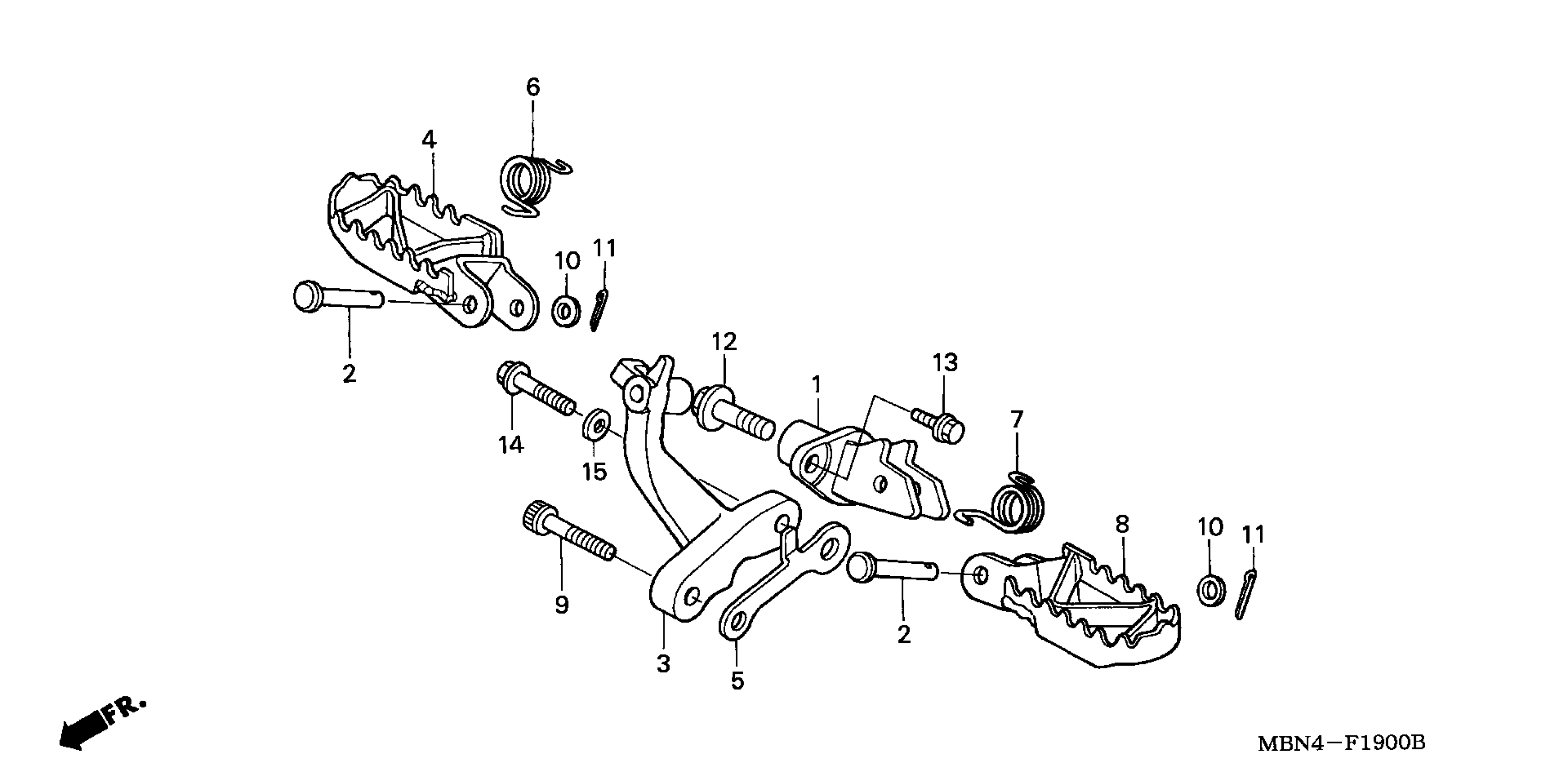

Honda XR650RA (06) MOTORCYCLE, JPN, VIN# JH2RE010-6K700001 TO JH2RE010-6K799999 STEP Diagram

BRACKET, L. STEP

50152-MBN-670

Unavailable

PIN, STEP BAR JOINT

50603-033-010

$2.98

BRACKET, R. STEP *NH146M* (ACCURATE SILVER METALLIC)

50615-MBN-670ZA

Unavailable

STEP, R.

50616-KAE-730

Unavailable

PLATE, R. STEP SETTING

50616-MBN-670

$7.74

SPRING, R. STEP RETURN

50617-MN1-671

$4.77

SPRING, L. STEP RETURN

50618-MBN-670

$5.36

STEP, L.

50642-KAE-730

Unavailable

BOLT, SOCKET (10X45)

90181-MN0-000

$4.48

WASHER, PLAIN (8MM)

94102-08000

$0.86

PIN, SPLIT (2.0X15)

94201-20150

$0.94

BOLT, FLANGE (10X22)

95701-10022-00

$1.68

BOLT, FLANGE (10X22) This part replaces 95801-10022-00.

95701-10022-00

$1.68

BOLT, FLANGE (6X14)

96001-06014-02

$1.35

BOLT, FLANGE (10X40) This part replaces 90211-KF0-770.

90211-KT0-770

$4.59

BOLT, FLANGE (10X40)

90211-KT0-770

$4.59

WASHER (12.5X20)

90528-023-000

$2.39
