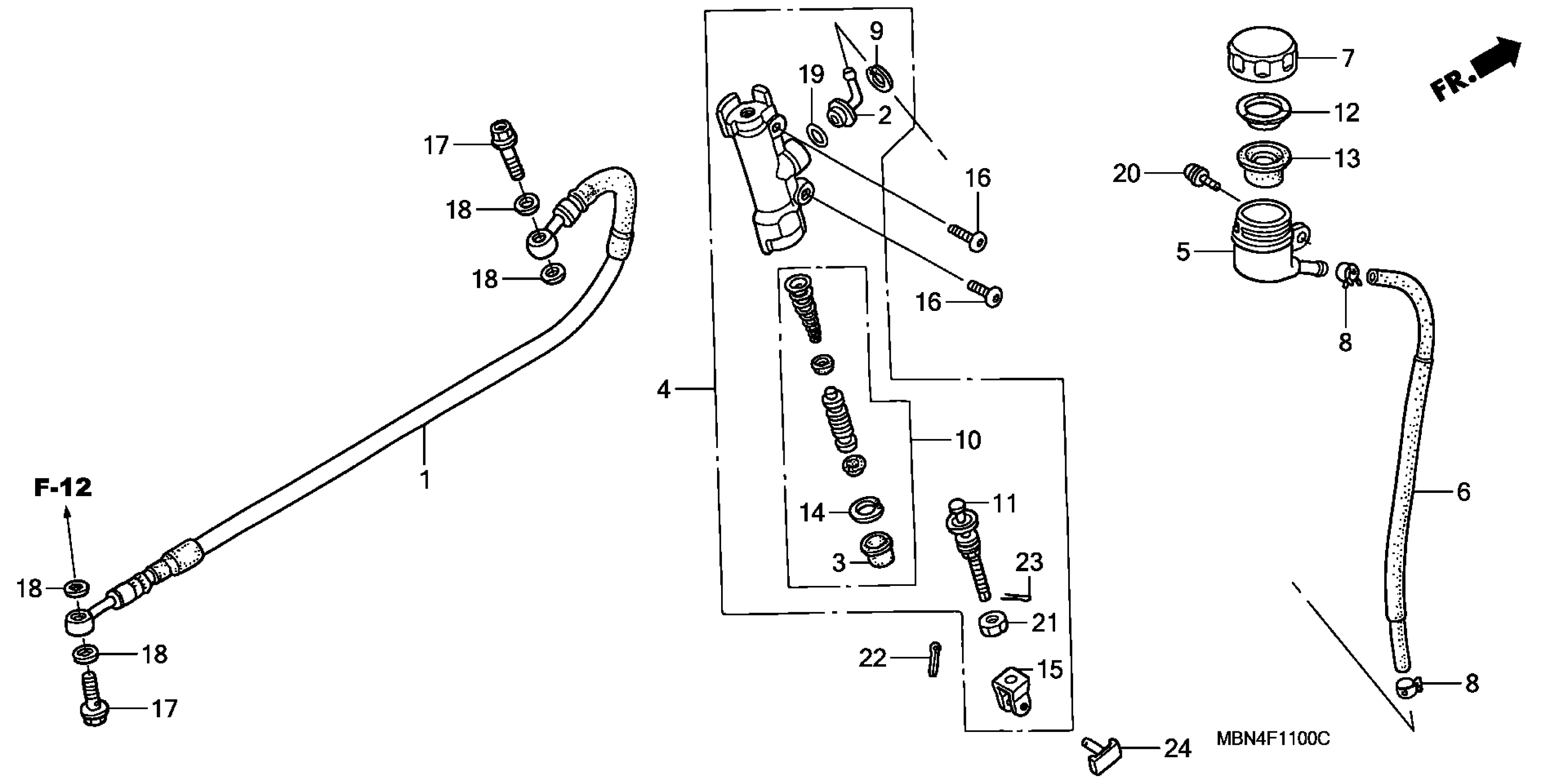

Honda XR650RA (06) MOTORCYCLE, JPN, VIN# JH2RE010-6K700001 TO JH2RE010-6K799999 REAR BRAKE + MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-MBN-671

Unavailable

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$10.26

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. This part replaces 43510-MBN-671.

43510-MBN-672

Unavailable

MASTER CYLINDER SUB-ASSY., RR.

43510-MBN-672

Unavailable

CUP, MASTER CYLINDER OIL

43511-KS6-702

$25.90

HOSE, MASTER CYLINDER (NISSIN)

43512-KBA-921

Unavailable

CAP, MASTER CYLINDER

43513-KS6-701

$14.57

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

PISTON SET, MASTER CYLINDER

43520-MJ6-315

$46.73

ROD, PUSH

43530-MV9-006

$35.31

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

DIAPHRAGM

45520-GM9-711

$9.15

CIRCLIP

46182-500-013

$4.90

JOINT, BRAKE ROD

46504-MT8-006

$9.05

BOLT, FR. DISK COVER

90114-MAC-780

$3.10

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (6X14)

93891-06014-08

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

PIN, SPRING (2X10)

94305-20102

$1.49

PIN D, JOINT

95015-54000

$4.24
